C2316618 Cable gland M16x0.059

C2316618

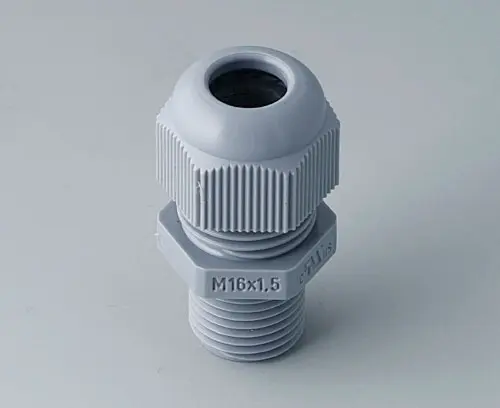

Cable gland M16x0.059"

Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 0.197" - 0.394". Thread length 0.591".

Supply

1 cable gland

  • Components/Accessories

Accessory

C2316117 Counternut M16x0.059"

C2316117

Counternut M16x0.059" For fixing the cable gland on the housing.

Supply 1 counternut

Close

C2316117

Counternut M16x0.059"
product added to your basket
PA
light gray RAL 7035
C2316126 Sealing ring for external thread M16x0.059"

C2316126

Sealing ring for external thread M16x0.059" Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Close

C2316126

Sealing ring for external thread M16x0.059"
product added to your basket
PE
natural-colored
  • Technical Data
  • Purchasing Data
Material
Protection class
Color
silver gray RAL 7001
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
