C2320147
Scroll

C2320147

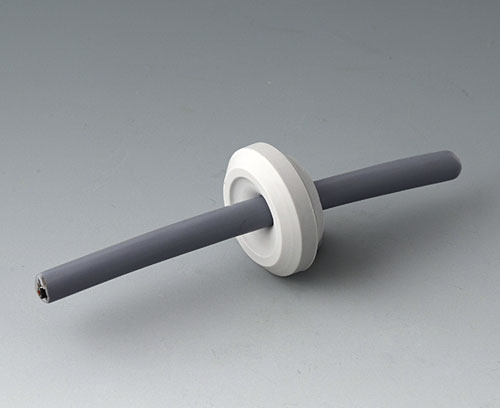

Cable grommet

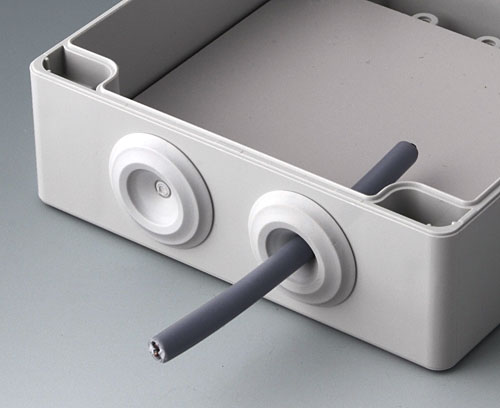

Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.020" - 0.118" and for cable diameters from 0.236" - 0.512". Operating temperatures from -40°C to +100°C. Borehole ø 0.807".

Supply

1 cable grommet

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for C2320147

Please select the product details you would like to include in the PDF.

Close
  • To be used for
C3010101 SNAPTEC 3.937" x 3.937"

C3010101

SNAPTEC 3.937" x 3.937" Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-molded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

Close

C3010101

SNAPTEC 3.937" x 3.937"
product added to your basket
ABS (UL 94 HB)
light gray RAL 7035
3.94″x3.94″x3.15″
IP 65
C6011141 SMART-BOX WIDTH 4.331"

C6011141

SMART-BOX WIDTH 4.331" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6011141

SMART-BOX WIDTH 4.331"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
5.51″x4.33″x2.36″
IP 66
C6011201 SMART-BOX WIDTH 4.331"

C6011201

SMART-BOX WIDTH 4.331" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6011201

SMART-BOX WIDTH 4.331"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
7.87″x4.33″x2.36″
IP 66
C6013161 SMART-BOX WIDTH 5.118"

C6013161

SMART-BOX WIDTH 5.118" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6013161

SMART-BOX WIDTH 5.118"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
6.30″x5.12″x2.36″
IP 66
C6013221 SMART-BOX WIDTH 5.118"

C6013221

SMART-BOX WIDTH 5.118" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6013221

SMART-BOX WIDTH 5.118"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
8.66″x5.12″x2.36″
IP 66
C6015181 SMART-BOX WIDTH 5.906"

C6015181

SMART-BOX WIDTH 5.906" Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention

Close

C6015181

SMART-BOX WIDTH 5.906"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
7.09″x5.91″x2.36″
IP 66
C6017281 SMART-BOX WIDTH 6.693"

C6017281

SMART-BOX WIDTH 6.693" Four-part enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Close

C6017281

SMART-BOX WIDTH 6.693"
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
11.02″x6.69″x2.36″
IP 65
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
TPE
Protection class
IP 67
Color
light gray RAL 7035
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
