C2320719 Quick fix cable gland, M20
Scroll

C2320719

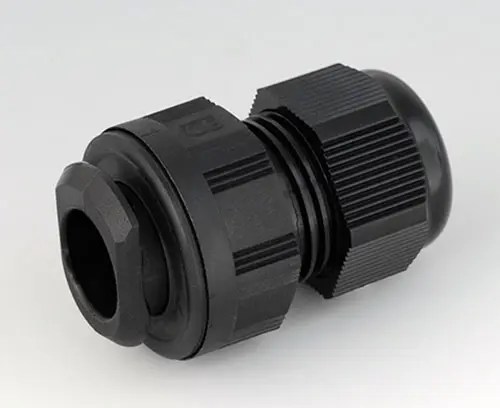

Quick fix cable gland, M20

Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and center it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimeters and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 0.039" to 0.157" with a through hole in accordance with DIN 50262. Clamp ranges: diameter 0.315" - 0.512".

Supply

1 cable gland

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for C2320719

Please select the product details you would like to include in the PDF.

Close
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA
Protection class
IP 68
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
12 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
