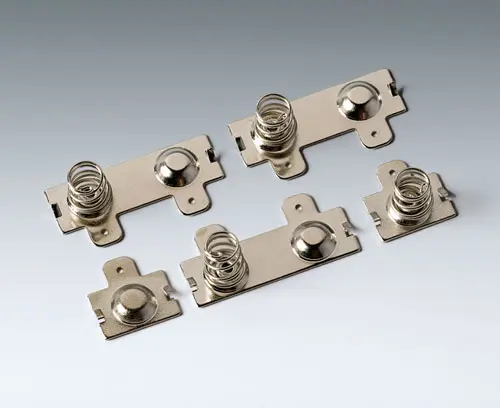

A9190013 Set of battery clips, 4 x AA
Scroll

A9190013

Set of battery clips, 4 x AA

For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply

1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9190013

Please select the product details you would like to include in the PDF.

Close
  • To be used for

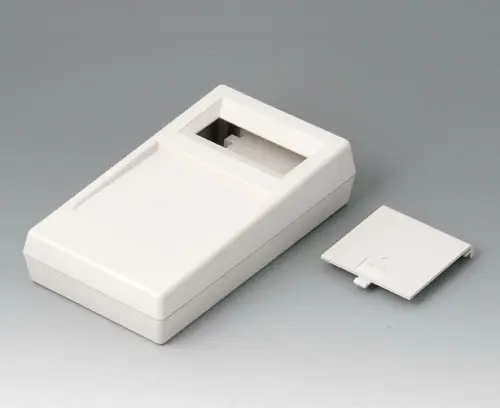

A9061017 HAND-HELD-BOX N, Vers. I

A9061017

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

Close

A9061017

HAND-HELD-BOX N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
7.09″x3.94″x1.73″

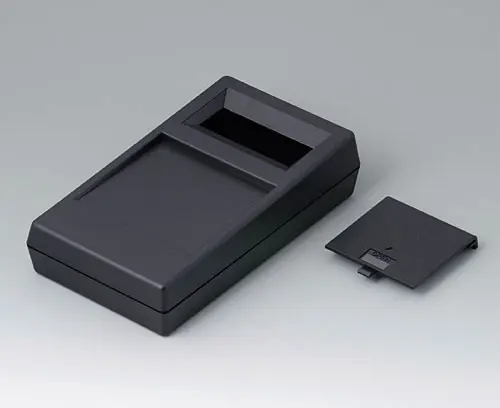

A9061019 HAND-HELD-BOX N, Vers. I

A9061019

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

Close

A9061019

HAND-HELD-BOX N, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
7.09″x3.94″x1.73″

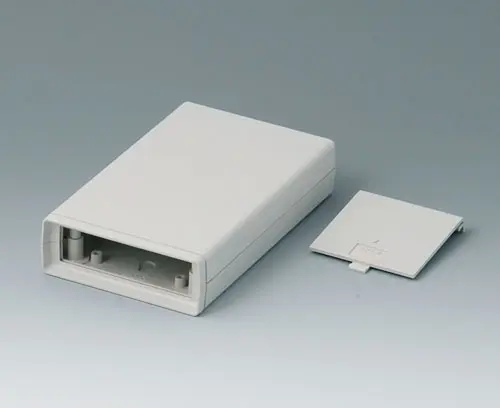

A9408638 SHELL-TYPE CASES V 155, Vers. V

A9408638

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408638

SHELL-TYPE CASES V 155, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.30″

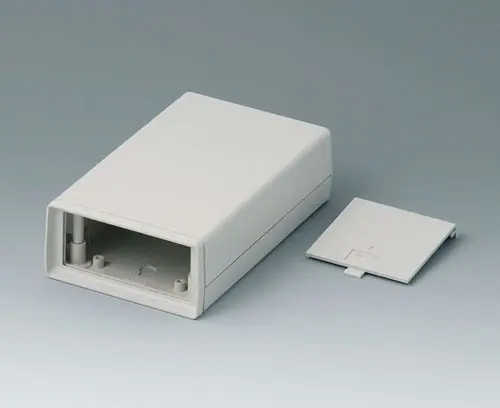

A9408648 SHELL-TYPE CASES V 155, Vers. V

A9408648

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408648

SHELL-TYPE CASES V 155, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.77″
A9408737 SHELL-TYPE CASES G 155, Vers. V

A9408737

SHELL-TYPE CASES G 155, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408737

SHELL-TYPE CASES G 155, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.30″

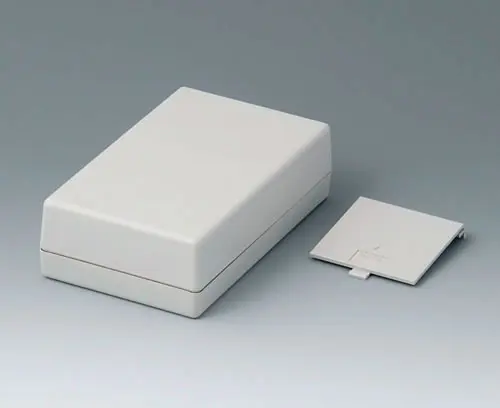

A9408747 SHELL-TYPE CASES G 155, Vers. V

A9408747

SHELL-TYPE CASES G 155, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408747

SHELL-TYPE CASES G 155, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.77″

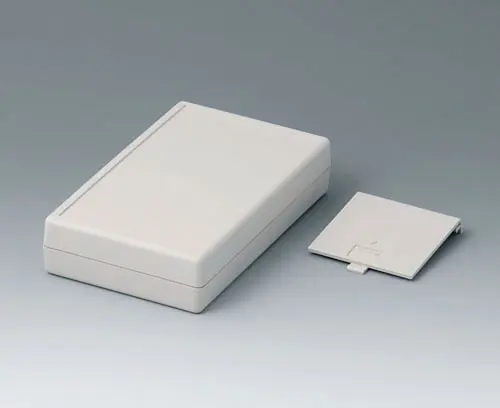

A9408757 SHELL-TYPE CASES G 155, Vers. V

A9408757

SHELL-TYPE CASES G 155, Vers. V Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408757

SHELL-TYPE CASES G 155, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.32″
A9413638 SHELL-TYPE CASES V 190, Vers. V

A9413638

SHELL-TYPE CASES V 190, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9413638

SHELL-TYPE CASES V 190, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x1.77″
A9413648 SHELL-TYPE CASES V 190, Vers. V

A9413648

SHELL-TYPE CASES V 190, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9413648

SHELL-TYPE CASES V 190, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x2.68″

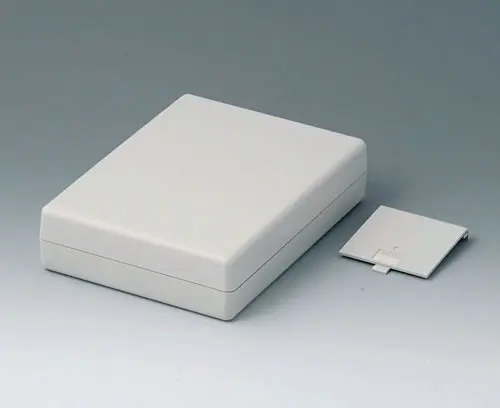

A9413737 SHELL-TYPE CASES G 190, Vers. V

A9413737

SHELL-TYPE CASES G 190, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9413737

SHELL-TYPE CASES G 190, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x1.77″

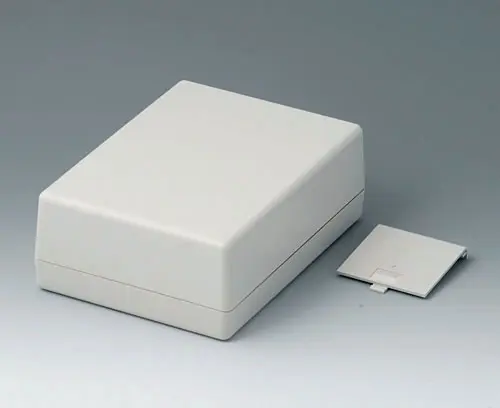

A9413747 SHELL-TYPE CASES G 190, Vers. V

A9413747

SHELL-TYPE CASES G 190, Vers. V Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9413747

SHELL-TYPE CASES G 190, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x2.68″

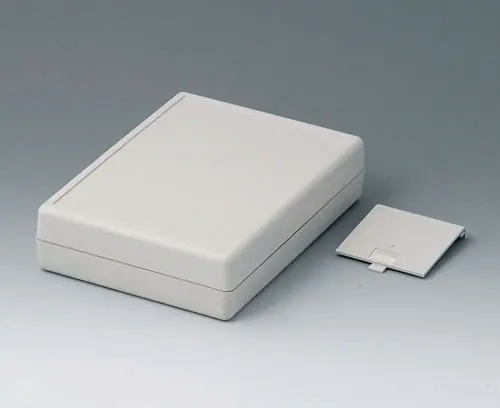

A9413757 SHELL-TYPE CASES G 190, Vers. V

A9413757

SHELL-TYPE CASES G 190, Vers. V Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9413757

SHELL-TYPE CASES G 190, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.43″x7.48″x1.79″
  • Technical Data
  • Purchasing Data
Material
Steel
Color
nickel-plated
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
73201090
Country of manufacture
U.S.A.
