B6608222 Plug header, block 5.08 mm
Scroll

B6608222

Plug header, block 5.08 mm

Male terminal block, 5.08 mm. 6-pin.

Supply

1 piece

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6608222

Please select the product details you would like to include in the PDF.

Close
  • To be used for
B6501121 RAILTEC B, 2 modules, Vers. VI

B6501121

RAILTEC B, 2 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6501121

RAILTEC B, 2 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
1.38″x3.54″x2.28″
B6503121 RAILTEC B, 4 modules, Vers. VI

B6503121

RAILTEC B, 4 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6503121

RAILTEC B, 4 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
2.76″x3.54″x2.28″

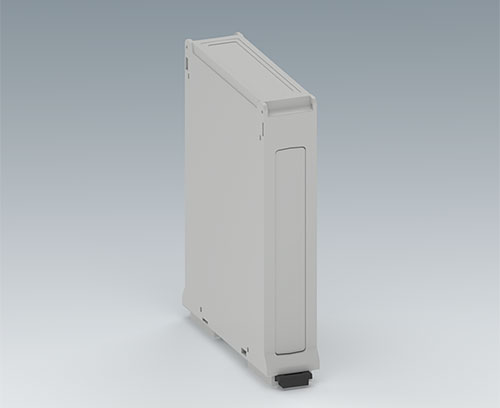

B6522101 RAILTEC BP, M22, with closed side panels

B6522101

RAILTEC BP, M22, with closed side panels DIN rail enclosure with pluggable side panels and front panel. Connection options on three sides. For plug headers max. 2 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version with closed side panels

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 closed side panels, 1 front panel, 2 locking clips)

Close

B6522101

RAILTEC BP, M22, with closed side panels
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
3.74″x0.91″x4.45″

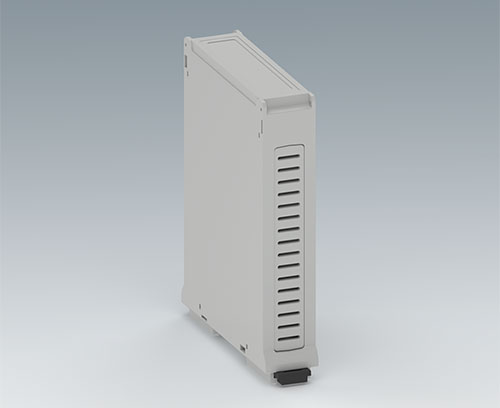

B6522102 RAILTEC BP, M22, closed/with ventilation slots

B6522102

RAILTEC BP, M22, closed/with ventilation slots DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 1 side panel closed, 1 side panel with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)

Close

B6522102

RAILTEC BP, M22, closed/with ventilation slots
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
3.74″x0.91″x4.45″
B6522103 RAILTEC BP, M22, with ventilation slots

B6522103

RAILTEC BP, M22, with ventilation slots DIN rail enclosure with 2 pluggable side panels with ventilation slots for increased heat dissipation and front panel. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version 2 side panels with ventilation slots

Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 side panels with ventilation slots, 1 front panel, 2 locking clips)

Close

B6522103

RAILTEC BP, M22, with ventilation slots
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
3.74″x0.91″x4.45″
  • Technical Data
  • 3D-Models & Drawings / Info
  • Purchasing Data
Material
PA 68 (UL 94 V-0)
Standards
RoHS compliant
REACH compliant
Pitch
5.08 mm
Poles
6
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
1 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
