B6801650 Terminal block, block 5.08 mm
Scroll

B6801650

Terminal block, block 5.08 mm

PCB terminal block, 5.08 mm. 6-pin.

Supply

1 piece

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6801650

Please select the product details you would like to include in the PDF.

Close
  • To be used for
B6701100 RAILTEC C, 2 modules, Vers. I

B6701100

RAILTEC C, 2 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH 35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Close

B6701100

RAILTEC C, 2 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
1.42″x3.54″x2.28″
B6701102 RAILTEC C, 2 modules, Vers. II

B6701102

RAILTEC C, 2 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Close

B6701102

RAILTEC C, 2 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray
1.42″x3.54″x2.28″

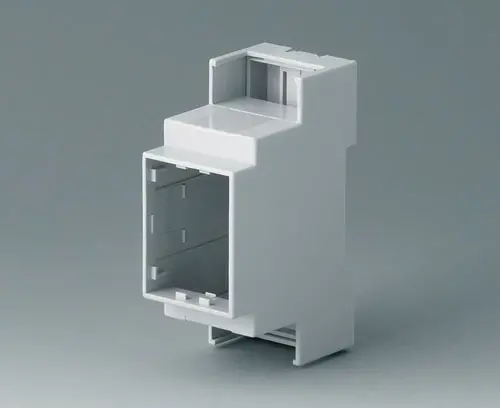

B6701104 RAILTEC C, 2 modules, Vers. III

B6701104

RAILTEC C, 2 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

Close

B6701104

RAILTEC C, 2 modules, Vers. III
product added to your basket
PC (UL 94 V-0)
light gray
1.42″x3.54″x2.28″
B6701106 RAILTEC C, 2 modules, Vers. IV

B6701106

RAILTEC C, 2 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Close

B6701106

RAILTEC C, 2 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
1.42″x3.54″x2.28″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA 68 (UL 94 V-0)
Color
light gray
Standards
RoHS compliant
REACH compliant
Pitch
5.08 mm
Poles
6
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
