B6121221 Front panel
Scroll

B6121221

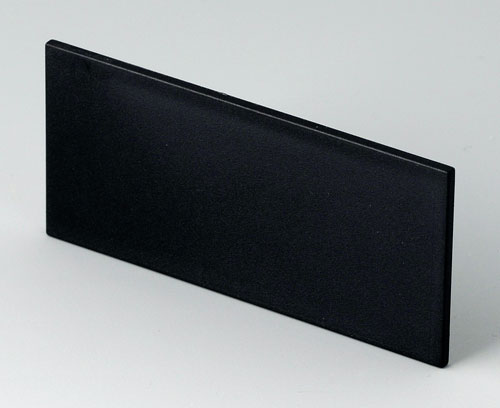

Front panel

Front panel for DIN-MODULAR CASE 2.835" x 1.417".

Supply

1 front panel

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6121221

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customizing Options
B6021011 DIN-MODULAR CASE TYPE A

B6021011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6021011

DIN-MODULAR CASE TYPE A
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
2.83″x1.42″x2.24″
B6021021 DIN-MODULAR CASE TYPE A

B6021021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61 554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6021021

DIN-MODULAR CASE TYPE A
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
2.83″x1.42″x2.95″
B6021031 DIN-MODULAR CASE TYPE A

B6021031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6021031

DIN-MODULAR CASE TYPE A
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
2.83″x1.42″x3.94″

Customizing options for B6121221

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
PPO (UL 94 V-0)
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
Width
2.669″
67.8 mm
Height
1.248″
31.7 mm
Thickness
0.079″
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
