A9006207
DATEC-COMPACT M

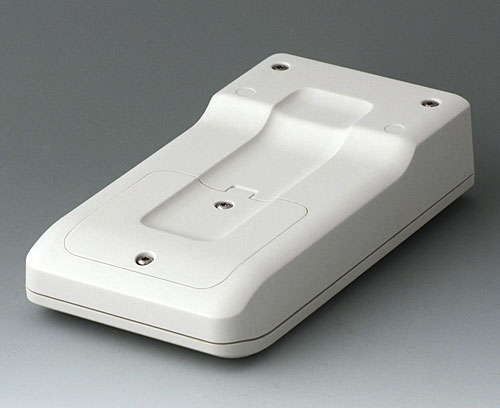

3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and center of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

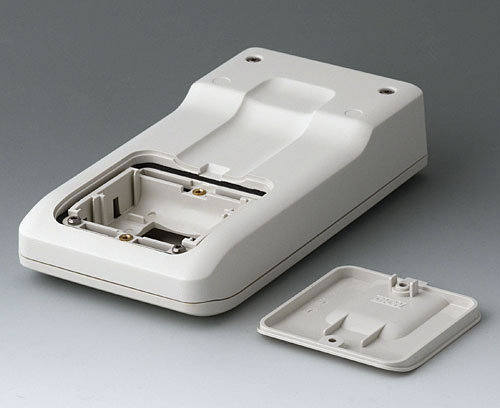

VersionWith battery compartment 3 x AA
SupplyTop and bottom part, battery compartment lid, assembly kit
Generate Your PDF Datasheet for A9006207
Please select the product details you would like to include in the PDF.
CloseAccessory "battery"
A9190023
Supply 2 double contacts right, 1 single contact positive, 1 single contact negative
CloseA9190023
Set of battery clips, 3 x AAnickel-plated
Accessory "station"
A9106507
Supply Station with bottom panel, rubber feet, assembly kit
CloseA9106507
Station Moff-white RAL 9002
A9193031
Supply 1 spring contact
CloseA9193031
Spring contactAccessory "wall/holder"
A9106627
Supply 1 holder
CloseA9106627
Holder Moff-white RAL 9002
Accessory "screws"
A0305031
Supply 1 self-tapping screw
CloseA0305031
Self-tapping screws 0.098" x 0.236" (PZ1)A0325060
Supply 1 self-tapping screw
CloseA0325060
Self-tapping screw 0.098" x 0.236" (T8)A0399T08
Supply 1 screwdriver
CloseA0399T08
Torx T8 screwdriverA0399T10
Supply 1 screwdriver
CloseA0399T10
Torx T10 screwdriverAccessory
A9193030
Supply 1 contact pin
CloseA9193030
Contact pinA9207150
Supply 2 rubber feet
CloseA9207150
Anti-slide feet 0.256" x 0.079"Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)
- PDF-File (without registration) 334 KB
- AutoCAD DWG-File 694 KB
- AutoCAD DXF-File 2,586 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view...) 923 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)
- 00015414.x_t 10,009 KB
- 00015414.step 17,966 KB
- 00015414.sat 17,872 KB
(OKW product)
