A9107628 Holder L
Scroll

A9107628

Holder L

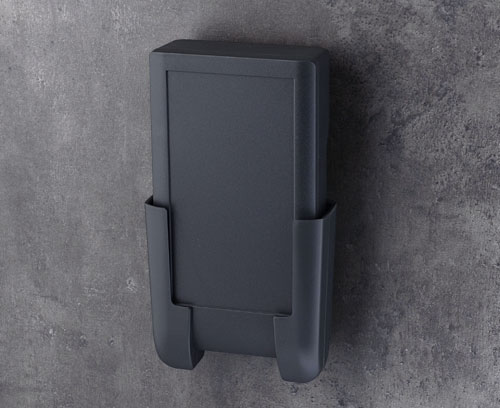

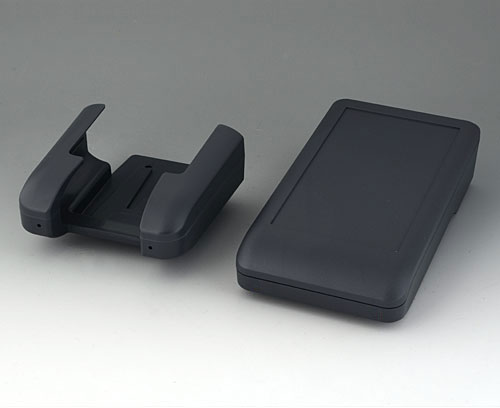

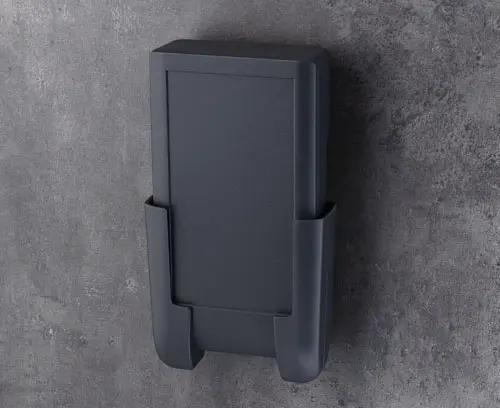

Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 0.217" to 0.276".

Supply

1 holder

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9107628

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customizing Options
A9007108 DATEC-COMPACT L

A9007108

DATEC-COMPACT L 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9007108

DATEC-COMPACT L
product added to your basket
ASA+PC (UL 94 V-0)
lava
8.11″x4.33″x1.85″
IP 65
A9007118 DATEC-COMPACT L

A9007118

DATEC-COMPACT L 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9007118

DATEC-COMPACT L
product added to your basket
ASA+PC (UL 94 V-0)
lava
8.11″x4.33″x1.85″
IP 41
A9007208 DATEC-COMPACT L

A9007208

DATEC-COMPACT L 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and center of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9007208

DATEC-COMPACT L
product added to your basket
ASA+PC (UL 94 V-0)
lava
8.11″x4.33″x1.85″
IP 65
A9007218 DATEC-COMPACT L

A9007218

DATEC-COMPACT L 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and center of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9007218

DATEC-COMPACT L
product added to your basket
ASA+PC (UL 94 V-0)
lava
8.11″x4.33″x1.85″
IP 41

Customizing options for A9107628

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Color
lava
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
110 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
