A9075119 DATEC-MOBIL-BOX L, Vers. I
Scroll

A9075119

DATEC-MOBIL-BOX L, Vers. I

Hand-held box with wide range of applications without battery compartment. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Sealing for IP 65 as accessory.

Version

Top with closed operating area, recessed by 2.2 mm

Supply

Case-top and base, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9075119

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "protection"

A9175001 Sealing kit L

A9175001

Sealing kit L Application: for increasing the protection class, of DATEC-MOBIL-BOX L.

Supply 2 sealings, 4 sealings rings

Close

A9175001

Sealing kit L
product added to your basket
A9175108 Protector L

A9175108

Protector L Special protector for DATEC-MOBIL-BOX L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Close

A9175108

Protector L
product added to your basket
SBS (TPE)
volcano

Accessory "wall/holder"

A9226129 Wall suspension element

A9226129

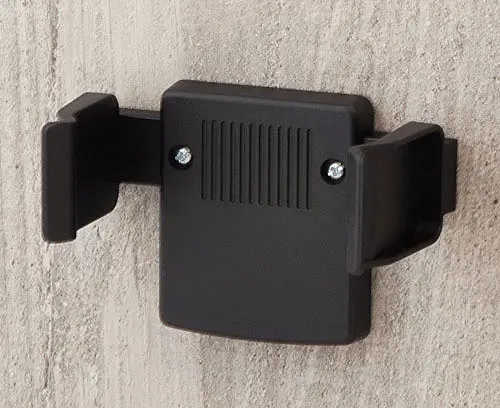

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226129

Wall suspension element
product added to your basket
ABS (UL 94 HB)
black RAL 9005

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket
A0308031 Self-tapping screws 0.118" x 0.315" (PZ1)

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1)
product added to your basket
A0308132 Self-tapping screw 0.118" x 0.315" (T10)

A0308132

Self-tapping screw 0.118" x 0.315" (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 0.118" x 0.315" (T10)
product added to your basket
Stainless steel

Accessory

A9250909 Tilt foot bar

A9250909

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 0.787", 2 x diameter = 0.165"). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250909

Tilt foot bar
product added to your basket
ABS (UL 94 HB)
black RAL 9005

Customizing options for A9075119

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 65 opt.
Necessary accessories: sealing kit
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
9.921″
252 mm
Width
4.764″
121 mm
Height
1.969″
50 mm
PCB length, base
9.331″
237 mm
PCB width, base
4.252″
108 mm
PCB length, top
9.488″
241 mm
PCB width, top
4.331″
110 mm
Keypad length
8.610″
218.7 mm
Keypad width
3.965″
100.7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
276 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
