A9095107 DIATEC L
Scroll

A9095107

DIATEC L

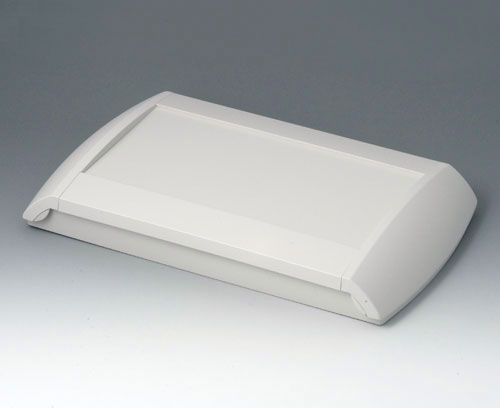

Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorized access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply

Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9095107

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V

A9160003

Plug-in contact, 1 x 9 V Version: Lateral cable exit. Cable length approx. 3.937". Diameter of contacts = 0.224"/0.209".
Application: for a 9 V flat battery.

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V
product added to your basket
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Close

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
product added to your basket
Steel
tin-plated

Accessory "protection"

A9193121 Hinged lid S, L

A9193121

Hinged lid S, L Hinged lid for covering the dialog zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 0.165" necessary.

Supply 1 hinged lid, assembly kit

Close

A9193121

Hinged lid S, L
product added to your basket
PC (UL 94 V-0)
translucent
A9193127 Hinged lid S, L

A9193127

Hinged lid S, L Hinged lid for covering the dialog zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 0.165" necessary.

Supply 1 hinged lid, assembly kit

Close

A9193127

Hinged lid S, L
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9193131 Hinged lid S, L

A9193131

Hinged lid S, L Hinged lid for covering the dialog zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 0.165" necessary.

Supply 1 hinged lid, assembly kit

Close

A9193131

Hinged lid S, L
product added to your basket
PC (UL 94 V-0)
clear
A9194007 Slot-in panel

A9194007

Slot-in panel The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply 1 slot-in panel

Close

A9194007

Slot-in panel
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
6.14″x1.18″x0.12″

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket

Accessory

A9212330 Anti-slide feet 0.472" x 0.138"

A9212330

Anti-slide feet 0.472" x 0.138" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9212330

Anti-slide feet 0.472" x 0.138"
product added to your basket
transparent

Customizing options for A9095107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Application Examples
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 40
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
12.992″
330 mm
Height
1.890″
48 mm
Depth
7.874″
200 mm
PCB length, base
7.087″
180 mm
PCB width, base
9.449″
240 mm
PCB length, top
7.087″
180 mm
PCB width, top
9.449″
240 mm
Keypad length
5.047″
128.2 mm
Keypad width
9.425″
239.4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
510 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
