B7015209 ERGO-CASE M, high
Scroll

B7015209

ERGO-CASE M, high

Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version

With high top part

Supply

1 top and 1 bottom part, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B7015209

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "protection"

B7110005 Sealing M

B7110005

Sealing M Application: for increasing the protection class, of ERGO-CASE M.

Supply 1 sealing

Close

B7110005

Sealing M
product added to your basket
B7115108 Protector M, high

B7115108

Protector M, high Special protector for ERGO-CASE M, high. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Close

B7115108

Protector M, high
product added to your basket
TPE
volcano

Accessory "wall/holder"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178007

Contacts, male
product added to your basket
gold-plated
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 1.378", thickness 0.118". Easy to mount. In this case the premolded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Close

B7110028

Fastening elements L / M / S
product added to your basket
PA 6
volcano
B7110048 Wall suspension elements S / M

B7110048

Wall suspension elements S / M Special wall suspension element for the ERGO-CASE S/M for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).

Supply 2 wall suspension element, 1 securing clip, 1 screw

Close

B7110048

Wall suspension elements S / M
product added to your basket
PA 6
volcano

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 0.098", max. wall thickness 0.118", location hole ø 0.157" required.

Supply 1 ring eyelet

Close

A9100001

Ring eyelet
product added to your basket
PA 6
volcano
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 1.378", thickness 0.118". Easy to mount. In this case the premolded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Close

B7110028

Fastening elements L / M / S
product added to your basket
PA 6
volcano

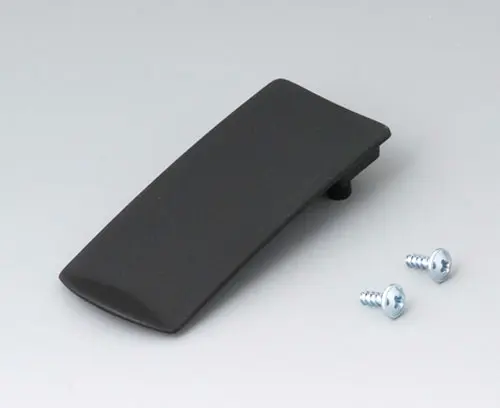

B7110109 Belt / pocket clip

B7110109

Belt / pocket clip Special clip for ERGO-CASE S & M. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply 1 clip, assembly kit

Close

B7110109

Belt / pocket clip
product added to your basket
PA 6
black RAL 9005
B7110129 Belt strap

B7110129

Belt strap Elastic strap with clamp lock.

Supply 1 belt strap

Close

B7110129

Belt strap
product added to your basket
black
17.72″x1.38″
B7110139 Belt strap

B7110139

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Close

B7110139

Belt strap
product added to your basket
black
47.24″x1.18″
B7110149 Belt strap

B7110149

Belt strap Belt strap with insertion lock.

Supply 1 belt strap

Close

B7110149

Belt strap
product added to your basket
black
59.06″x1.18″

Accessory "screws"

A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178007

Contacts, male
product added to your basket
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Close

A9178008

Contacts, female
product added to your basket
gold-plated

Customizing options for B7015209

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 54 opt.
Necessary accessories: sealing
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
5.906″
150 mm
Width
3.937″
100 mm
Height
2.165″
55 mm
PCB length, top
5.039″
128 mm
PCB width, top
2.835″
72 mm
Keypad length
4.008″
101.8 mm
Keypad width
2.291″
58.2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
139 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
