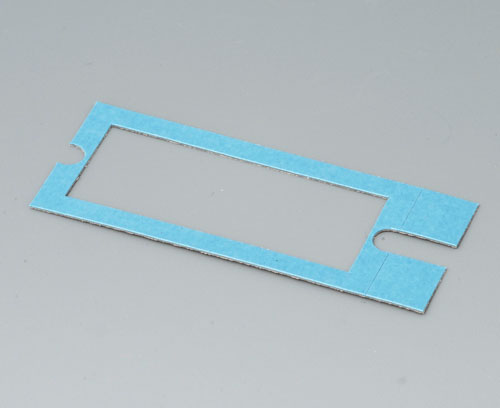

A9160006 Adhesive foil P/M
Scroll

A9160006

Adhesive foil P/M

Fastening the display window (A9060004, A9060005).

Supply

1 adhesive foil

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9160006

Please select the product details you would like to include in the PDF.

Close
  • To be used for

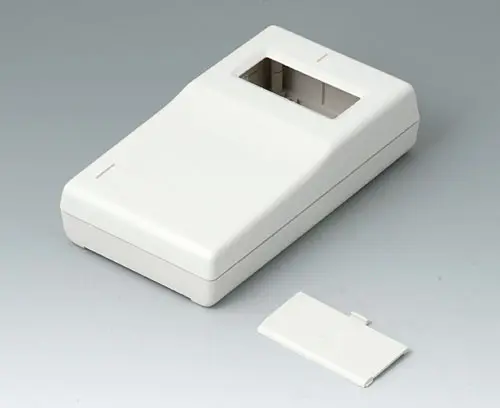

A9060007 HAND-HELD-BOX P, Vers. I

A9060007

HAND-HELD-BOX P, Vers. I Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Close

A9060007

HAND-HELD-BOX P, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.71″x3.15″x1.44″
A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Close

A9060009

HAND-HELD-BOX P, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.71″x3.15″x1.44″

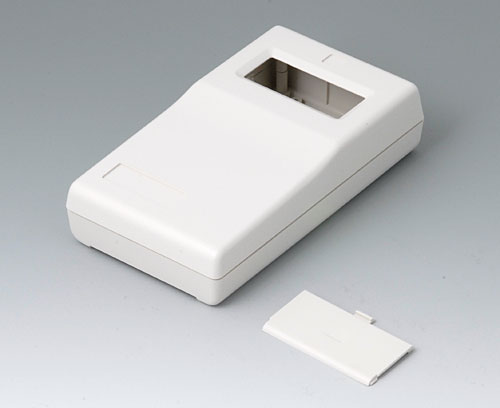

A9060017 HAND-HELD-BOX P, Vers. II

A9060017

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Close

A9060017

HAND-HELD-BOX P, Vers. II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.71″x3.15″x1.44″

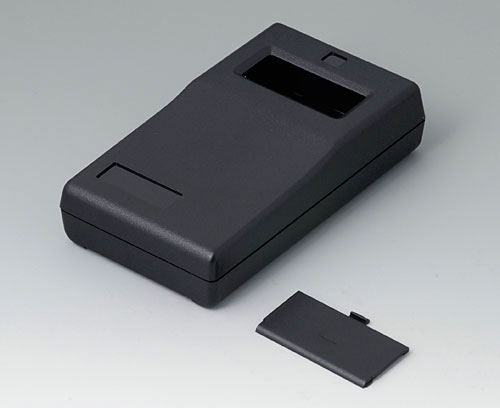

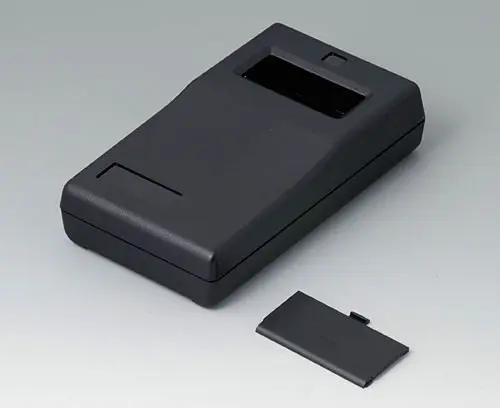

A9060019 HAND-HELD-BOX P, Vers. II

A9060019

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Close

A9060019

HAND-HELD-BOX P, Vers. II
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.71″x3.15″x1.44″

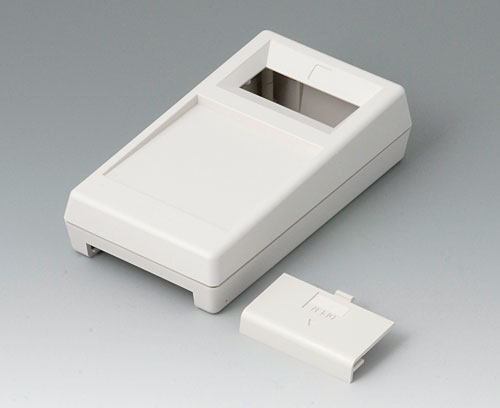

A9062017 HAND-HELD-BOX M, Vers. I

A9062017

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries or 1.5 V baby cells (C) with contacts for soldering

Supply Top and base part, battery compartment lid, assembly kit

Close

A9062017

HAND-HELD-BOX M, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.71″x3.15″x1.52″

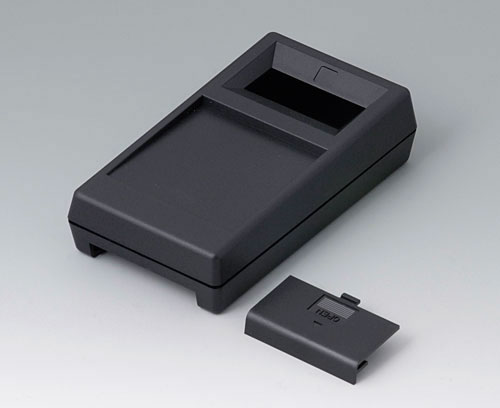

A9062019 HAND-HELD-BOX M, Vers. I

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

Close

A9062019

HAND-HELD-BOX M, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
5.71″x3.15″x1.52″
A9160004 Display window P

A9160004

Display window P The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

Close

A9160004

Display window P
product added to your basket
Acrylic glass
transparent
2.36″x1.18″x0.04″

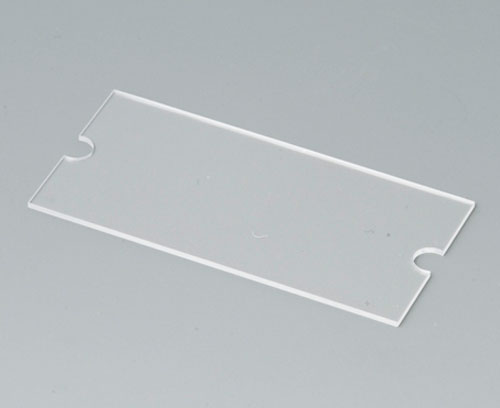

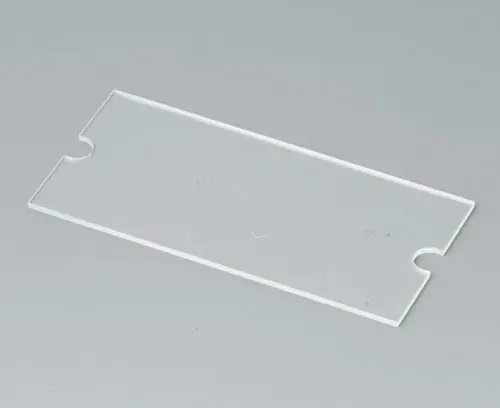

A9160005 Display window M

A9160005

Display window M The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

Close

A9160005

Display window M
product added to your basket
Acrylic glass
transparent
2.36″x1.18″x0.04″
  • Technical Data
  • Purchasing Data
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0.21 g
Customs tariff number
(OKW product)
39199080
Country of manufacture
Germany
