A9300822

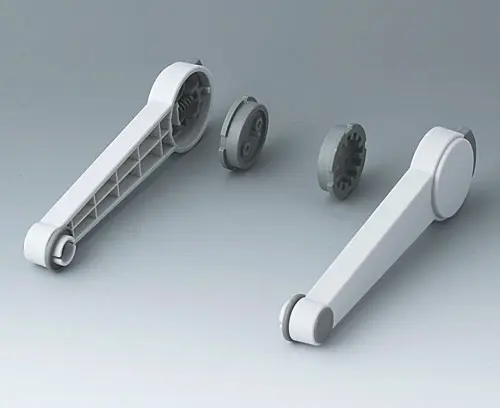

Side arm kit

The handle can be fixed from the outside as well as from the inside and is detachable at 135° positioning. Ratchet with 30° indexing. Al profile (AS053695) in requested length as separate accessory (on demand). The length of the profile has to be 0.118" longer than the width of the case.

Supply

2 side arms, fixing material

2D PDF Drawing

Add to my basket

product added to your basket
continue or open your product basket

Photo Gallery
View Customizing Options

Customizing options for A9300822

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Printing

Technical Data
Drawings / Info
Purchasing Data

Material

Color

Side arms light gray RAL 7035,
Push button handle volcano

Standards

RoHS compliant
REACH compliant

Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Handle bar, ACCESSORIES, assembly instruction 2,192 KB

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

PDF-File (without registration) 220 KB
AutoCAD DWG-File 365 KB
AutoCAD DXF-File 1,015 KB

Weight/1 part

40 g

Customs tariff number
(OKW product)

39269097

Country of manufacture

Germany
