Minimum components (for single parts)
1 bottom part, vers. I.
1 front design (cover or front panel Al).
1 battery compartment and lid.
or
1 bottom part, vers. II.
1 front design (front panel ABS or glass panel).
1 battery compartment and lid.
System components to complete
B4042407
Cover S
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Close
Cover S
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x0.55″

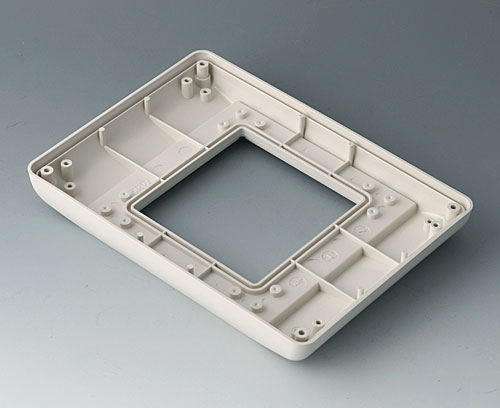

B4042707
Bottom part S flat, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminum front panel (sep. article)
Supply
1 bottom part flat
Close
Bottom part S flat, version I
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x0.96″
IP 54 opt.

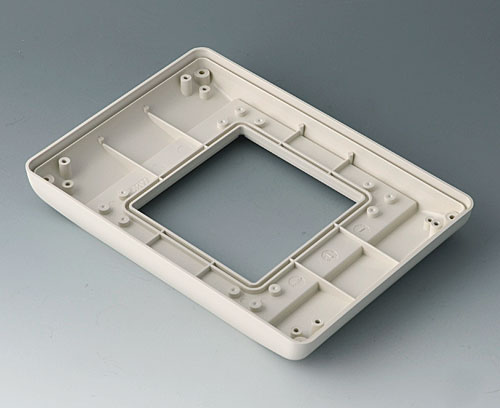

B4042717
Bottom part S flat, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Close
Bottom part S flat, version II
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x0.96″
IP 54 opt.
B4042757
Bottom part S high, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminum front panel (sep. article)
Supply
1 bottom part high
Close
Bottom part S high, version I
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x1.36″
IP 54 opt.
B4042767
Bottom part S high, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Close
Bottom part S high, version II
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x1.36″
IP 54 opt.
B4142106
Front panel S
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Close
Front panel S
product added to your basket
Aluminum
matt anodized
7.34″x5.18″x0.08″
B4142107
Front panel S
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Close
Front panel S
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.50″x5.34″x0.57″
B4142203
Glass panel S
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Close
Glass panel S
product added to your basket
Glass
clear
7.50″x5.34″x0.66″
Accessory "protection"
B4142005
Sealing S (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminum front panel / ABS front panel or glass panel).
Supply
1 sealing
Close
Sealing S (bottom part - front design)
product added to your basket
SEBS (TPE)
B4142006
Sealing S (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
-bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Close
Sealing S (bottom part - base/bot. panel/bat. comp...)
product added to your basket
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Close
Contacts, male
product added to your basket
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Close
Contacts, female
product added to your basket
gold-plated
Minimum components (for single parts)
1 bottom part, vers. I.
1 front design (cover or front panel Al).
1 battery compartment and lid or bottom panel with recess.
1 base – station for mobile case –
or
1 bottom part, vers. II.
1 front design (front panel ABS or glass panel).
1 battery compartment and lid or bottom panel with handle recess.
1 base – station for mobile case –
System components to complete
B4042407
Cover S
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Close
Cover S
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x0.55″
B4042707
Bottom part S flat, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminum front panel (sep. article)
Supply
1 bottom part flat
Close
Bottom part S flat, version I
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x0.96″
IP 54 opt.
B4042717
Bottom part S flat, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Close
Bottom part S flat, version II
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x0.96″
IP 54 opt.
B4042757
Bottom part S high, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminum front panel (sep. article)
Supply
1 bottom part high
Close
Bottom part S high, version I
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x1.36″
IP 54 opt.
B4042767
Bottom part S high, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Close
Bottom part S high, version II
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x1.36″
IP 54 opt.

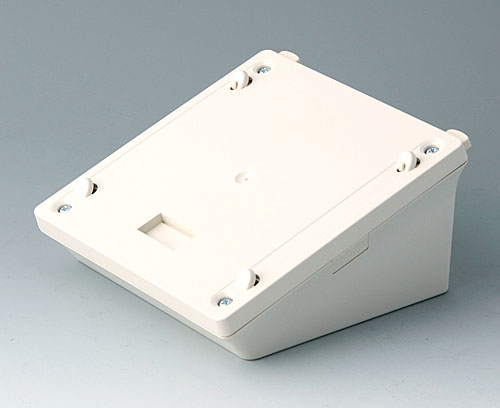

B4042837
Base S - charging station, case deposit mobile
Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.
Supply
1 base, 1 base cover, 2 covers, assembly kit
Close
Base S - charging station, case deposit mobile
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
4.84″x4.84″x2.36″
B4142106
Front panel S
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Close
Front panel S
product added to your basket
Aluminum
matt anodized
7.34″x5.18″x0.08″
B4142107
Front panel S
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Close
Front panel S
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.50″x5.34″x0.57″
B4142203
Glass panel S
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Close
Glass panel S
product added to your basket
Glass
clear
7.50″x5.34″x0.66″
Accessory "protection"
B4142005
Sealing S (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminum front panel / ABS front panel or glass panel).
Supply
1 sealing
Close
Sealing S (bottom part - front design)
product added to your basket
SEBS (TPE)
B4142006
Sealing S (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
-bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Close
Sealing S (bottom part - base/bot. panel/bat. comp...)
product added to your basket
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Close
Contacts, male
product added to your basket
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Close
Contacts, female
product added to your basket
gold-plated
Minimum components
1 bottom part, vers. I.
1 front design (cover or front panel Al).
1 battery compartment and lid or 1 bottom panel with handle recess.
1 wall suspension element.
or
1 bottom part, vers. II.
1 front design (front panel ABS or glass panel).
1 battery compartment and lid or 1 bottom panel with handle recess.
1 wall suspension element.
System components to complete
B4042407
Cover S
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Close
Cover S
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x0.55″
B4042707
Bottom part S flat, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminum front panel (sep. article)
Supply
1 bottom part flat
Close
Bottom part S flat, version I
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x0.96″
IP 54 opt.
B4042717
Bottom part S flat, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Close
Bottom part S flat, version II
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x0.96″
IP 54 opt.
B4042757
Bottom part S high, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminum front panel (sep. article)
Supply
1 bottom part high
Close
Bottom part S high, version I
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x1.36″
IP 54 opt.
B4042767
Bottom part S high, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Close
Bottom part S high, version II
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.48″x5.31″x1.36″
IP 54 opt.
B4142106
Front panel S
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Close
Front panel S
product added to your basket
Aluminum
matt anodized
7.34″x5.18″x0.08″
B4142107
Front panel S
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Close
Front panel S
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
7.50″x5.34″x0.57″
B4142203
Glass panel S
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Close
Glass panel S
product added to your basket
Glass
clear
7.50″x5.34″x0.66″
B4142247
Wall suspension element S
Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.
Supply
1 wall suspension element with snap-in mechanism
Close
Wall suspension element S
product added to your basket
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4142005
Sealing S (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminum front panel / ABS front panel or glass panel).
Supply
1 sealing
Close
Sealing S (bottom part - front design)
product added to your basket
SEBS (TPE)
B4142006
Sealing S (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
-bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Close
Sealing S (bottom part - base/bot. panel/bat. comp...)
product added to your basket
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Close
Contacts, male
product added to your basket
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Close
Contacts, female
product added to your basket
gold-plated
Customizing options for B4142047
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Accessories for enclosures
Add to my basket
