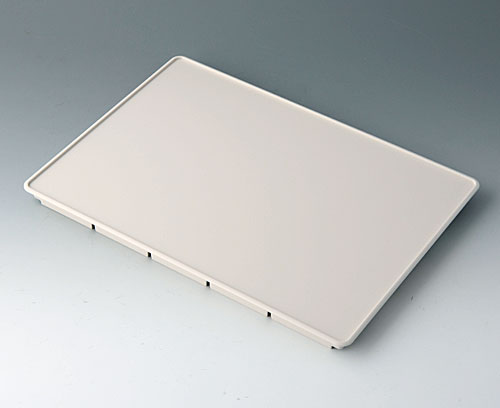

B4146107 Front panel L

B4146107

Front panel L

Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.

Supply

1 front panel, assembly kit

  • Components/Accessories
  • View Customizing Options

Mobile with battery compartment

Mobile without battery compartment

Mobile with station

Mobile / Wall

Desk-top (screw-type connection)

Desk-top / Wall

Installation

Customizing options for B4146107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
off-white RAL 9002
Width
10.850″
275.6 mm
Depth
7.701″
195.6 mm
Height
0.610″
15.5 mm
Keypad length
10.591″
269 mm
Keypad width
7.441″
189 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
193 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
