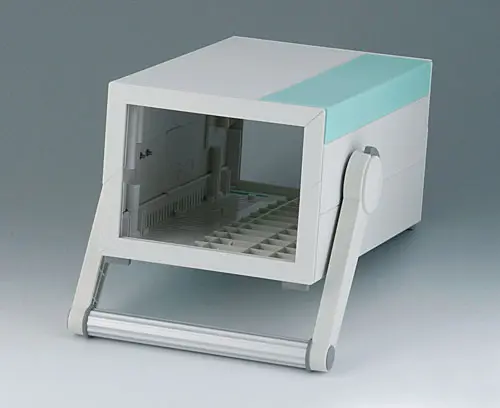

B2212315 MEDITEC E 220, with handle bar
Scroll

B2212315

MEDITEC E 220, with handle bar

Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply

2 L-Shells, 2 side trims without ventilation (color lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B2212315

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory to complete

B2116007 Sloping control panel E

B2116007

Sloping control panel E Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version E (for MEDITEC E160 or E220)

Supply 1 angle, 1 cover, assembly kit

Close

B2116007

Sloping control panel E
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2116407 Front / rear panel Z1

B2116407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

Close

B2116407

Front / rear panel Z1
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.57″x4.16″x0.12″
B2116707 Infill panel E

B2116707

Infill panel E When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 4.882") and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version E

Supply 1 front cover (for locking)

Close

B2116707

Infill panel E
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.59″x2.17″x0.20″

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 0.098" x 0.236", type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
product added to your basket

Accessory

B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

Close

B2134012

Stacking elements
product added to your basket
PA 6
volcano

Customizing options for B2212315

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 40
Color
Enclosure off-white RAL 9002,
Side trims lagoon
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
6.299″
160 mm
Depth
10.236″
260 mm
Height
4.882″
124 mm
PCB length, base
5.118″
130 mm
PCB width, base
9.646″
245 mm
Keypad length
5.197″
132 mm
Keypad width
3.780″
96 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1040 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
