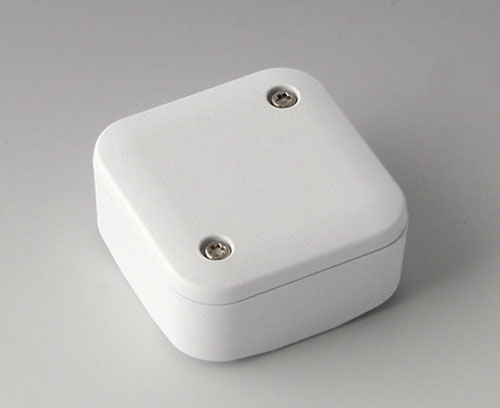

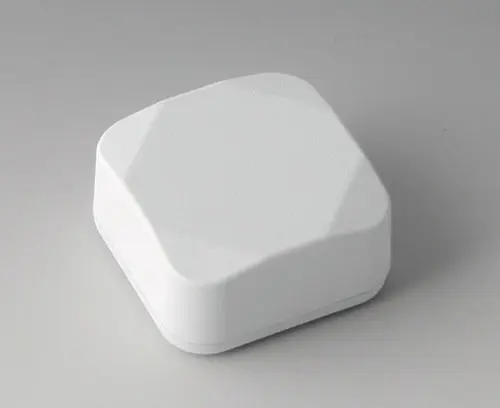

MINI-DATA-BOX S40, high
2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Top part high
SupplyTop and bottom parts, assembly kit
2D PDF Drawing
3D PDF View
Generate my PDF Datasheet
Generate Your PDF Datasheet for B1802217
Please select the product details you would like to include in the PDF.
Close
Customizing options for B1802217
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Material
Protection class
Color
traffic white RAL 9016
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
1.575″
40 mm
Width
1.575″
40 mm
Height
0.787″
20 mm
PCB length, base
1.260″
32 mm
PCB width, base
1.260″
32 mm
PCB length, top
1.260″
32 mm
PCB width, top
1.260″
32 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)
- PDF-File (without registration) 236 KB
- AutoCAD DWG-File 275 KB
- AutoCAD DXF-File 974 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view...) 556 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)
- 00028530.x_t 1,444 KB
- 00028530.step 3,569 KB
- 00028530.sat 3,856 KB
Weight/1 part
13 g
