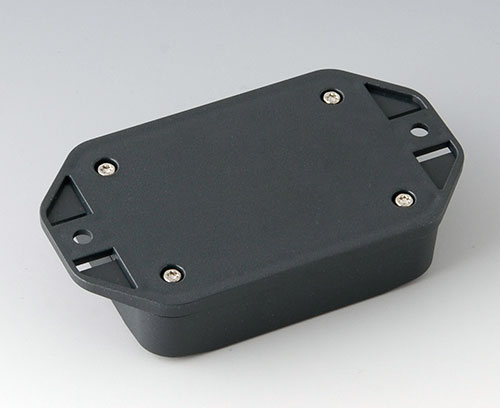

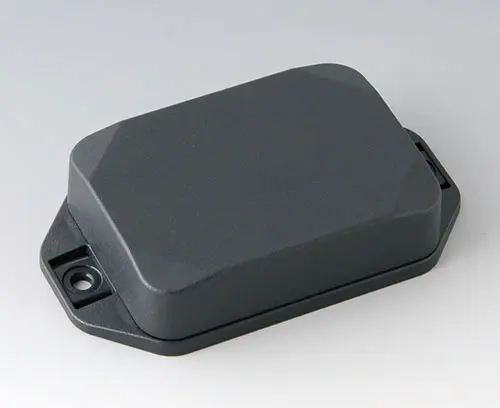

B1824228 MINI-DATA-BOX EF50, high, with flanges
Scroll

B1824228

MINI-DATA-BOX EF50, high, with flanges

2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version

Bottom part with flanges, top part high

Supply

Top and bottom parts, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B1824228

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "protection"

B1924101 Sealing E50/EF50

B1924101

Sealing E50/EF50

Use: increases the protection class of MINI-DATA-BOX E50 and EF50. Fits to the groove in the bottom part of the enclosure.

Supply 1 seal

Close

B1924101

Sealing E50/EF50
product added to your basket

Customizing options for B1824228

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 65 opt.
Necessary accessories: sealing, IP 40
Color
anthracite gray RAL 7016
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
2.756″
70 mm
Width
1.969″
50 mm
Height
0.787″
20 mm
PCB length, base
2.441″
62 mm
PCB width, base
1.654″
42 mm
PCB length, top
2.441″
62 mm
PCB width, top
1.654″
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
28 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
