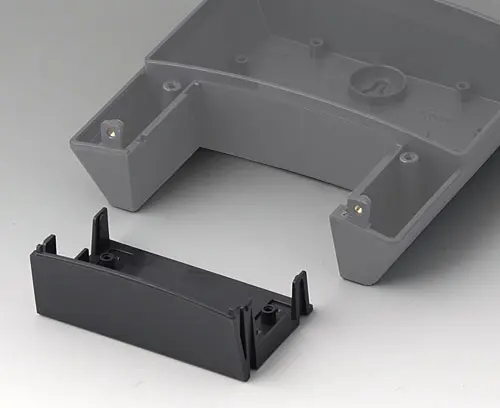

B3314918 Infill cover 140
Scroll

B3314918

Infill cover 140

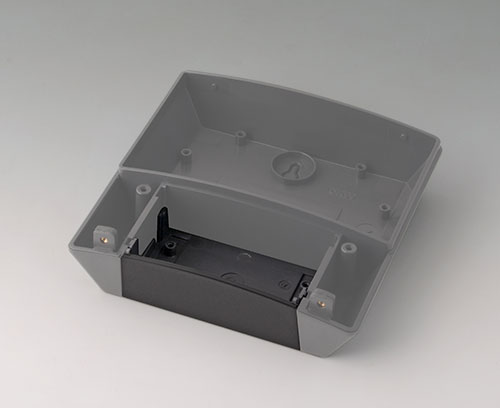

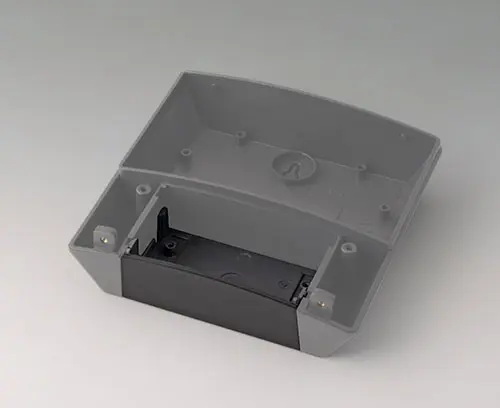

With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply

1 infill cover

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B3314918

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

System components to complete

B3214101 NET-BOX 140, Vers. I

B3214101

NET-BOX 140, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern color combination of light gray and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3214101

NET-BOX 140, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
5.51″x5.51″x1.83″
IP 65 opt., IP 40

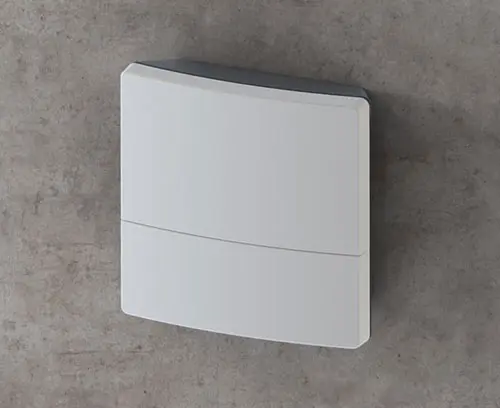

B3214201 NET-BOX 140, Vers. II

B3214201

NET-BOX 140, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern color combination of light gray and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3214201

NET-BOX 140, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
light gray RAL 7035
5.51″x5.51″x1.83″
IP 65 opt.

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket

Customizing options for B3314918

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Color
lava
Standards
RoHS compliant
REACH compliant
PCB length, base
1.732″
44 mm
PCB width, base
3.071″
78 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
