Snaptec

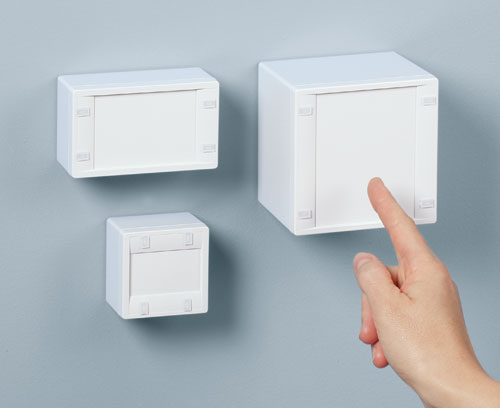

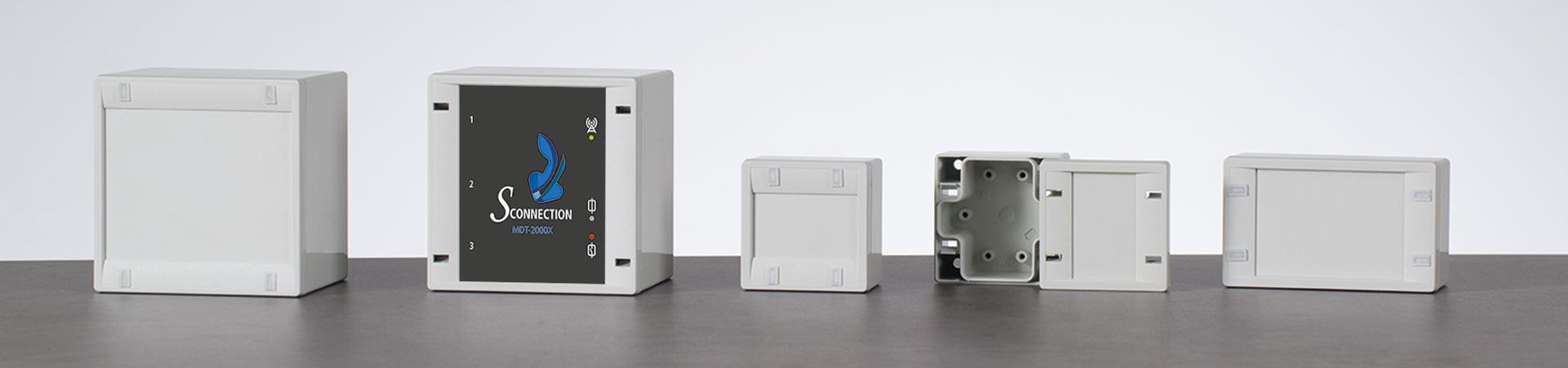

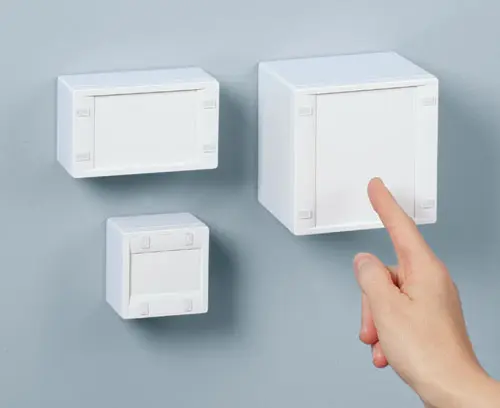

Fast assembly IP 65 plastic enclosures

These practical enclosures feature a rational snap-together assembly technique for faster installation of the electronics/electrical components.

  • modern low cost wall mount enclosures
  • snap-on lids for easier assembly
  • high bottom parts guarantee maximum surface area for fitting cable glands and interfaces

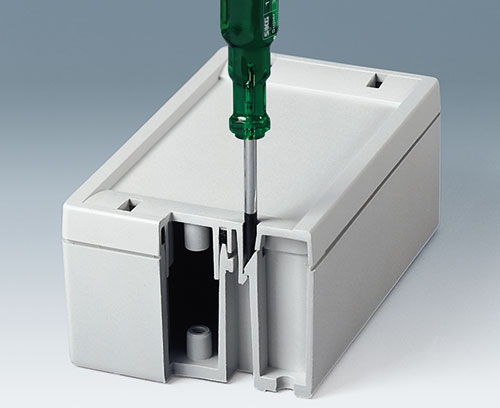

  • fast disassembly/servicing with opening tool or screw driver
  • nylon opening tool and cover plugs for access holes included

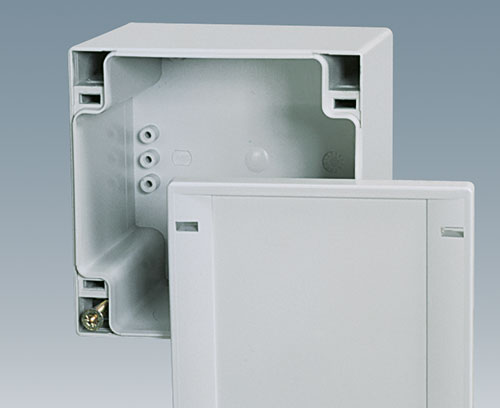

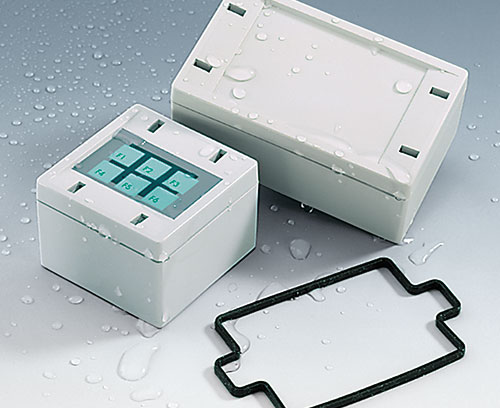

  • high protection class IP 65; sealing gasket pre-fitted in the top

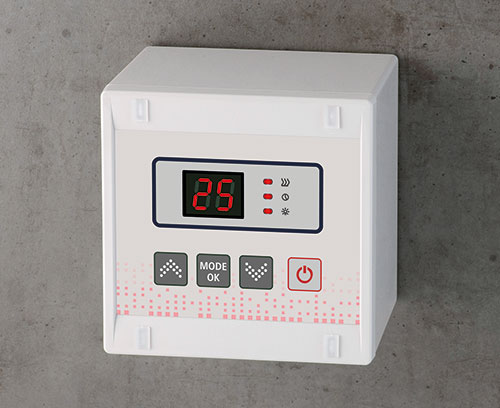

  • recess in the lid for a membrane keypad or label
  • hidden screw shafts for easy wall mounting

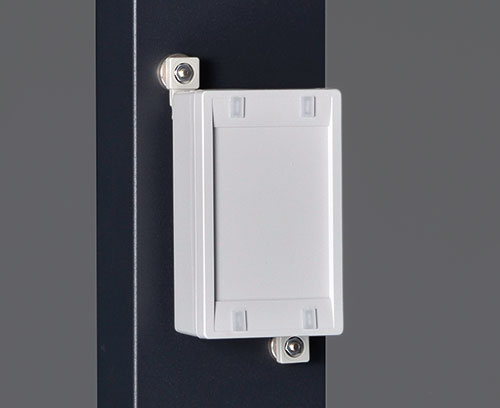

  • alternative external wall mounting brackets

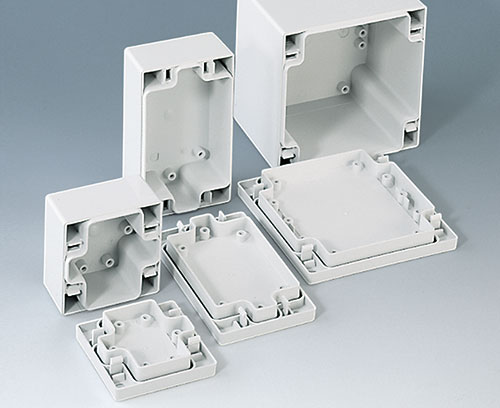

  • internal screw pillars for PCBs etc.
Generate PDF

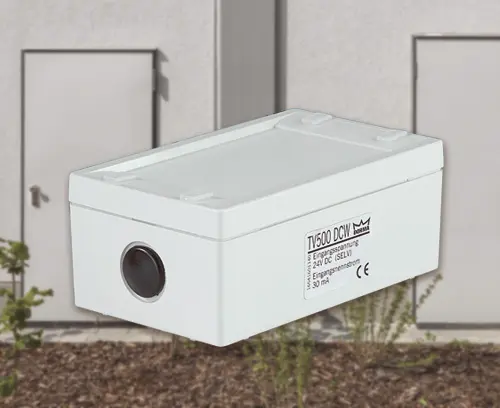

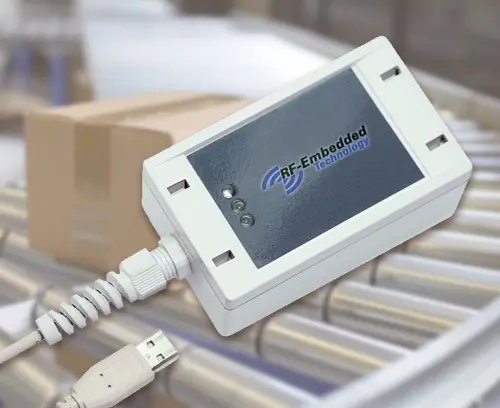

  • Application Examples

Application fields

  • Small devices with electro-technical components for low voltage, e.g. potentiometers, time controllers, coded control units etc.
  • Or applications for low voltage with electro-mechanical components e.g. relays, under voltage no-close release, fuses etc. Also, medical and home automation systems.
  • Browse Full List
  • Accessories
  • View Customizing Options

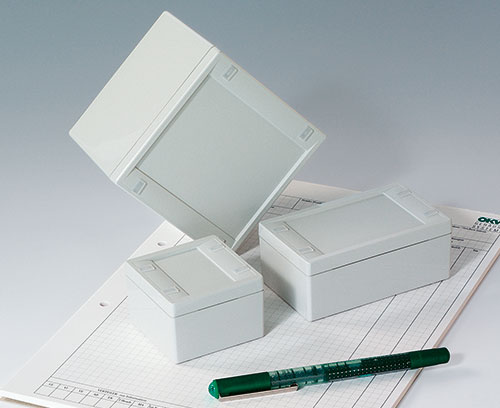

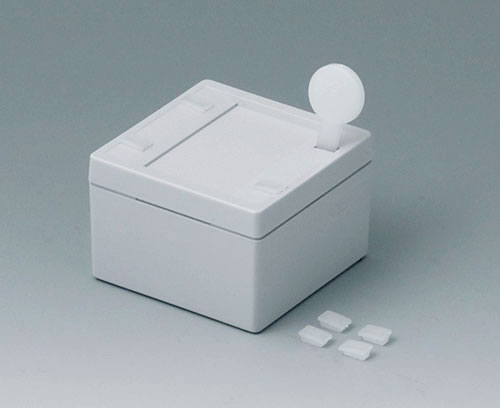

C3006061 SNAPTEC 2.362" x 2.362"

C3006061

SNAPTEC 2.362" x 2.362" Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-molded shafts within the base part.

Supply 1 top and base part with sealing, cover for the locking openings, dismantling key

Close

C3006061

SNAPTEC 2.362" x 2.362"
product added to your basket
ABS (UL 94 HB)
light gray RAL 7035
2.36″x2.36″x1.57″
IP 65

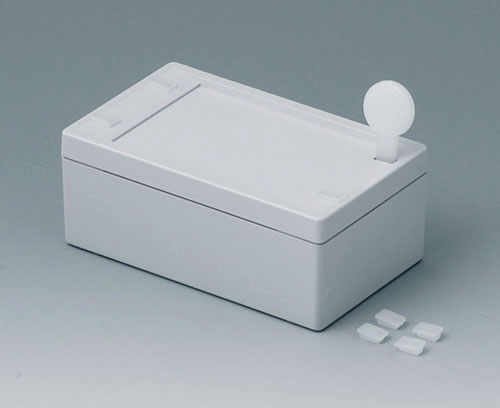

C3006101 SNAPTEC 2.362" x 3.937"

C3006101

SNAPTEC 2.362" x 3.937" Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-molded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

Close

C3006101

SNAPTEC 2.362" x 3.937"
product added to your basket
ABS (UL 94 HB)
light gray RAL 7035
2.36″x3.94″x1.57″
IP 65

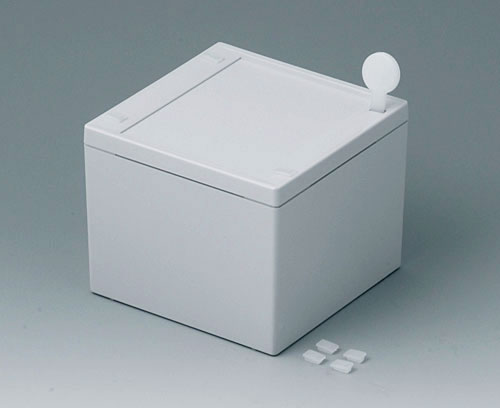

C3010101 SNAPTEC 3.937" x 3.937"

C3010101

SNAPTEC 3.937" x 3.937" Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-molded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

Close

C3010101

SNAPTEC 3.937" x 3.937"
product added to your basket
ABS (UL 94 HB)
light gray RAL 7035
3.94″x3.94″x3.15″
IP 65
A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket
C2299028 Wall mounting brackets

C2299028

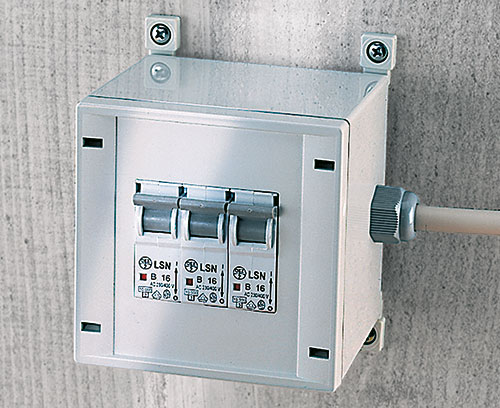

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Close

C2299028

Wall mounting brackets
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
C2306917 Pressure equalization element M6x0.030"

C2306917

Pressure equalization element M6x0.030" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2306917

Pressure equalization element M6x0.030"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2310917 Pressure equalization element M10x0.039"

C2310917

Pressure equalization element M10x0.039" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2310917

Pressure equalization element M10x0.039"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2316147

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.020" - 0.118" and for cable diameters from 0.197" - 0.394". Operating temperatures from -40°C to +100°C. Borehole ø 0.650".

Supply 1 cable grommet

Close

C2316147

Cable grommet
product added to your basket
TPE
light gray RAL 7035
IP 67
C2320137 Cable grommet

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.039" - 0.157" and for cable diameters from 0.315" - 0.512". Operating temperatures from -40°C to +100°C. Borehole ø 0.807".

Supply 1 cable grommet

Close

C2320137

Cable grommet
product added to your basket
EPDM
light gray RAL 7035
IP 67
C2320147

C2320147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.020" - 0.118" and for cable diameters from 0.236" - 0.512". Operating temperatures from -40°C to +100°C. Borehole ø 0.807".

Supply 1 cable grommet

Close

C2320147

Cable grommet
product added to your basket
TPE
light gray RAL 7035
IP 67

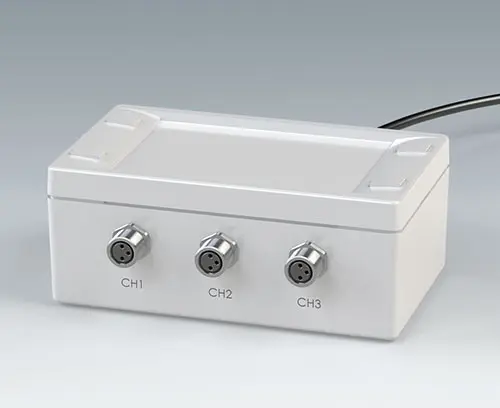

Customizing options for Snaptec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
