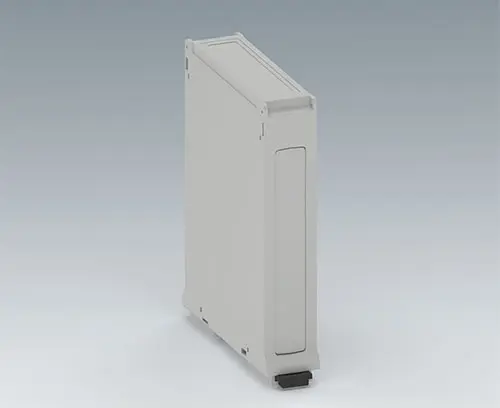

B6522101 RAILTEC BP, M22, with closed side panels

B6522101

RAILTEC BP, M22, with closed side panels

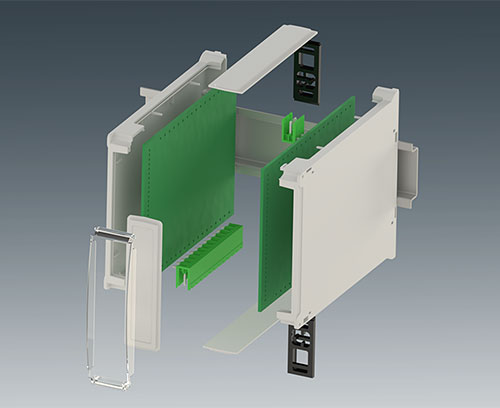

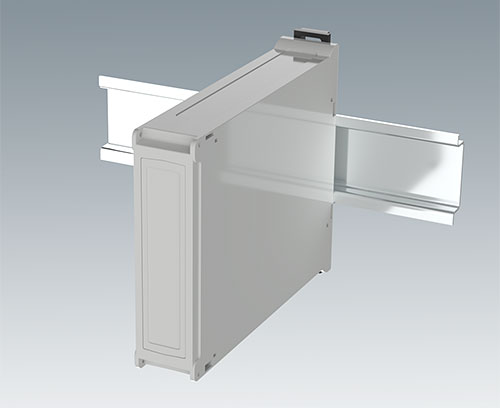

DIN rail enclosure with pluggable side panels and front panel. Connection options on three sides. For plug headers max. 2 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version

with closed side panels

Supply

in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 closed side panels, 1 front panel, 2 locking clips)

  • Components/Accessories
  • View Customizing Options

Accessory "protection"

B6622101 Hinged cover

B6622101

Hinged cover Hinged convex cover for RAILTEC BP, M22. Can be swivelled up or down. Protects electronics, interfaces and/or operating elements.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

Close

B6622101

Hinged cover
product added to your basket
transparent

Accessory "terminals"

B6600222 Plug header, block 5.08 mm

B6600222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 3-pin.

Supply 1 piece

Close

B6600222

Plug header, block 5.08 mm
product added to your basket
PA 68 (UL 94 V-0)
B6601222 Plug header, block 5.08 mm

B6601222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 5-pin.

Supply 1 piece

Close

B6601222

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
B6602222 Plug header, block 5.08 mm

B6602222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 9-pin.

Supply 1 piece

Close

B6602222

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
B6605222 Plug header, block 5.08 mm

B6605222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 13-pin.

Supply 1 piece

Close

B6605222

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08 mm

B6606222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 2-pin.

Supply 1 piece

Close

B6606222

Plug header, block 5.08 mm
product added to your basket
PA 6 (UL 94 V-0)
B6608222 Plug header, block 5.08 mm

B6608222

Plug header, block 5.08 mm Male terminal block, 5.08 mm. 6-pin.

Supply 1 piece

Close

B6608222

Plug header, block 5.08 mm
product added to your basket
PA 68 (UL 94 V-0)

Accessory

B6522801 Front panel

B6522801

Front panel Front panel for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

Close

B6522801

Front panel
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
B6522811 Side panel closed

B6522811

Side panel closed Side panel closed for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

Close

B6522811

Side panel closed
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
B6522821 Side panel with ventilation slots

B6522821

Side panel with ventilation slots Side panel with ventilation slots for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

Close

B6522821

Side panel with ventilation slots
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035

Customizing options for B6522101

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • 3D-Models & Drawings / Info
  • Purchasing Data
Color
light gray RAL 7035
Width
3.740″
95 mm
Height
0.906″
23 mm
Depth
4.449″
113 mm
Pitch
5.08 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
59 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
