B6608141 Terminal guards, flat
Scroll

B6608141

Terminal guards, flat

Easy assembly through snap-in installation of the case parts.

Version

With ventilation slots

Supply

1 piece

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6608141

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customizing Options
B6502121 RAILTEC B, 3 modules, Vers. VI

B6502121

RAILTEC B, 3 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6502121

RAILTEC B, 3 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
2.07″x3.54″x2.28″
B6504121 RAILTEC B, 6 modules, Vers. VI

B6504121

RAILTEC B, 6 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6504121

RAILTEC B, 6 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
4.13″x3.54″x2.28″
B6504229 RAILTEC B, 6 modules, Vers. low profile

B6504229

RAILTEC B, 6 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6504229

RAILTEC B, 6 modules, Vers. low profile
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
4.13″x3.53″x1.23″
B6505121 RAILTEC B, 9 modules, Vers. VI

B6505121

RAILTEC B, 9 modules, Vers. VI Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6505121

RAILTEC B, 9 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
6.18″x3.54″x2.28″

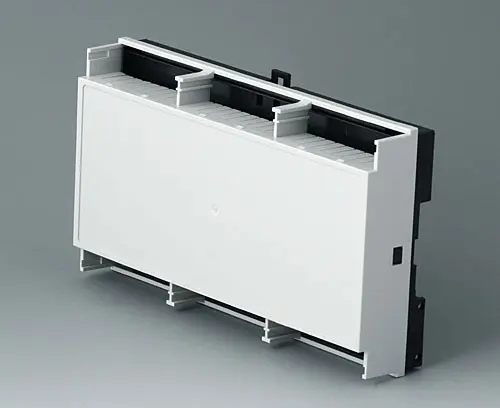

B6505229 RAILTEC B, 9 modules, Vers. low profile

B6505229

RAILTEC B, 9 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 6 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6505229

RAILTEC B, 9 modules, Vers. low profile
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
6.20″x3.53″x1.23″
B6506121 RAILTEC B, 12 modules, Vers. VI

B6506121

RAILTEC B, 12 modules, Vers. VI Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Close

B6506121

RAILTEC B, 12 modules, Vers. VI
product added to your basket
PC (UL 94 V-0)
light gray RAL 7035
8.27″x3.54″x2.28″

Customizing options for B6608141

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PC (UL 94 V-0)
Color
light gray
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1.5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
