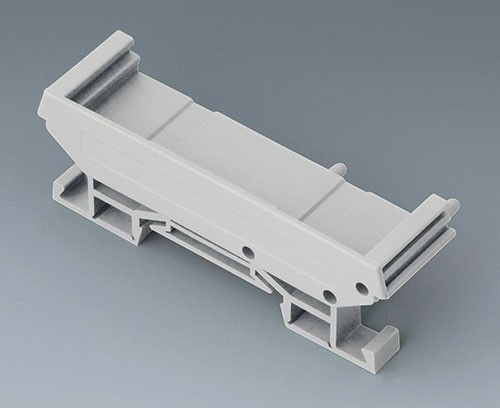

B6724336 RAILTEC SUP. 72, end section with foot
Scroll

B6724336

RAILTEC SUP. 72, end section with foot

Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply

1 end section with foot

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6724336

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

System components to complete

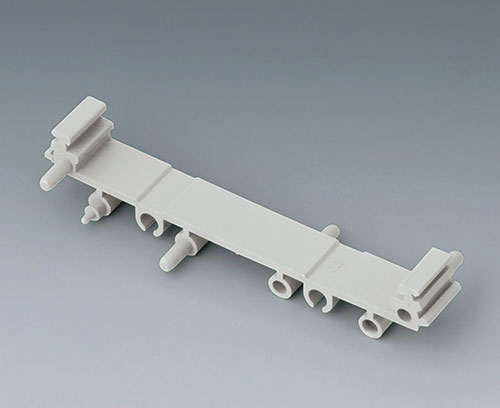

B6724330 RAILTEC SUP. 72, intermediate part

B6724330

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

Close

B6724330

RAILTEC SUP. 72, intermediate part
product added to your basket
PA 6 (30) (UL 94 V-0)
light gray
3.23″x0.44″x0.63″

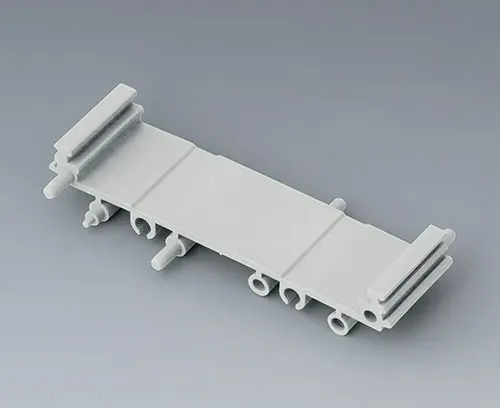

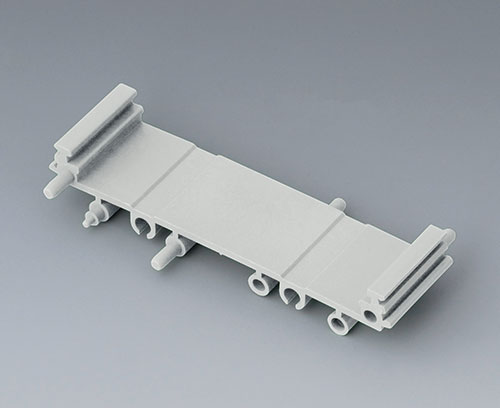

B6724331 RAILTEC SUP. 72, intermediate part

B6724331

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

Close

B6724331

RAILTEC SUP. 72, intermediate part
product added to your basket
PA 6 (30) (UL 94 V-0)
light gray
3.23″x0.89″x0.63″

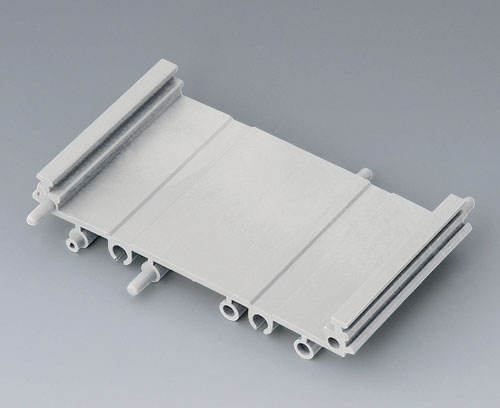

B6724332 RAILTEC SUP. 72, intermediate part

B6724332

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

Close

B6724332

RAILTEC SUP. 72, intermediate part
product added to your basket
PA 6 (30) (UL 94 V-0)
light gray
3.23″x1.77″x0.63″

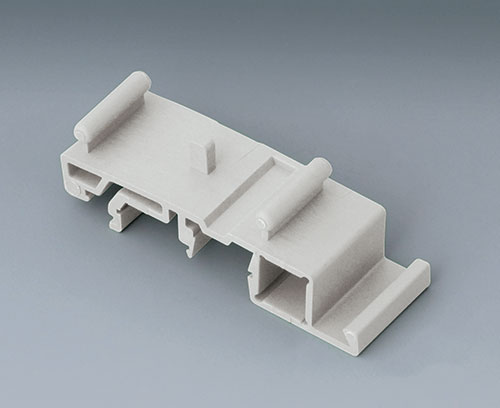

B6724337 RAILTEC SUP. 72, foot

B6724337

RAILTEC SUP. 72, foot Can be used for intermediate part and end section without foot. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 foot

Close

B6724337

RAILTEC SUP. 72, foot
product added to your basket
PA 6 (30) (UL 94 V-0)
light gray

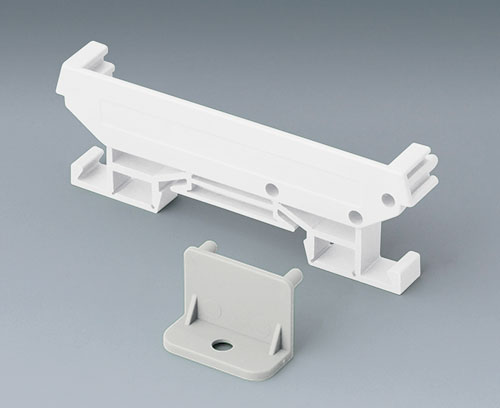

Accessory "wall/holder"

B6824533 Wall suspension element with foot, SUP.

B6824533

Wall suspension element with foot, SUP. Allows direct wall-mounting, suitable for end section with foot.

Supply 2 pieces as set

Close

B6824533

Wall suspension element with foot, SUP.
product added to your basket
PA 6 (30) (UL 94 V-0)
light gray

Customizing options for B6724336

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA 6 (30) (UL 94 V-0)
Color
light gray
Standards
RoHS compliant
DIN EN 60715 TH35
REACH compliant
Length
3.228″
82 mm
Width
0.874″
22.2 mm
Height
0.886″
22.5 mm
PCB length, base
2.835″
72 mm
PCB width, base
0.827″
21 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
10 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
