B6805100 Front panel, 6 modules
Scroll

B6805100

Front panel, 6 modules

Snap-in.

Supply

1 front panel

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6805100

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customizing Options
B6705100 RAILTEC C, 6 modules, Vers. I

B6705100

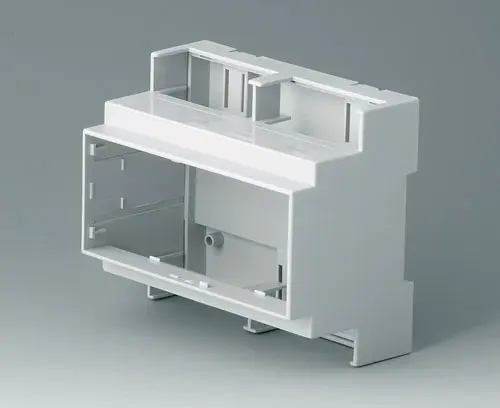

RAILTEC C, 6 modules, Vers. I Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705100

RAILTEC C, 6 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″
B6705101 RAILTEC C, 6 modules, Vers. I

B6705101

RAILTEC C, 6 modules, Vers. I Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705101

RAILTEC C, 6 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″

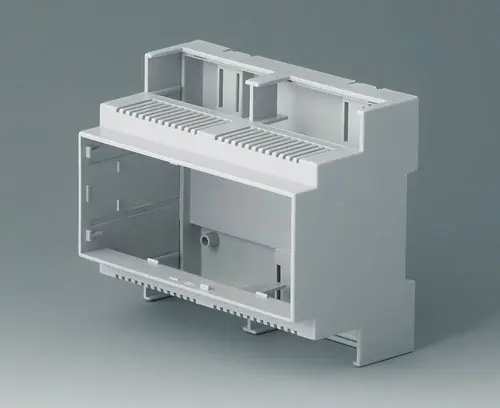

B6705102 RAILTEC C, 6 modules, Vers. II

B6705102

RAILTEC C, 6 modules, Vers. II Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories).Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705102

RAILTEC C, 6 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″

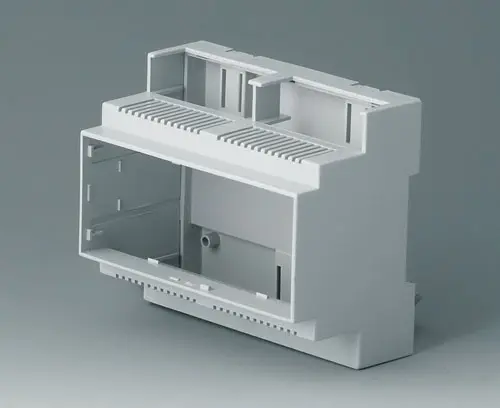

B6705103 RAILTEC C, 6 modules, Vers. II

B6705103

RAILTEC C, 6 modules, Vers. II Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705103

RAILTEC C, 6 modules, Vers. II
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″

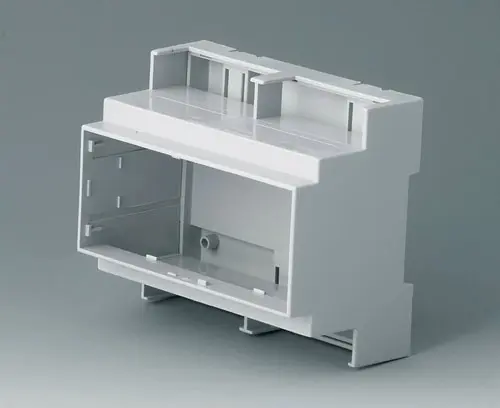

B6705104 RAILTEC C, 6 modules, Vers. III

B6705104

RAILTEC C, 6 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705104

RAILTEC C, 6 modules, Vers. III
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″

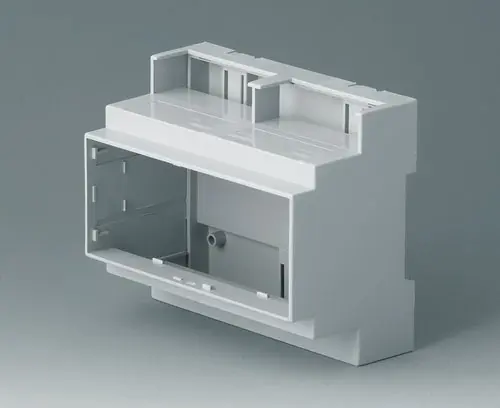

B6705105 RAILTEC C, 6 modules, Vers. III

B6705105

RAILTEC C, 6 modules, Vers. III Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705105

RAILTEC C, 6 modules, Vers. III
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″

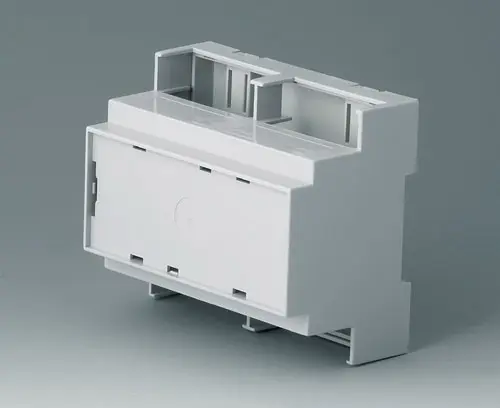

B6705106 RAILTEC C, 6 modules, Vers. IV

B6705106

RAILTEC C, 6 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705106

RAILTEC C, 6 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″

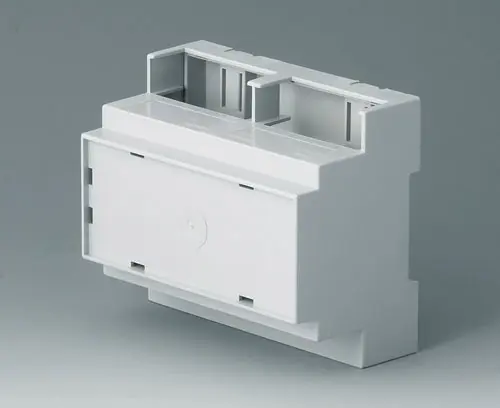

B6705107 RAILTEC C, 6 modules, Vers. IV

B6705107

RAILTEC C, 6 modules, Vers. IV Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705107

RAILTEC C, 6 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
4.17″x3.54″x2.28″
B6705700 RAILTEC C, 6 modules, high

B6705700

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705700

RAILTEC C, 6 modules, high
product added to your basket
PC (UL 94 V-0)
light gray
4.21″x3.54″x4.49″
B6705706 RAILTEC C, 6 modules, high

B6705706

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705706

RAILTEC C, 6 modules, high
product added to your basket
PC (UL 94 V-0)
light gray
4.21″x3.54″x4.49″
B6705800 RAILTEC C, 6 modules, flat, Vers. I

B6705800

RAILTEC C, 6 modules, flat, Vers. I Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705800

RAILTEC C, 6 modules, flat, Vers. I
product added to your basket
PC (UL 94 V-0)
light gray
4.18″x3.54″x1.26″
B6705806 RAILTEC C, 6 modules, flat, Vers. IV

B6705806

RAILTEC C, 6 modules, flat, Vers. IV Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Close

B6705806

RAILTEC C, 6 modules, flat, Vers. IV
product added to your basket
PC (UL 94 V-0)
light gray
4.18″x3.54″x1.26″

Customizing options for B6805100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PC (UL 94 V-0)
Color
light gray
Standards
RoHS compliant
REACH compliant
Width
4.016″
102 mm
Height
1.654″
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
