CIME/M/EC0000E RAILTEC SUP. EXT 72, end cover
Scroll

CIME/M/EC0000E

RAILTEC SUP. EXT 72, end cover

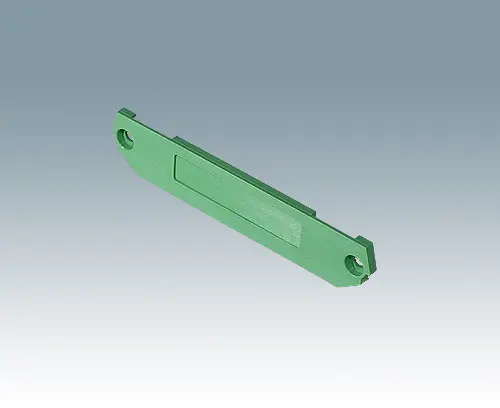

End cover for extruded base section (2.835" PCB), fixed by two self-tapping screws.  Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >5.906") and 4 end cover self-tapping screws.

Supply

1 end cover

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for CIME/M/EC0000E

Please select the product details you would like to include in the PDF.

Close
  • To be used for
CIME/M/BExxx RAILTEC SUP. EXT 72, base section

CIME/M/BExxx

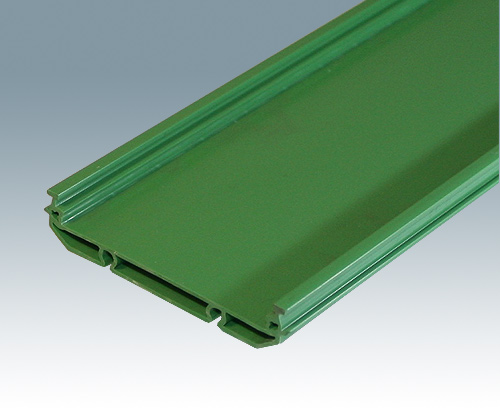

RAILTEC SUP. EXT 72, base section Extruded base section for 2.835" PCBs  - 'xxx' in part no = your PCB width less 0.157" (we will supply the base extrusion pre-cut to this dimension). E.g. 7.874" PCB = base extrusion is cut to 7.717" - order Part # CIME/M/BE196. Minimum cut = 2.75". Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >5.906") and 4 end cover self-tapping screws.
Note: The weight shown in purchasing data refers to profiles with 3.937" length.

Supply 1 base section (cut to your PCB size)

Close

CIME/M/BExxx

RAILTEC SUP. EXT 72, base section
product added to your basket
PVC (UL 94 V-0)
green
3.15″x0.63″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA66 (UL 94 V-0)
Color
green
Standards
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
REACH compliant
Width
0.079″
2 mm
Height
0.630″
16 mm
Depth
3.228″
82 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
2.8 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
