C0082401 Case shell 3.150
Scroll

C0082401

Case shell 3.150", with groove

Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply

1 case shell with groove

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for C0082401

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

System components to complete

C1082401 Case shell 3.150", with tongue

C1082401

Case shell 3.150", with tongue Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with tongue

Close

C1082401

Case shell 3.150", with tongue
product added to your basket
ABS (UL 94 HB)
light gray RAL 7035
9.45″x3.15″x1.57″

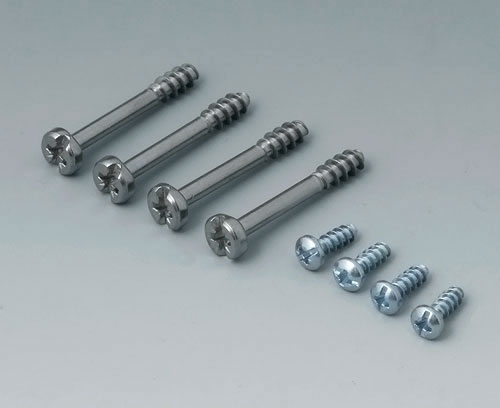

C2299001 Assembly kit

C2299001

Assembly kit Each 4 screws for case assembly, and for mounting PCBs.

Supply 1 assembly kit

Close

C2299001

Assembly kit
product added to your basket

Accessory to complete

C2200801 Cover strips 3.150", without holes

C2200801

Cover strips 3.150", without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Close

C2200801

Cover strips 3.150", without holes
product added to your basket
PC (UL 94 HB)
light gray RAL 7035
C2201082 Cover strips 3.150"

C2201082

Cover strips 3.150" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201082

Cover strips 3.150"
product added to your basket
PC (UL 94 HB)
silver gray RAL 7001
C2201084 Cover strips 3.150"

C2201084

Cover strips 3.150" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201084

Cover strips 3.150"
product added to your basket
PC (UL 94 HB)
red RAL 3020
C2201085 Cover strips 3.150"

C2201085

Cover strips 3.150" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201085

Cover strips 3.150"
product added to your basket
PC (UL 94 HB)
yellow RAL 1023
C2201086 Cover strips 3.150"

C2201086

Cover strips 3.150" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201086

Cover strips 3.150"
product added to your basket
PC (UL 94 HB)
green RAL 6024
C2201087 Cover strips 3.150"

C2201087

Cover strips 3.150" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201087

Cover strips 3.150"
product added to your basket
PC (UL 94 HB)
blue RAL 5017
C2210801 Cover strips 3.150", with holes

C2210801

Cover strips 3.150", with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Close

C2210801

Cover strips 3.150", with holes
product added to your basket
PC (UL 94 HB)
light gray RAL 7035

Accessory "protection"

C2299040 Security plug

C2299040

Security plug For use with lead tags.

Supply 1 plug

Close

C2299040

Security plug
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
C2299048 Security kit width 3.150"

C2299048

Security kit width 3.150" For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Close

C2299048

Security kit width 3.150"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
C2306917 Pressure equalization element M6x0.030"

C2306917

Pressure equalization element M6x0.030" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2306917

Pressure equalization element M6x0.030"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2310917 Pressure equalization element M10x0.039"

C2310917

Pressure equalization element M10x0.039" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2310917

Pressure equalization element M10x0.039"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56

Accessory "wall/holder"

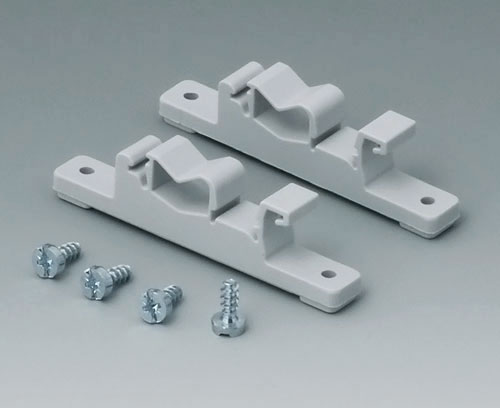

C2201088 Fastening elements to DIN-Rails

C2201088

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 3.150".

Supply 2 fastening elements, assembly kit

Close

C2201088

Fastening elements to DIN-Rails
product added to your basket
PA 6
light gray RAL 7035
C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Close

C2299028

Wall mounting brackets
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 7.874" x 11.811" and 9.449" x 14.173".

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

Close

C2299031

Securing hinge for the cover
product added to your basket
PP
natural-colored
C2299088 Hinge

C2299088

Hinge For cases: 4.724", 6.299", 7.874" and 9.449" length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Close

C2299088

Hinge
product added to your basket
PA 6
light gray RAL 7035

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket
A0308031 Self-tapping screws 0.118" x 0.315" (PZ1)

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1)
product added to your basket
A0308132 Self-tapping screw 0.118" x 0.315" (T10)

A0308132

Self-tapping screw 0.118" x 0.315" (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 0.118" x 0.315" (T10)
product added to your basket
Stainless steel

Accessory

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Close

C2299018

Case feet
product added to your basket
TPE (UL 94 HB)
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 3.150" and width 6.299".

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Close

C2299068

PCB support
product added to your basket
PC (UL 94 HB)
light gray RAL 7035

Customizing options for C0082401

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Color
light gray RAL 7035
Standards
RoHS compliant
REACH compliant
Length
9.449″
240 mm
Width
3.150″
80 mm
Height
0.787″
20 mm
PCB length, top
7.874″
200 mm
PCB width, top
2.559″
65 mm
Keypad length
7.984″
202.8 mm
Keypad width
2.583″
65.6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
112 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
