C2112201 ROBUST-BOX WIDTH 4.724
Scroll

C2112201

ROBUST-BOX WIDTH 4.724", Vers. I

Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.031" for use of membrane keyboards.

Supply

2 case shells with sealing, cover strips top and bottom, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for C2112201

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "protection"

C2299040 Security plug

C2299040

Security plug For use with lead tags.

Supply 1 plug

Close

C2299040

Security plug
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
C2299042 Security kit width 4.724"

C2299042

Security kit width 4.724" For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Close

C2299042

Security kit width 4.724"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
C2306917 Pressure equalization element M6x0.030"

C2306917

Pressure equalization element M6x0.030" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2306917

Pressure equalization element M6x0.030"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2310917 Pressure equalization element M10x0.039"

C2310917

Pressure equalization element M10x0.039" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2310917

Pressure equalization element M10x0.039"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2320137 Cable grommet

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.039" - 0.157" and for cable diameters from 0.315" - 0.512". Operating temperatures from -40°C to +100°C. Borehole ø 0.807".

Supply 1 cable grommet

Close

C2320137

Cable grommet
product added to your basket
EPDM
light gray RAL 7035
IP 67

Accessory "wall/holder"

C2203128 Fastening elements to DIN-Rails

C2203128

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 4.724".

Supply 2 fastening elements, assembly kit

Close

C2203128

Fastening elements to DIN-Rails
product added to your basket
PA 6
light gray RAL 7035
C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Close

C2299028

Wall mounting brackets
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 7.874" x 11.811" and 9.449" x 14.173".

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

Close

C2299031

Securing hinge for the cover
product added to your basket
PP
natural-colored
C2299088 Hinge

C2299088

Hinge For cases: 4.724", 6.299", 7.874" and 9.449" length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Close

C2299088

Hinge
product added to your basket
PA 6
light gray RAL 7035

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket
A0308031 Self-tapping screws 0.118" x 0.315" (PZ1)

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1)
product added to your basket
A0308132 Self-tapping screw 0.118" x 0.315" (T10)

A0308132

Self-tapping screw 0.118" x 0.315" (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 0.118" x 0.315" (T10)
product added to your basket
Stainless steel

Accessory

C2203123 Cover strips 4.724"

C2203123

Cover strips 4.724" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203123

Cover strips 4.724"
product added to your basket
PC (UL 94 HB)
silver gray RAL 7001
C2203124 Cover strips 4.724"

C2203124

Cover strips 4.724" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203124

Cover strips 4.724"
product added to your basket
PC (UL 94 HB)
red RAL 3020
C2203125 Cover strips 4.724"

C2203125

Cover strips 4.724" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203125

Cover strips 4.724"
product added to your basket
PC (UL 94 HB)
yellow RAL 1023
C2203126 Cover strips 4.724"

C2203126

Cover strips 4.724" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203126

Cover strips 4.724"
product added to your basket
PC (UL 94 HB)
green RAL 6024
C2203127 Cover strips 4.724"

C2203127

Cover strips 4.724" Optional supplies to the light gray colored standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203127

Cover strips 4.724"
product added to your basket
PC (UL 94 HB)
blue RAL 5017
C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Close

C2299018

Case feet
product added to your basket
TPE (UL 94 HB)
C2299058 PCB support

C2299058

PCB support For mounting pre-assembled PCB units. Suitable for: 7.874" x 4.724" for Eurocard size and all other cases width 4.724".

Supply 2 PCB support, assembly kit (threaded bushes, screws)

Close

C2299058

PCB support
product added to your basket
PC (UL 94 HB)
light gray RAL 7035
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 3.150" and width 6.299".

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Close

C2299068

PCB support
product added to your basket
PC (UL 94 HB)
light gray RAL 7035

Customizing options for C2112201

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info

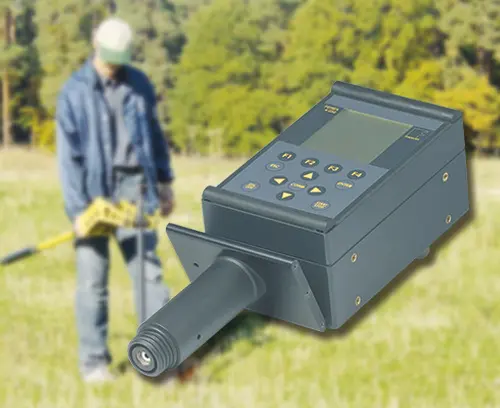

  • Application Examples
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 66
Color
light gray RAL 7035
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
7.874″
200 mm
Width
4.724″
120 mm
Height
3.543″
90 mm
PCB length, base
6.299″
160 mm
PCB width, base
4.134″
105 mm
PCB length, top
6.299″
160 mm
PCB width, top
4.134″
105 mm
Keypad length
6.390″
162.3 mm
Keypad width
4.154″
105.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
504 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
