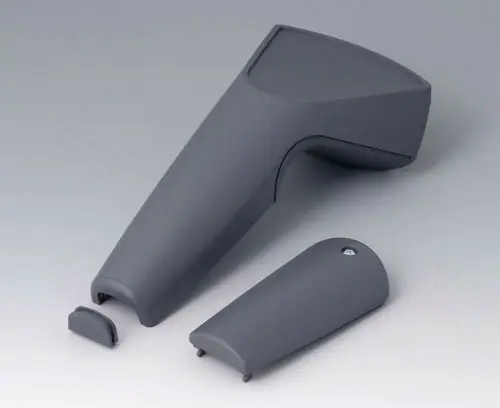

A9056108 SENSO-CASE M
Scroll

A9056108

SENSO-CASE M

Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable.

Supply

Top and bottom part , molded part, battery compartment lid, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9056108

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "battery"

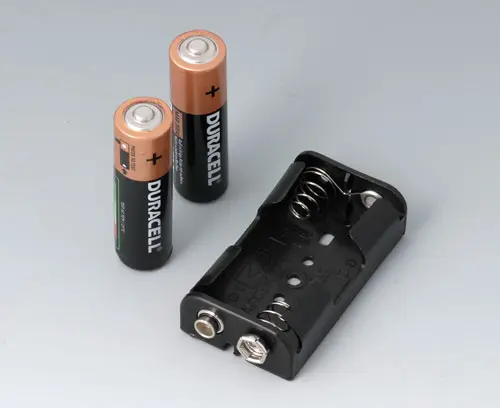

A9156001 Battery holder, 2 x AA

A9156001

Battery holder, 2 x AA For 2 x 1.5 V mignon-cells (AA). Contacts suitable for plug-in contact (sep. asseccory).

Supply 1 battery holder

Close

A9156001

Battery holder, 2 x AA
product added to your basket
PP
black RAL 9005

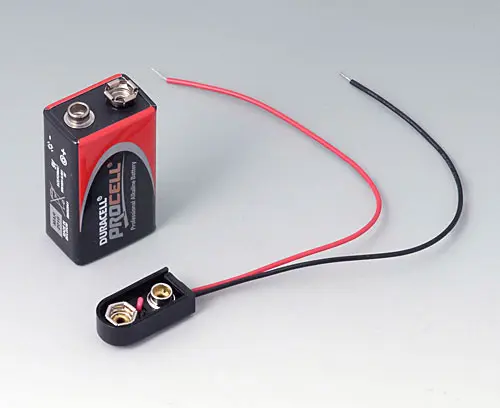

A9156002 Plug-in contact, 1 x 9 V

A9156002

Plug-in contact, 1 x 9 V Version: With protective case. Cable length approx. 5.984". Contact diameters 0.224"/0.209".
Application: suitable for 9 V flat battery or battery holder A9156001.

Supply 1 plug-in contact

Close

A9156002

Plug-in contact, 1 x 9 V
product added to your basket

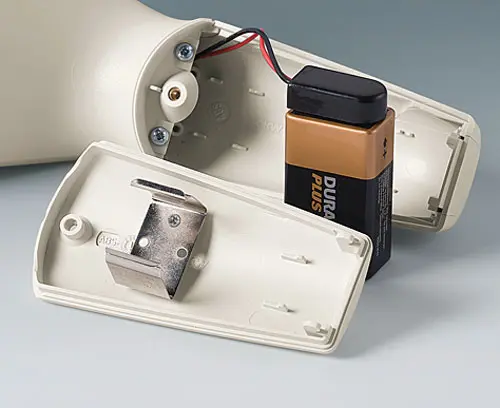

A9156003 Battery holder, 1 x 9 V

A9156003

Battery holder, 1 x 9 V For 1 x 9 V flat battery.

Supply 1 battery holder, 2 self-tapping screws

Close

A9156003

Battery holder, 1 x 9 V
product added to your basket
Steel
nickel-plated

Accessory "protection"

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Close

A9166004

Set of pull-relief
product added to your basket
PA 6
volcano
A9166101 Cable strain, 0.197" - 0.232"

A9166101

Cable strain, 0.197" - 0.232" The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 0.197" - 0.232".

Supply 1 cable strain relief

Close

A9166101

Cable strain, 0.197" - 0.232"
product added to your basket
SEBS (TPE)
volcano
A9166131 Cable strain, 0.165" - 0.197"

A9166131

Cable strain, 0.165" - 0.197" The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 0.165" - 0.197".

Supply 1 cable strain relief

Close

A9166131

Cable strain, 0.165" - 0.197"
product added to your basket
SEBS (TPE)
volcano

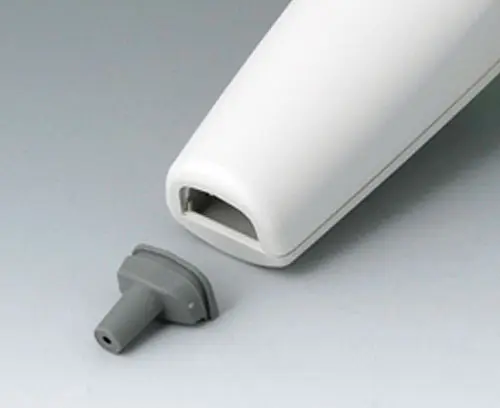

A9166161 Cable strain, 0.134" - 0.165"

A9166161

Cable strain, 0.134" - 0.165" The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 0.134" - 0.165".

Supply 1 cable strain relief

Close

A9166161

Cable strain, 0.134" - 0.165"
product added to your basket
SEBS (TPE)
volcano

Accessory "wall/holder"

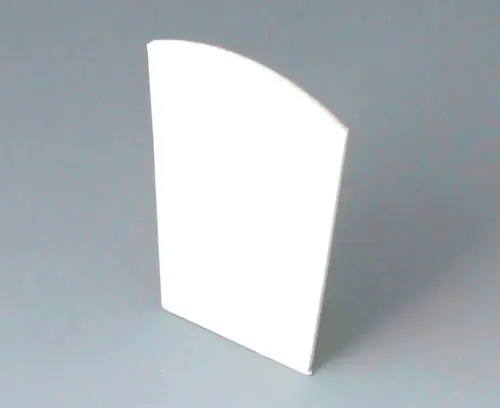

A9156005 Adhesive foil

A9156005

Adhesive foil For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

A9156005

Adhesive foil
product added to your basket

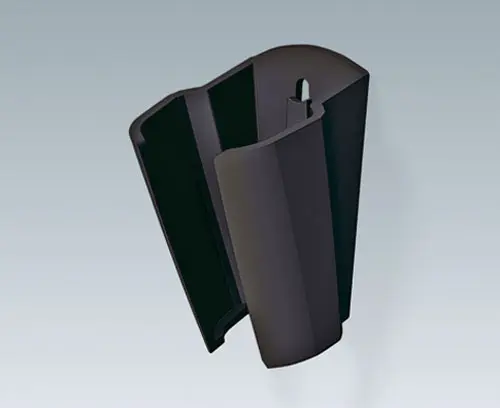

A9156308 Holder

A9156308

Holder Special holder for SENSO-CASE for safe storing of cable-connected or wireless applications. Fixing at the wall or other surfaces by commercial screws or by adhesive foil (sep. article).

Supply 1 holder

Close

A9156308

Holder
product added to your basket
ABS (UL 94 HB)
lava

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 0.098", max. wall thickness 0.157", location hole ø 0.197" required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your basket
PA 6
volcano

Accessory "screws"

A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket

Customizing options for A9056108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info

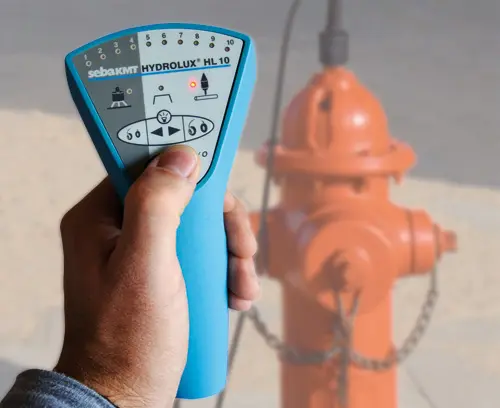

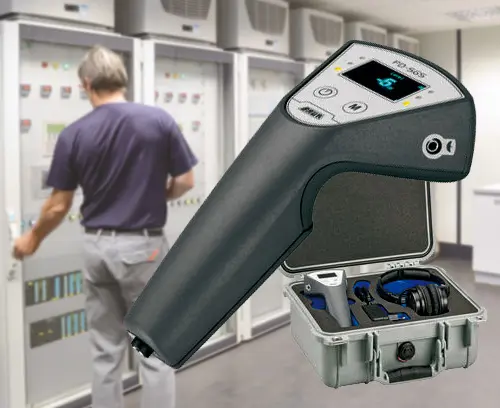

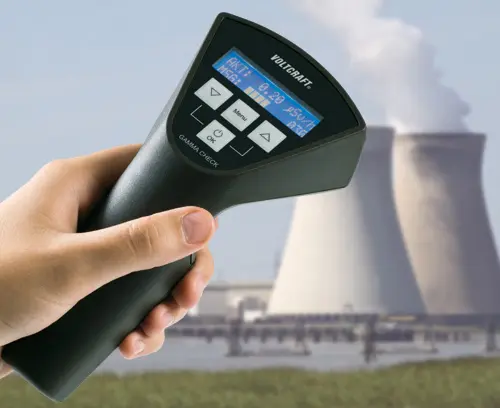

  • Application Examples
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 41
Color
lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
7.087″
180 mm
Width
3.386″
86 mm
Height
1.772″
45 mm
PCB length, top
2.913″
74 mm
PCB width, top
2.913″
74 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
94 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
