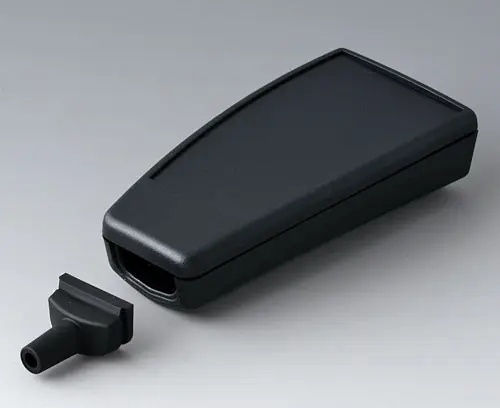

A9066329 SMART-CASE M, Vers. III
Scroll

A9066329

SMART-CASE M, Vers. III

Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version

Without battery compartment, bottom part with cable strain (0.197" - 0.232")

Supply

Case-top and base, cable strain, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9066329

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "protection"

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Close

A9166004

Set of pull-relief
product added to your basket
PA 6
volcano

Accessory "wall/holder"

A9166005 Adhesive foil M

A9166005

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

A9166005

Adhesive foil M
product added to your basket
A9166309 Holder M

A9166309

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 0.209" - 0.323". The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Close

A9166309

Holder M
product added to your basket
ABS (UL 94 HB)
black RAL 9005
A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 1.260" and corresponding suspensions. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Close

A9167029

Holding clamp
product added to your basket
PA 6 (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9167019 Belt/pocket clip

A9167019

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Close

A9167019

Belt/pocket clip
product added to your basket
PA 6 (UL 94 HB)
black RAL 9005

Accessory "screws"

A0304031 Self-tapping screws 0.087" x 0.197" (PZ1)

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1)
product added to your basket

Customizing options for A9066329

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Enclosure
SEBS (TPE)
Cable gland
Protection class
IP 40
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
3.780″
96 mm
Width
1.850″
47 mm
Height
0.945″
24 mm
PCB length, base
2.283″
58 mm
PCB width, base
1.496″
38 mm
PCB length, top
2.402″
61 mm
PCB width, top
1.575″
40 mm
Keypad length
2.937″
74.6 mm
Keypad width
1.587″
40.3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
38 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
