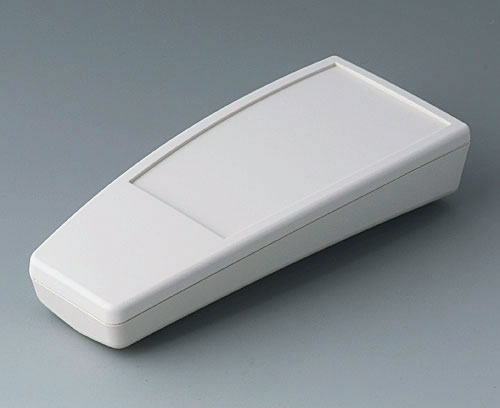

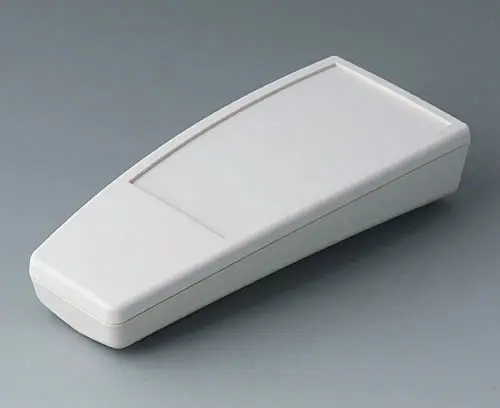

A9068117 SMART-CASE XL, Vers. II
Scroll

A9068117

SMART-CASE XL, Vers. II

Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version

Without battery compartment

Supply

Case-top and base, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9068117

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "station"

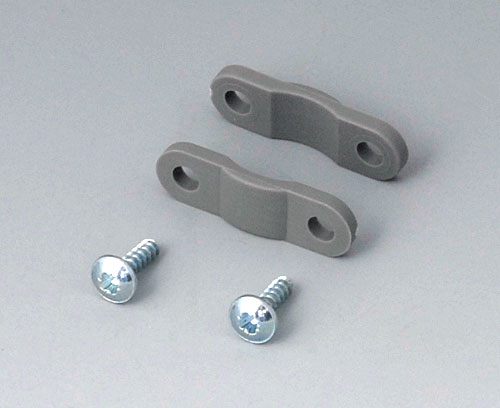

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Close

A9166004

Set of pull-relief
product added to your basket
PA 6
volcano

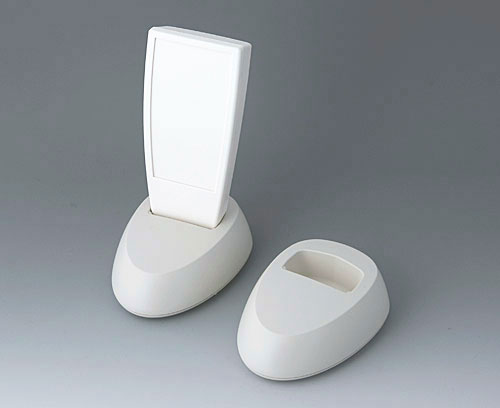

A9168037 Station XL

A9168037

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Close

A9168037

Station XL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

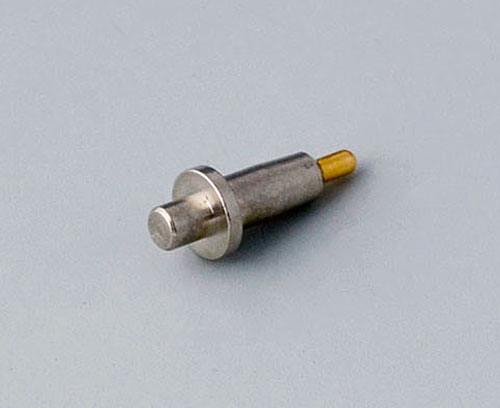

A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 0.059" stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Close

A9193032

Spring contact
product added to your basket

Accessory "protection"

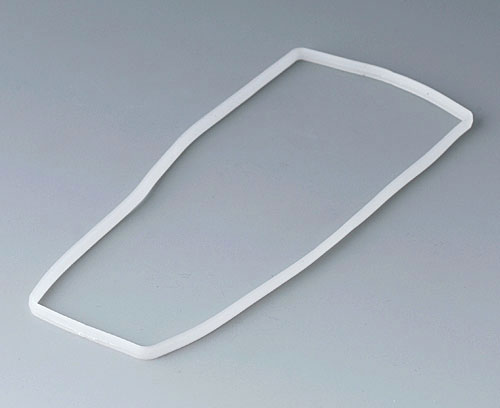

A9168002 Sealing XL

A9168002

Sealing XL Application: For a higher protection class. For the versions II - V.

Supply 1 sealing

Close

A9168002

Sealing XL
product added to your basket

Accessory "wall/holder"

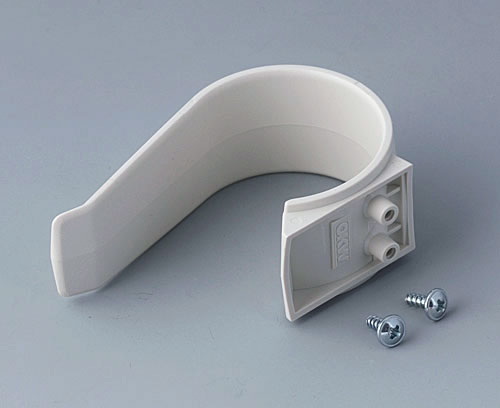

A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 1.260" and corresponding suspensions. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Close

A9167027

Holding clamp
product added to your basket
PA 6 (UL 94 HB)
off-white RAL 9002

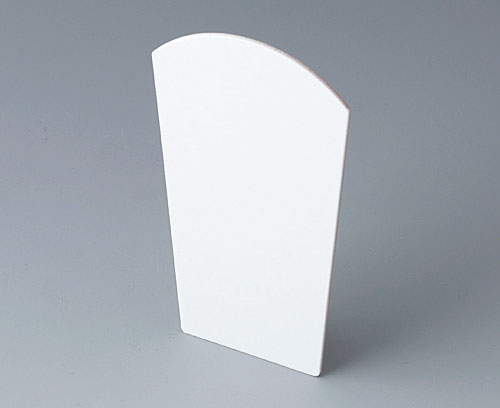

A9168005 Adhesive foil XL

A9168005

Adhesive foil XL For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

A9168005

Adhesive foil XL
product added to your basket

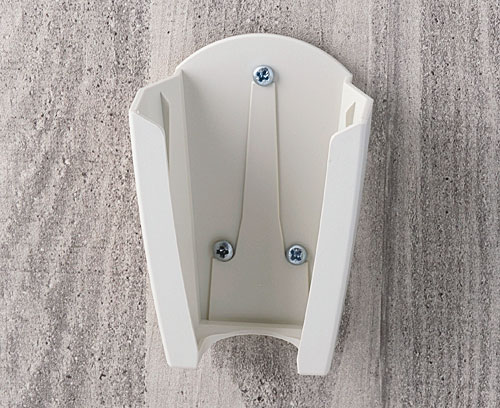

A9168307 Holder XL

A9168307

Holder XL Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 0.209" - 0.323".

Supply 1 holder

Close

A9168307

Holder XL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

Accessory "carrying"

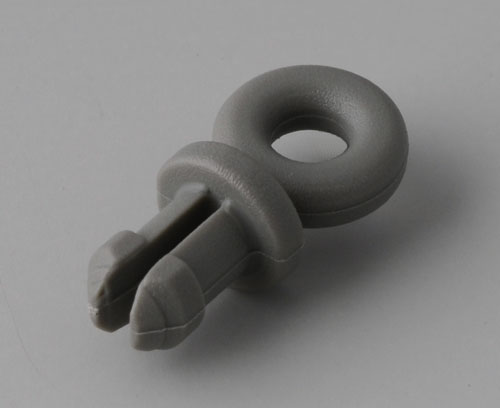

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 0.098", max. wall thickness 0.157", location hole ø 0.197" required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your basket
PA 6
volcano

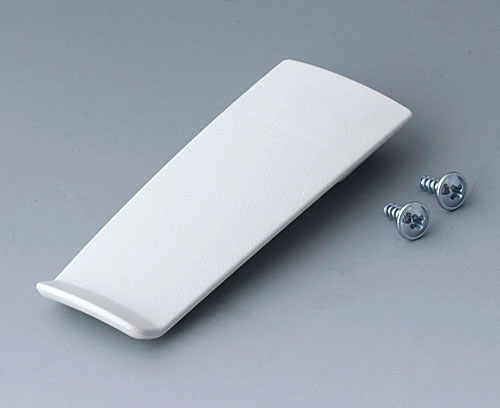

A9167017 Belt/pocket clip

A9167017

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Close

A9167017

Belt/pocket clip
product added to your basket
PA 6 (UL 94 HB)
off-white RAL 9002

Accessory "screws"

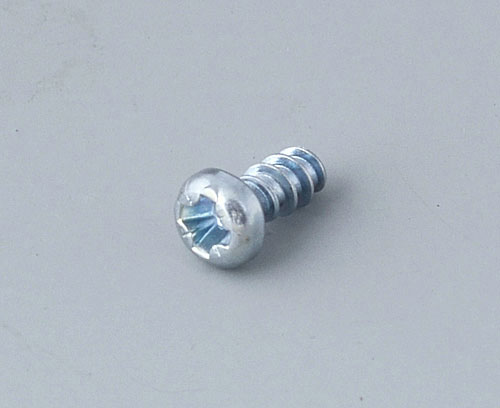

A0304031 Self-tapping screws 0.087" x 0.197" (PZ1)

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1)
product added to your basket

Accessory

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Close

A9193030

Contact pin
product added to your basket
gold-plated

Customizing options for A9068117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Application Examples
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 65 opt.
Necessary accessories: sealing, IP 40
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
6.614″
168 mm
Width
2.929″
74.4 mm
Height
1.394″
35.4 mm
PCB length, base
5.000″
127 mm
PCB width, base
2.402″
61 mm
PCB length, top
5.197″
132 mm
PCB width, top
2.402″
61 mm
Keypad length
4.350″
110.5 mm
Keypad width
2.421″
61.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
94 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
