C6404107 SMART-PANEL S114
Scroll

C6404107

SMART-PANEL S114

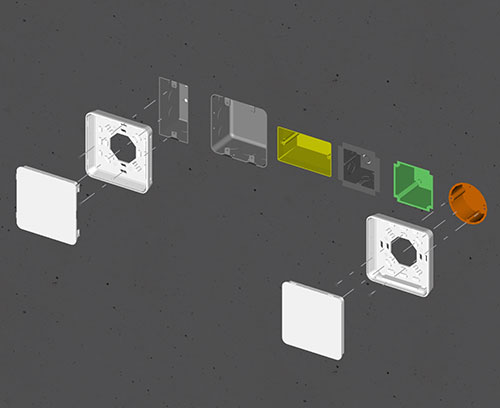

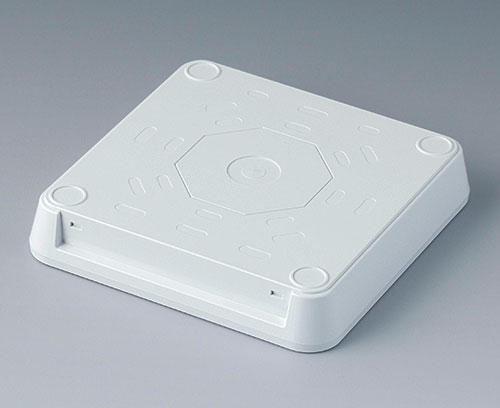

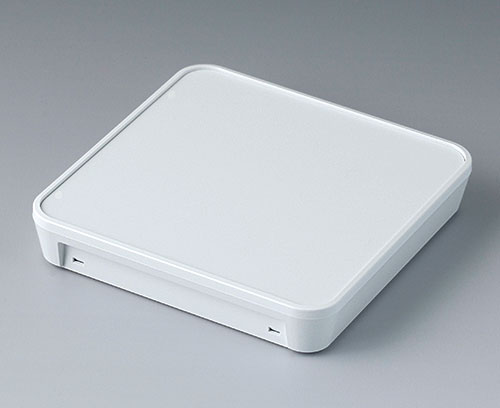

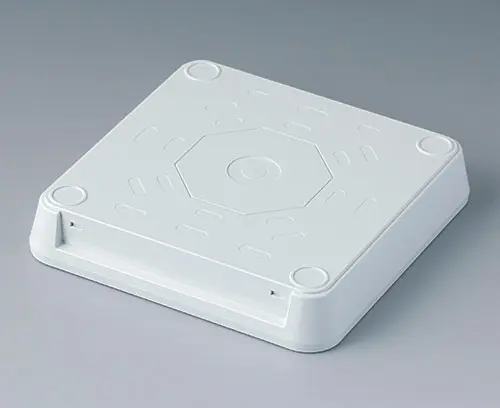

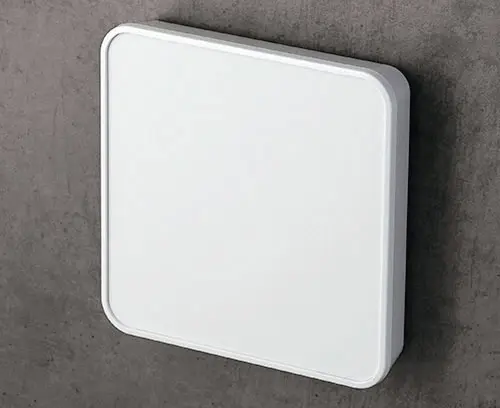

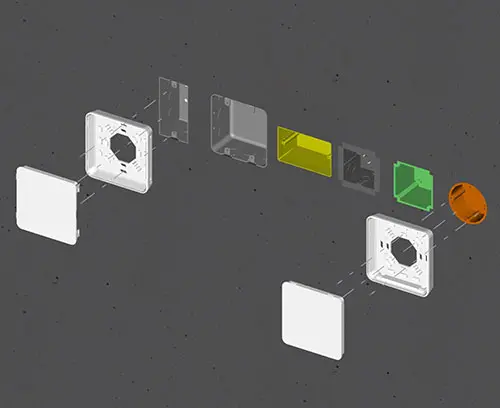

Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply

Top and bottom parts

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for C6404107

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "screws"

A0325060 Self-tapping screw 0.098" x 0.236" (T8)

A0325060

Self-tapping screw 0.098" x 0.236" (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 0.098" x 0.236" (T8)
product added to your basket
Stainless steel

Accessory

A9210180 Anti-slide feet 0.374" x 0.150"

A9210180

Anti-slide feet 0.374" x 0.150" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210180

Anti-slide feet 0.374" x 0.150"
product added to your basket
transparent
C6502010 Opening tool set

C6502010

Opening tool set Special tool set for SMART-PANEL enclosures. The set includes two identical tools which are used to easily and reliably open the enclosures. We recommend using both opening tools together at the same time. The tools are moulded in plastic and have a specially designed tip allowing them to be used precisely in the narrow release apertures on the underside of the enclosure. The set is ideal for on-site service technicians allowing them to gently open sensitive electronic/electrical equipment when needed.

Supply 2 opening tools

Close

C6502010

Opening tool set
product added to your basket
ASA+PC (UL 94 V-0)
traffic white RAL 9016

Customizing options for C6404107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Application Examples
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 40
Color
traffic white RAL 9016
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
4.488″
114 mm
Width
4.488″
114 mm
Height
0.839″
21.3 mm
PCB length, base
3.858″
98 mm
PCB width, base
3.780″
96 mm
Keypad length
4.272″
108.5 mm
Keypad width
4.272″
108.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
100 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
