C8017222 SOLID-BOX 175
Scroll

C8017222

SOLID-BOX 175

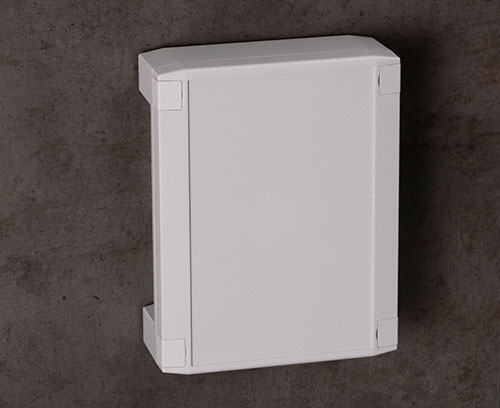

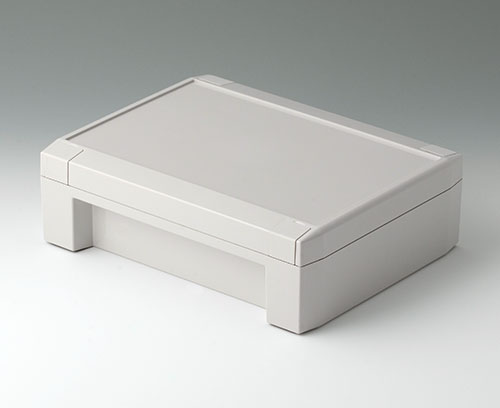

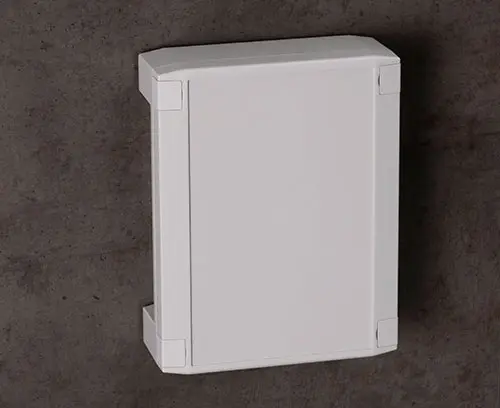

Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil.
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-molded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.

Supply

1 bottom and 1 top part with seal, 4 design trims, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for C8017222

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "wall/holder"

C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 7.874" x 11.811" and 9.449" x 14.173".

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

Close

C2299031

Securing hinge for the cover
product added to your basket
PP
natural-colored
C8100360 Internal hinge set

C8100360

Internal hinge set Additively manufactured hinge for holding the top part when opening the enclosure.
Easy installation in existing fastening pillars on the long sides of the bottom and top parts.

Supply 2 hinges, 4 screws

Close

C8100360

Internal hinge set
product added to your basket

Accessory "screws"

A0308132 Self-tapping screw 0.118" x 0.315" (T10)

A0308132

Self-tapping screw 0.118" x 0.315" (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 0.118" x 0.315" (T10)
product added to your basket
Stainless steel
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket
A0399T20 Torx T20 screwdriver

A0399T20

Torx T20 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T20

Torx T20 screwdriver
product added to your basket

Accessory

C8100188 Set of enclosure feet

C8100188

Set of enclosure feet Ensure reliable positioning when using SOLID-BOX as a table-top enclosure. The feet are inserted into the bottom part of the housing from below and are self securing.

Supply 4 enclosure feet

Close

C8100188

Set of enclosure feet
product added to your basket
SEBS (TPE)
volcano

Customizing options for C8017222

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PC+ABS (UL 94 V-0)
Protection class
IP 66, IP 67, IK 08
Color
light gray RAL 7035
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
8.858″
225 mm
Width
6.890″
175 mm
Height
2.756″
70 mm
PCB length, base
8.465″
215 mm
PCB width, base
5.197″
132 mm
PCB length, top
8.465″
215 mm
PCB width, top
5.197″
132 mm
Keypad length
8.220″
208.8 mm
Keypad width
5.236″
133 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
598 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
