B2803016 STYLE-CASE M
Scroll

B2803016

STYLE-CASE M

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.

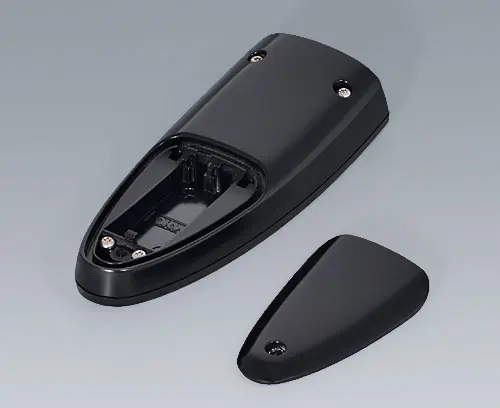

Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply

Top and bottom part, battery compartment lid, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B2803016

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "battery"

A9190020 Set of battery clips

A9190020

Set of battery clips For contacting 2 AAA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Close

A9190020

Set of battery clips
product added to your basket
Steel
nickel-plated

Accessory "protection"

B2903111 Sealing kit M

B2903111

Sealing kit M Application: for increasing the protection class, of STYLE-CASE M.

Supply 2 sealings kit (enclosure, battery compartment)

Close

B2903111

Sealing kit M
product added to your basket
TPV 50A

Accessory "wall/holder"

B2903031 Adhesive foil M

B2903031

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

B2903031

Adhesive foil M
product added to your basket
B2903039 Holder M

B2903039

Holder M

Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2903039

Holder M
product added to your basket
ASA (UL 94 HB)
black RAL 9005

Accessory "screws"

A0304031 Self-tapping screws 0.087" x 0.197" (PZ1)

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1)
product added to your basket
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket

Customizing options for B2803016

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PMMA (IR) (UL 94 HB)
Protection class
IP 65 opt.
Necessary accessories: sealing kit, IP 40
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
5.787″
147 mm
Width
2.205″
56 mm
Height
1.063″
27 mm
PCB length, base
2.362″
60 mm
PCB width, base
1.024″
26 mm
PCB length, top
2.559″
65 mm
PCB width, top
1.614″
41 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
74 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
