ER126059 SYNERGY R120
Scroll

ER126059

SYNERGY R120

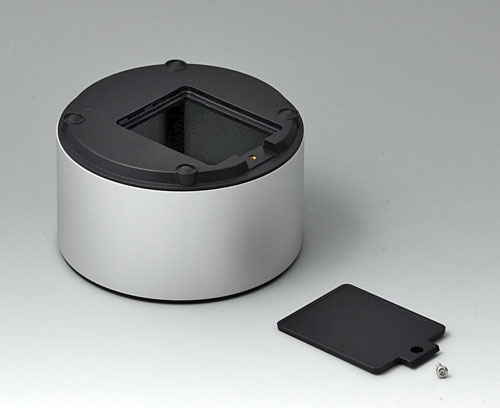

4-part enclosure for many different applications. Sturdy frame made of aluminum, glass bead-blasted and anodized. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply

Top part, bottom part, lid, aluminum profile, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for ER126059

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "battery"

A9193033 Polarity reversal protection device, positive terminal AA

A9193033

Polarity reversal protection device, positive terminal AA

For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Close

A9193033

Polarity reversal protection device, positive terminal AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9193034 Polarity reversal protection device, positive terminal AAA

A9193034

Polarity reversal protection device, positive terminal AAA For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Close

A9193034

Polarity reversal protection device, positive terminal AAA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9193035 Battery clip, AA

A9193035

Battery clip, AA For AA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Close

A9193035

Battery clip, AA
product added to your basket
Steel
nickel-plated
A9193036 Battery clip, AAA

A9193036

Battery clip, AAA For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Close

A9193036

Battery clip, AAA
product added to your basket
Steel
nickel-plated
A9193037 Button cell holder, Ø 0.787"

A9193037

Button cell holder, Ø 0.787" For button cells with Ø 0.787", e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193037

Button cell holder, Ø 0.787"
product added to your basket
A9193038 Button cell holder, Ø 0.906"

A9193038

Button cell holder, Ø 0.906" For button cells with Ø 0.906", e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193038

Button cell holder, Ø 0.906"
product added to your basket
A9193039 Button cell holder, Ø 0.472"

A9193039

Button cell holder, Ø 0.472" For button cells with Ø 0.472", e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193039

Button cell holder, Ø 0.472"
product added to your basket
A9193040 Button cell holder, Ø 0.630"

A9193040

Button cell holder, Ø 0.630" For button cells with Ø 0.630", e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Close

A9193040

Button cell holder, Ø 0.630"
product added to your basket
EZ040609 Battery compartment, 3 x AA

EZ040609

Battery compartment, 3 x AA For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply 1 battery compartment, set of battery clips

Close

EZ040609

Battery compartment, 3 x AA
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005

Accessory "wall/holder"

EZ030109 Wall suspension element

EZ030109

Wall suspension element Optional wall mounting with only one screw.

Supply 1 holder and cover plate, 2 anti-slide feet

Close

EZ030109

Wall suspension element
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005

Accessory "screws"

A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket
EZ031209 Extender kit

EZ031209

Extender kit For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.

Supply 4 extender, 4 screws (Torx 8)

Close

EZ031209

Extender kit
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005

Customizing options for ER126059

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum AlMgSi 0.5
Frame
ASA+PC (UL 94 V-0)
Plastic parts
Protection class
IP 40
Color
Frame matt anodized,
Plastic parts black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Diameter
⌀ 4.724″
120 mm
Height
2.756″
70 mm
PCB diameter, base
⌀ 4.213″
107 mm
PCB diameter, top
⌀ 4.370″
111 mm
Keypad diameter
⌀ 4.016″
102 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
263 g
Customs tariff number
(OKW product)
76042100
Country of manufacture
Germany
