A9257507 Case feet, Vers. II
Scroll

A9257507

Case feet, Vers. II

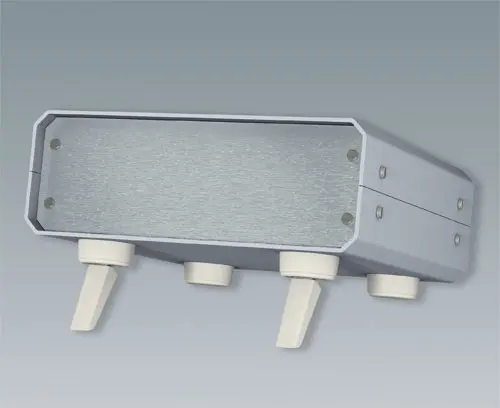

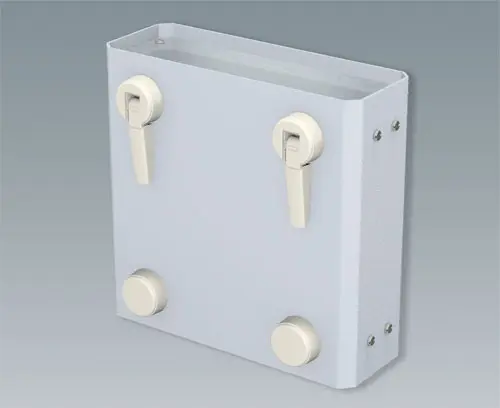

Universal case feet for all types of plastic and metal enclosures with max. 0.118" wall thickness. The tilt legs provide an ergonomic reading angle of the unit. It simply snaps into the feet section and is retractable.

Version

With tilt legs

Supply

4 foot moldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9257507

Please select the product details you would like to include in the PDF.

Close
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Diameter
⌀ 1.181″
30 mm
Height
0.472″
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

  • PDF-File (without registration) 174 KB
  • AutoCAD DWG-File 311 KB
  • AutoCAD DXF-File 952 KB

  • 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view...) 2,223 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

  • 00020305.x_t 1,495 KB
  • 00020305.step 2,576 KB
  • 00020305.sat 6,914 KB
Weight/1 part
32 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
