B1075465 TOPTEC 194 F, Vers. II
Scroll

B1075465

TOPTEC 194 F, Vers. II

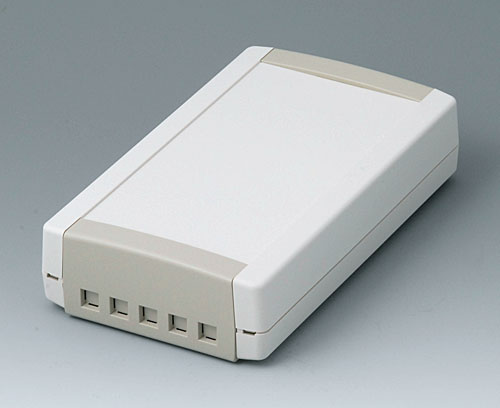

Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version

With ventilations slots

Supply

1 case-top and base, 2 end panels

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B1075465

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "wall/holder"

B1300017 Fastening element for DIN-Rails

B1300017

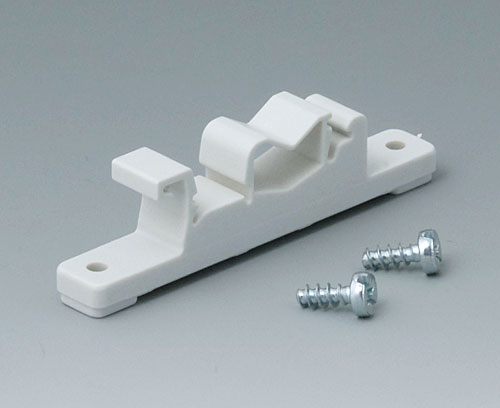

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 0.118" required.

Supply 1 piece incl, assembly kit

Close

B1300017

Fastening element for DIN-Rails
product added to your basket
PA 6
off-white RAL 9002
B1370028 Wall suspension element for Toptec 194

B1370028

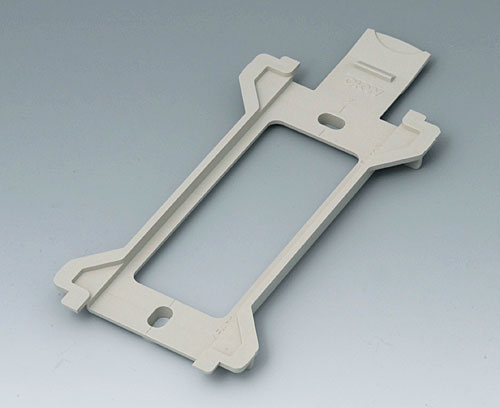

Wall suspension element for Toptec 194 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Close

B1370028

Wall suspension element for Toptec 194
product added to your basket
PC+ABS (UL 94 V-0)
pebble gray RAL 7032

Accessory "screws"

A0305031 Self-tapping screws 0.098" x 0.236" (PZ1)

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 0.098" x 0.236" (PZ1)
product added to your basket
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 0.098" x 0.236", type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
product added to your basket

Accessory

A9207150 Anti-slide feet 0.256" x 0.079"

A9207150

Anti-slide feet 0.256" x 0.079" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 0.256" x 0.079"
product added to your basket
transparent

Customizing options for B1075465

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 40
Color
Bottom and top part off-white RAL 9002,
End panels pebble gray RAL 7032
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
7.638″
194 mm
Width
4.528″
115 mm
Height
1.811″
46 mm
PCB length, base
7.205″
183 mm
PCB width, base
4.094″
104 mm
PCB length, top
6.220″
158 mm
PCB width, top
4.173″
106 mm
Keypad length
6.425″
163.2 mm
Keypad width
3.346″
85 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
206 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
