NEW LOW PROFILE DIN RAIL ENCLOSURES

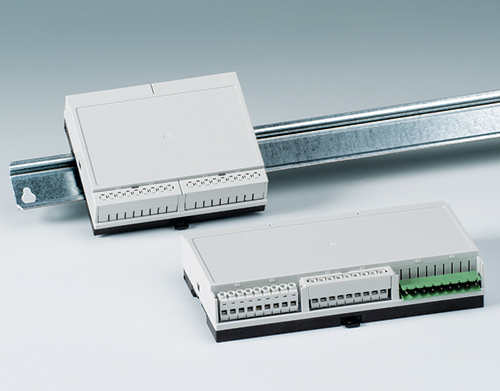

Low profile DIN rail enclosures

June 2014

SPACE SAVING DESIGN FOR DIN RAIL ELECTRONICS

OKW has extended its RAILTEC B range of DIN rail enclosures with new low profile models. RAILTEC B DIN rail enclosures are used for a wide range of applications, notably in machine building and the automotive industry. The new low profile models are designed for equipment cabinets where space is at a premium.

Their low profile also makes it easier – and therefore quicker – to install controls, displays and connectors.

RAILTEC B low profile DIN rail enclosures fit TH35 x 7.5 mm rails. They are available in four sizes: 2, 4, 6 and 9 modules. Each enclosure is molded from PPO (UL 94 V-0) for the base and PC (UL 94 V-1) for the top section. They are fully insulated and protected according to VBG4 and IEC 529/DIN VDE 0470-1.

RAILTEC B DIN rail boxes can be specified as standard in Black RAL 9005 (base) and Light Gray RAL 7035 (top). Prices for the new low profile models start at $5.

Accessories include front panels and lids, terminal guards, mounting brackets and a partition plate. RAILTEC B is also compatible with OKW’s RAILTEC-BUS system which provides common power and data connections between multiple enclosures fitted on the same DIN rail.

Customization options for RAILTEC B include CNC milling and drilling, RFI shielding, silk-screen and tampo printing of legends and logos plus assembly of components.
