NEW SMALLER EVOTEC DESIGNER CASES

Evotec designer enclosures

February 2018

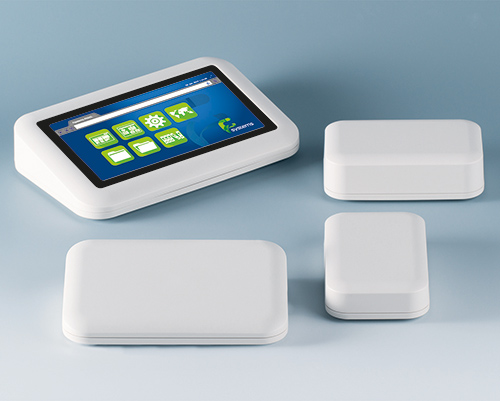

OKW’s EVOTEC designer desktop plastic enclosures are now available in a new smaller 150 size – increasing the range to three plan sizes.

EVOTEC is designed for tough working environments. Applications include measurement and control engineering, IT, medical, laboratory and environmental technology. EVOTEC can also be wall mounted for access control.

These robust enclosures feature elegant and ergonomic soft contours that make them comfortable to use. EVOTEC is moulded from ASA+PC-FR (UL 94 V-0) for enhanced UV stability and can be specified with optional IP 65 protection.

There are two versions: Version I has a flat top with a large operating area for switches, push buttons and touch displays. Version II features a smooth sloping top inclined at 12° for desktop applications (it can be specified with or without a recess to accommodate a membrane keypad or product label). The new 150 size is available only as Version I with the flat top.

All the enclosures have PCB screw pillars in the top and base. Self-adhesive rubber feet ensure stable positioning on flat surfaces. Torx assembly screws prevent tampering – making the enclosures perfect for medical electronics.

All three plan sizes (the new 150 x 93 mm and the existing 200 x 124 mm and 250 x 155 mm sizes) are available in one standard colour: off white (RAL 9002).

Accessories include an IP 65 seal, a wall mounting kit and self-tapping screws for installing PCBs.

OKW can supply EVOTEC fully customised on request. Services include: custom colours; EMC shielding; CNC machining; lacquering; water transfer, tampo or digital printing of legends and logos; installation and assembly of accessories; display windows; membrane keyboards; touchscreens and plastic and aluminium panels.

EVOTEC Technical Video

View range here >>
