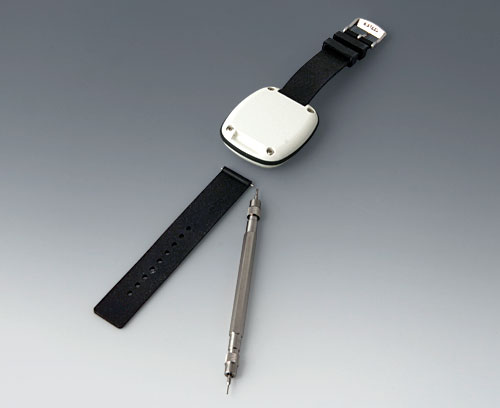

B1706203 Spring bar tool
Scroll

B1706203

Spring bar tool

Tool with "fork-shaped" end for the easy insertion and removal of the spring bars of the wrist strap, belt / pocket clip, eyelet and covers. Pointed end suitable as an instrument for pushing out pins in metal wrist straps with flexible chain links, or in buckles. (The original part may differ from the part shown in the picture.)

Supply

1 Spring bar tool

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B1706203

Please select the product details you would like to include in the PDF.

Close
  • To be used for
B1604107 BODY-CASE M, without recess

B1604107

BODY-CASE M, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1604107

BODY-CASE M, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
1.97″x1.61″x0.59″
IP 65
B1604117 BODY-CASE M, without recess

B1604117

BODY-CASE M, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1604117

BODY-CASE M, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
1.97″x1.61″x0.59″
IP 65
B1604207 BODY-CASE M, with recess

B1604207

BODY-CASE M, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1604207

BODY-CASE M, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
1.97″x1.61″x0.55″
IP 65
B1604217 BODY-CASE M, with recess

B1604217

BODY-CASE M, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1604217

BODY-CASE M, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
1.97″x1.61″x0.55″
IP 65
B1606107 BODY-CASE L, without recess

B1606107

BODY-CASE L, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1606107

BODY-CASE L, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.67″
IP 65
B1606117 BODY-CASE L, without recess

B1606117

BODY-CASE L, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1606117

BODY-CASE L, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.67″
IP 65
B1606207 BODY-CASE L, with recess

B1606207

BODY-CASE L, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1606207

BODY-CASE L, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.63″
IP 65
B1606217 BODY-CASE L, with recess

B1606217

BODY-CASE L, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1606217

BODY-CASE L, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.63″
IP 65
B1608107 BODY-CASE XL, without recess

B1608107

BODY-CASE XL, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1608107

BODY-CASE XL, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x2.20″x0.71″
IP 65
B1608117 BODY-CASE XL, without recess

B1608117

BODY-CASE XL, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1608117

BODY-CASE XL, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x2.20″x0.71″
IP 65
B1608207 BODY-CASE XL, with recess

B1608207

BODY-CASE XL, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1608207

BODY-CASE XL, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x2.20″x0.67″
IP 65
B1608217 BODY-CASE XL, with recess

B1608217

BODY-CASE XL, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1608217

BODY-CASE XL, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x2.20″x0.67″
IP 65
  • Technical Data
  • Purchasing Data
Material
Stainless steel
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
73182900
Country of manufacture
China
