Body-Case

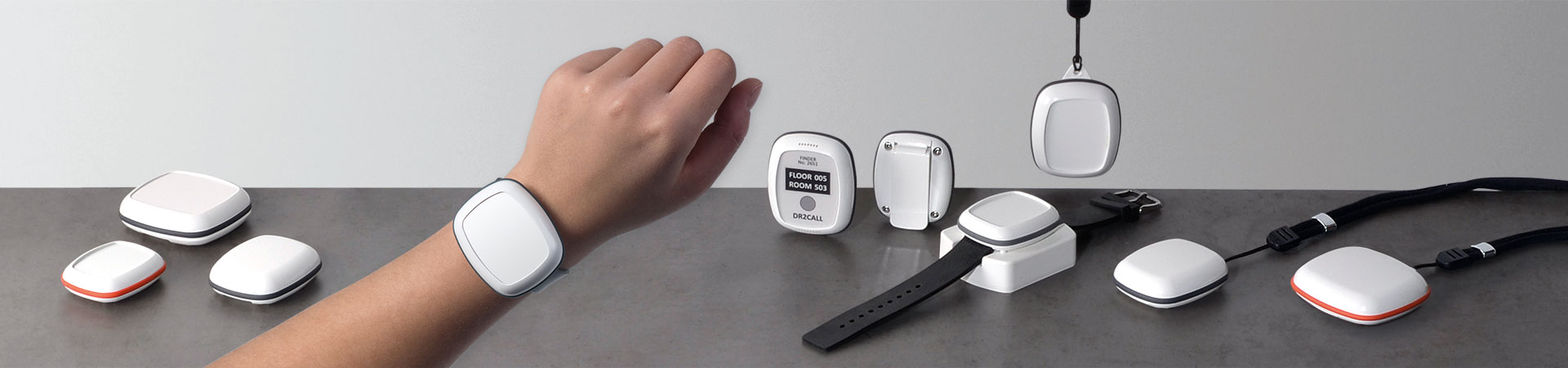

Small enclosure with flair – comfortable to wear on the body

OKW’s BODY-CASE is the new fully "wearable" standard plastic enclosure. The design is perfect for so-called "wearable technologies": on your arm, around your neck, clipped to a shirt or trouser pocket, or carried loose in an article of clothing.

  • special plastic enclosures for components and sensors that are worn on the body or close to the body, available in three sizes
  • fulfils its function in the simplest way, without restricting the user in his or her activities and without being conspicuous
  • modern appearance with highly polished surfaces and a matt TPV sealing ring

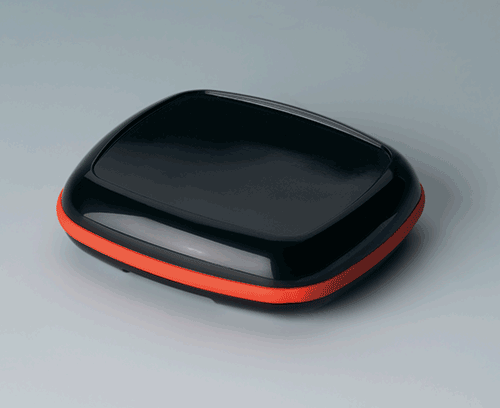

  • easy differentiation through the use of individual, exclusive watch straps (18 mm wide)

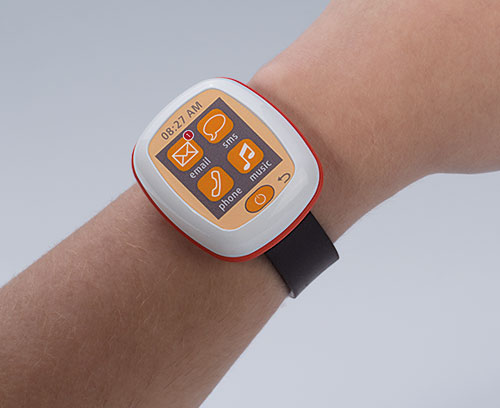

  • easy operation with the help of pushbuttons or touchscreens, at the press of a button and with the help of voice commands or gestures
  • wireless networking
  • high protection class IP 65
  • moulded in ASA plastic with a high UV protection
  • internal power supply with round or button cells which are mounted directly on the PCB – alternatively, the use of a rechargeable battery with receiving charging coils for charging the device inductively

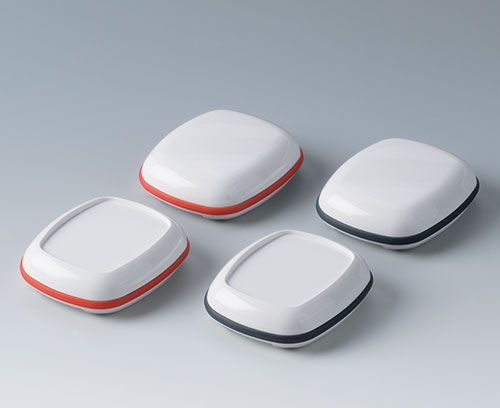

  • top part with / without recessed surface for the protection of a decor foil or membrane keyboard

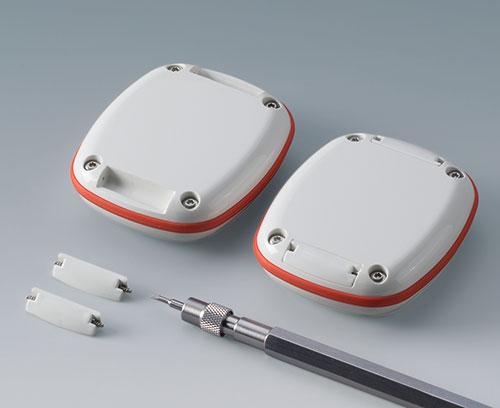

  • enclosure assembly with four high-quality stainless steel screws with Torx drive; two spring bars for mounting eyelet/pocket clip kit included in the supply of the enclosure

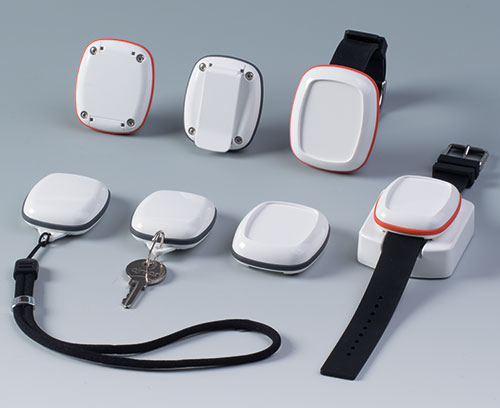

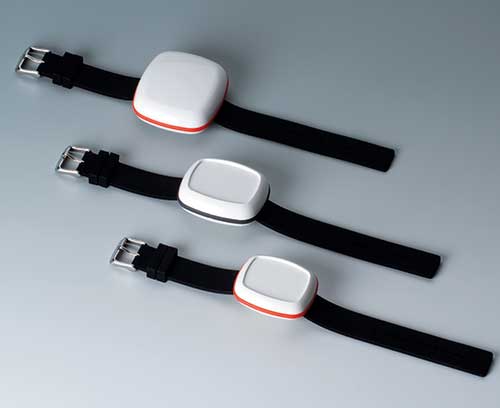

  • optional accessories, suitable for sizes L and M: wrist strap, eyelet/pocket clip kit, station etc.

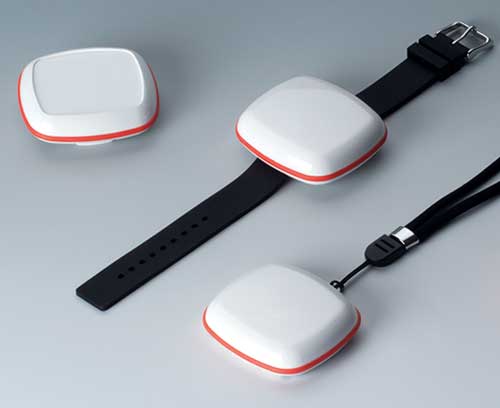

  • optional accessories, suitable for size XL: wrist strap and eyelet/pocket clip kit
Generate PDF
  • Video
  • Application Examples

Application fields

  • Mobile data recording and data transmission

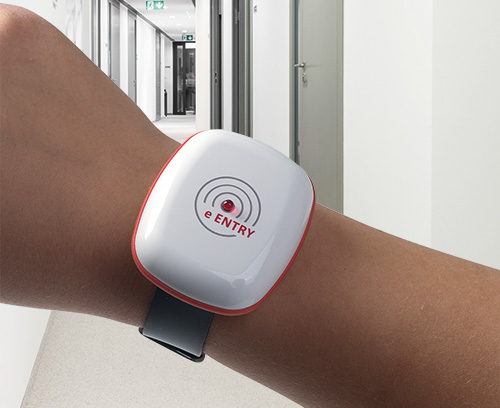

  • Wearables
  • IoT/ IIoT

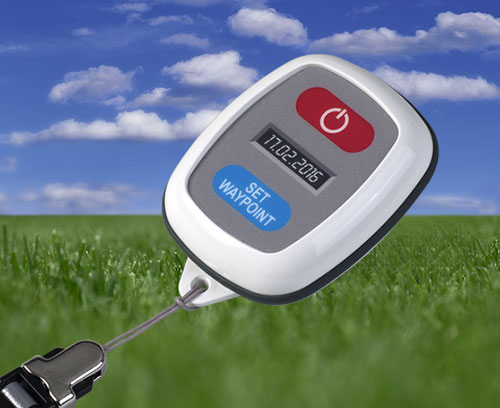

  • Tracking and monitoring equipment

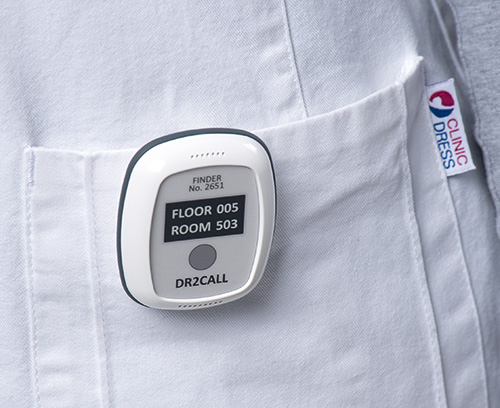

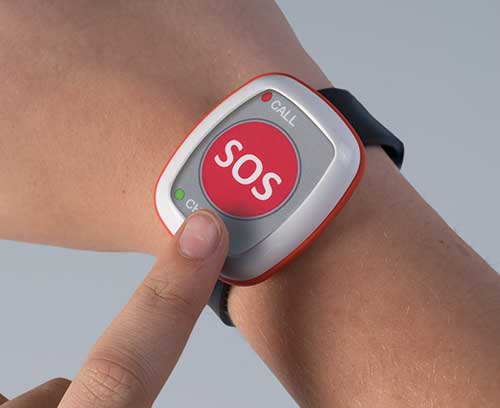

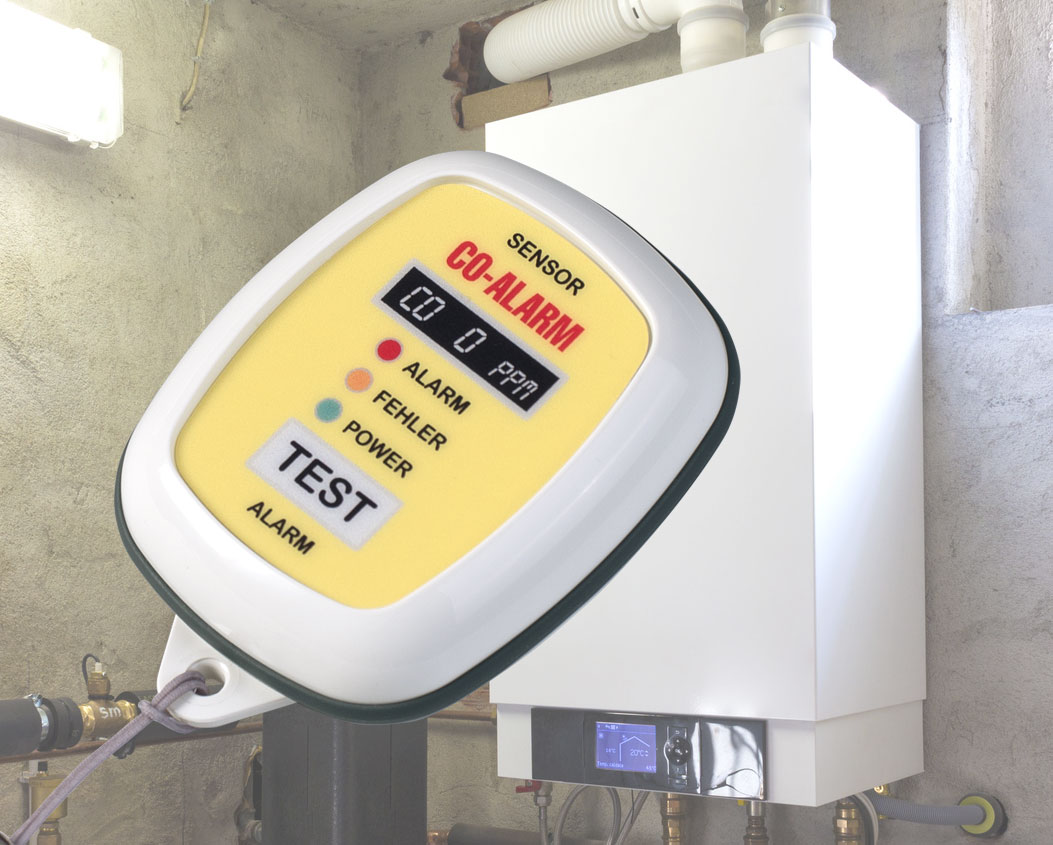

  • Emergency call and notification systems
  • Bio-feedback sensors in the fields of health care, medical technology, in therapeutic and social fields
  • Leisure and sports
  • Digital communication technology
  • Stock and sales logging
  • Safety engineering
  • Measuring and control technology
  • Automation
  • Jobs where safety with permanent localisation is required
  • Browse Full List
  • Accessories
  • View Customizing Options
B1604107 BODY-CASE M, without recess

B1604107

BODY-CASE M, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1604107

BODY-CASE M, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
1.97″x1.61″x0.59″
IP 65

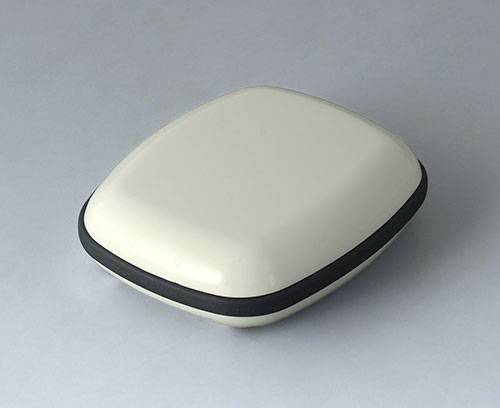

B1604117 BODY-CASE M, without recess

B1604117

BODY-CASE M, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1604117

BODY-CASE M, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
1.97″x1.61″x0.59″
IP 65

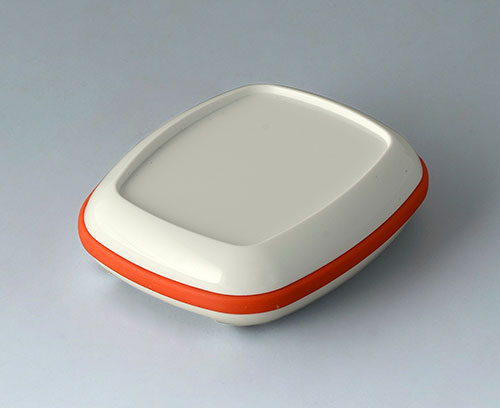

B1604207 BODY-CASE M, with recess

B1604207

BODY-CASE M, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1604207

BODY-CASE M, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
1.97″x1.61″x0.55″
IP 65
B1604217 BODY-CASE M, with recess

B1604217

BODY-CASE M, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1604217

BODY-CASE M, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
1.97″x1.61″x0.55″
IP 65

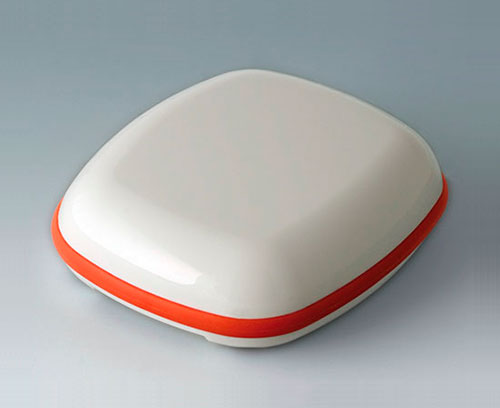

B1606107 BODY-CASE L, without recess

B1606107

BODY-CASE L, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1606107

BODY-CASE L, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.67″
IP 65

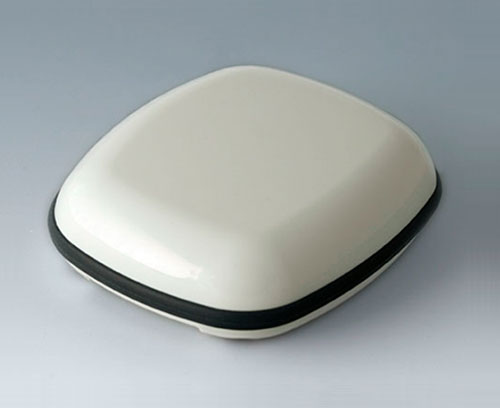

B1606117 BODY-CASE L, without recess

B1606117

BODY-CASE L, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1606117

BODY-CASE L, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.67″
IP 65

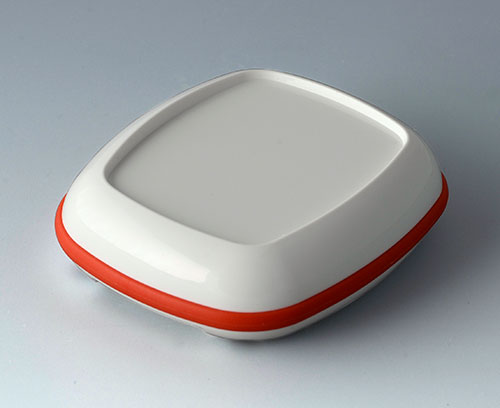

B1606207 BODY-CASE L, with recess

B1606207

BODY-CASE L, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1606207

BODY-CASE L, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.63″
IP 65

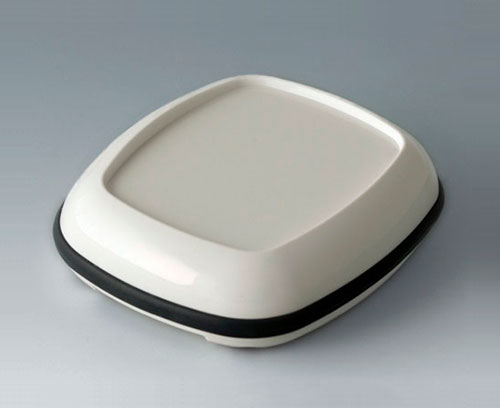

B1606217 BODY-CASE L, with recess

B1606217

BODY-CASE L, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1606217

BODY-CASE L, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.17″x1.81″x0.63″
IP 65

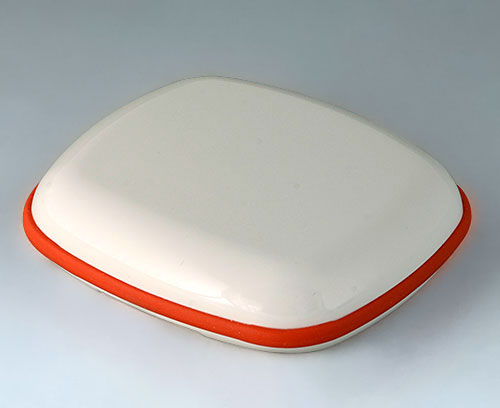

B1608107 BODY-CASE XL, without recess

B1608107

BODY-CASE XL, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1608107

BODY-CASE XL, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x2.20″x0.71″
IP 65

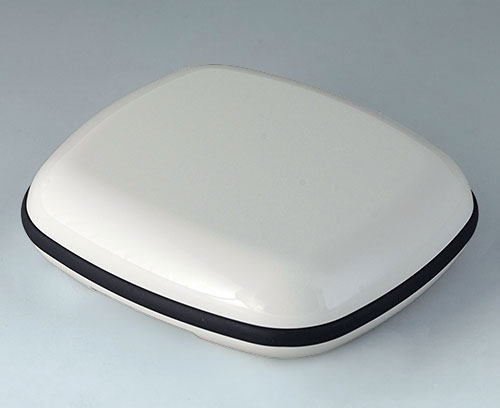

B1608117 BODY-CASE XL, without recess

B1608117

BODY-CASE XL, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1608117

BODY-CASE XL, without recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x2.20″x0.71″
IP 65

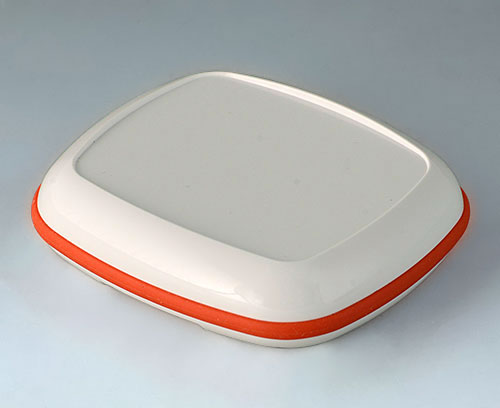

B1608207 BODY-CASE XL, with recess

B1608207

BODY-CASE XL, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1608207

BODY-CASE XL, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x2.20″x0.67″
IP 65

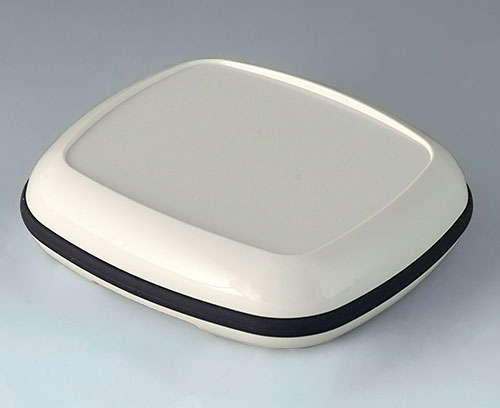

B1608217 BODY-CASE XL, with recess

B1608217

BODY-CASE XL, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Close

B1608217

BODY-CASE XL, with recess
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x2.20″x0.67″
IP 65
A0325080 Self-tapping screws 0.098" x 0.315" (PZ1)

A0325080

Self-tapping screws 0.098" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325080

Self-tapping screws 0.098" x 0.315" (PZ1)
product added to your basket
A0399T06 Torx T6 screwdriver

A0399T06

Torx T6 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T6 type screws. (The original part may differ from the part shown in the picture.)

Supply 1 T6 screwdriver

Close

A0399T06

Torx T6 screwdriver
product added to your basket

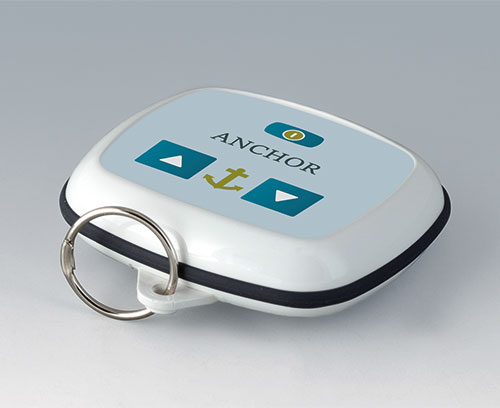

A9164001 Key ring

A9164001

Key ring Version: diameter = 0.807".

Supply 1 key ring

Close

A9164001

Key ring
product added to your basket
Steel
nickel-plated
0.81″

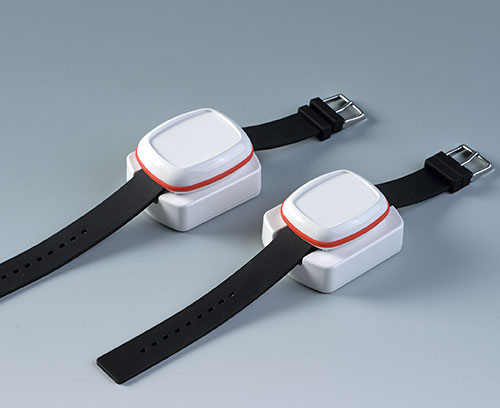

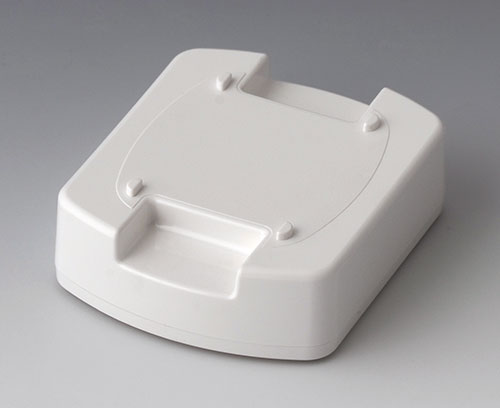

B1704017 Station M

B1704017

Station M For storing BODY-CASE M when not in use, and for fitting electronics, in particular for inductive charging of the device. Guides in the top part allow the enclosure to be easily located into position. On request, the stations can be mounted in series, for example as a charging console.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply Top part, bottom panel, assembly kit

Close

B1704017

Station M
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x1.97″x0.67″
B1704807 Station M (Mountable)

B1704807

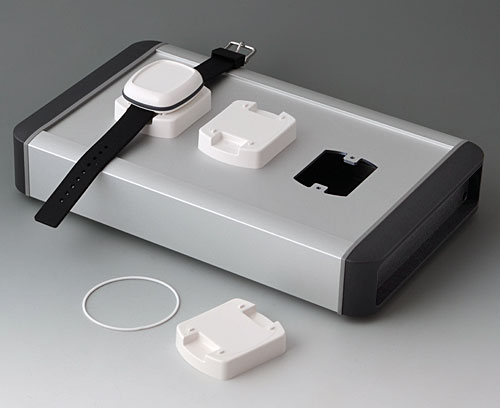

Station M (Mountable) Station top part only, for mounting individually or in series on a table stand, equipment housing or the like. Used as a storage or charging cradle for BODY-CASE M when it is not in use. For example, inductive charging electronics can be fitted inside. Guides in the top allow the enclosure to be easily located into position. An accessory seal (B1706003) is available for IP 54 protection class. Download the drawing for the mounting cut-out details.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply 1 top part

Close

B1704807

Station M (Mountable)
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x1.97″x0.67″

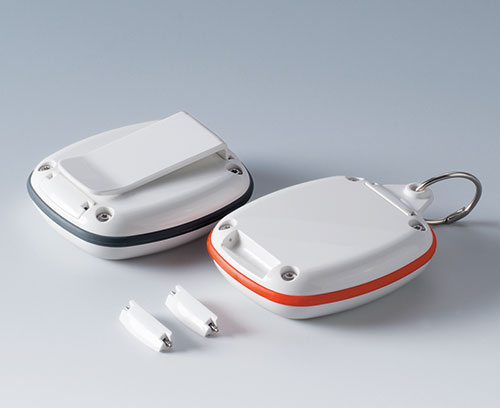

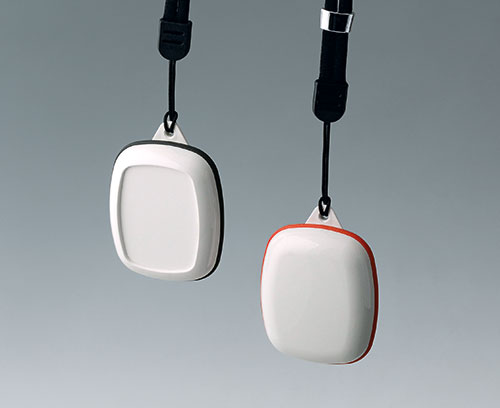

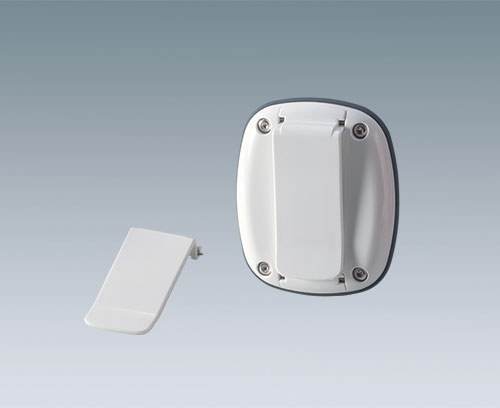

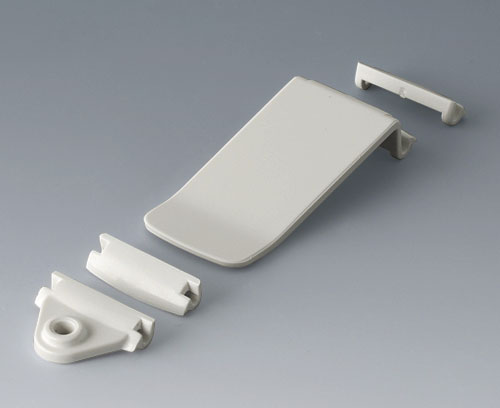

B1706001 Eyelet / pocket clip kit

B1706001

Eyelet / pocket clip kit Special accessories for BODY-CASE. Kit consisting of 1 pocket clip for shirt or trouser pocket, 1 fastening eyelet for lanyard/chain/cord as well as 2 covers for closing one or both rear wrist strap attachments if required. Fastening with spring bars (supplied with the enclosures).

Supply 1 kit

Close

B1706001

Eyelet / pocket clip kit
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
B1706003 Seal, for Station (Mountable) M/L

B1706003

Seal, for Station (Mountable) M/L Application: Fits into a groove in the top part of the size M and size L Stations (Mountable) for increasing the protection class.

Supply 1 seal

Close

B1706003

Seal, for Station (Mountable) M/L
product added to your basket

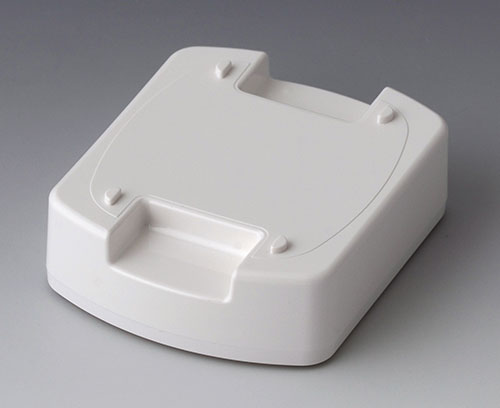

B1706017 Station L

B1706017

Station L For storing BODY-CASE L when not in use, and for fitting electronics, in particular for inductive charging of the device. Guides in the top part allow the enclosure to be easily located into position. On request, the stations can be mounted in series, for example as a charging console.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply Top part, bottom panel, assembly kit

Close

B1706017

Station L
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x1.97″x0.67″

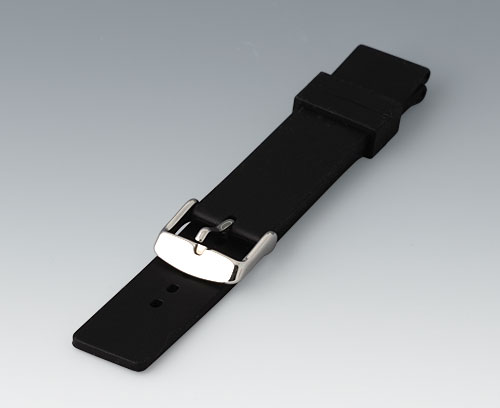

B1706202 Wrist strap, 0,708 "

B1706202

Wrist strap, 0,708 " Special wrist strap made of silicone for BODY-CASE: elastic, waterproof and comfortable to wear. The smooth surface is also easy to clean. Spring bar width 0,708 ". Total length without buckle approx. 7,598 ". Buckle made of stainless steel. Fastening with spring bars.

Please note:
The Ø 0,059 " x 0,708 " spring bars supplied with the enclosure may come loose under torsional stress when used with the silicone wrist strap B1706202. For a better connection, we therefore recommend spring bars measuring Ø 0,059 " x 0,748 ".
OKW Part No: B1706206
Please determine the relevant suitability for use by carrying out your own tests.

Supply 1 wrist strap

Close

B1706202

Wrist strap, 0,708 "
product added to your basket
Silicone
black

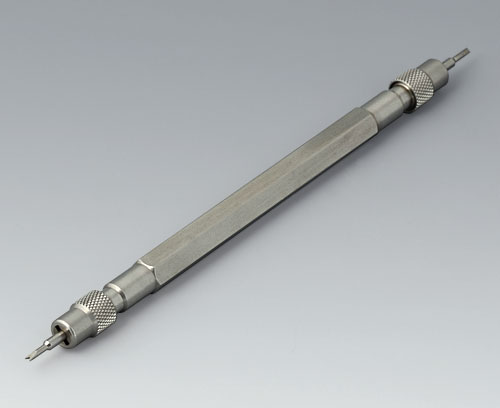

B1706203 Spring bar tool

B1706203

Spring bar tool Tool with "fork-shaped" end for the easy insertion and removal of the spring bars of the wrist strap, belt / pocket clip, eyelet and covers. Pointed end suitable as an instrument for pushing out pins in metal wrist straps with flexible chain links, or in buckles. (The original part may differ from the part shown in the picture.)

Supply 1 Spring bar tool

Close

B1706203

Spring bar tool
product added to your basket
Stainless steel

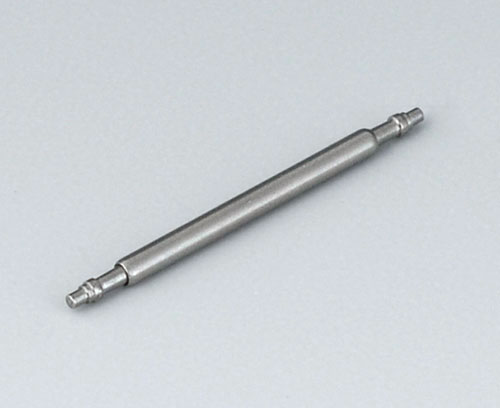

B1706206 Spring bar, Ø 0,059 " x 0,748 "

B1706206

Spring bar, Ø 0,059 " x 0,748 "

Please note: We would like to point out that B1706206 spring bars are only intended for use with the combination of the BODY-CASE enclosure and the silicone wrist strap.

However, the use of these spring bars with the B1706001 fastening kit is not recommended. Please use the spring bars supplied with the enclosures for this purpose, as otherwise the plastic parts may be damaged.

Supply 1 spring bar

Close

B1706206

Spring bar, Ø 0,059 " x 0,748 "
product added to your basket
Stainless steel
B1706807 Station L (Mountable)

B1706807

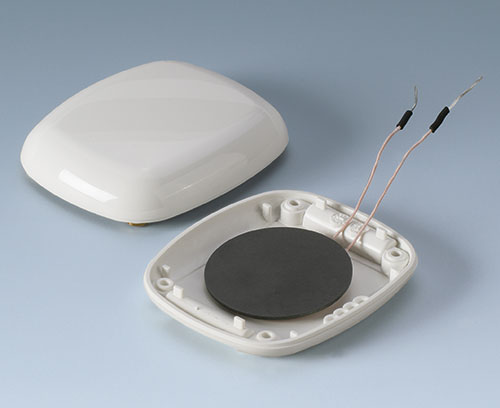

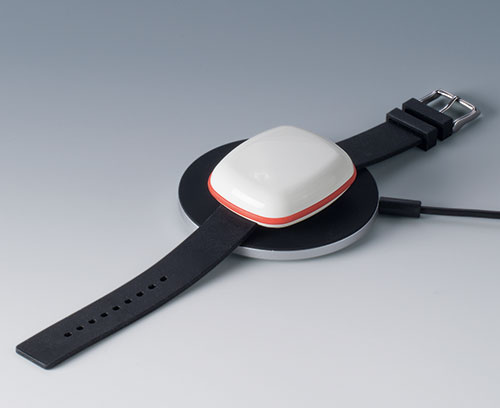

Station L (Mountable) Station top part only, for mounting individually or in series on a table stand, equipment housing or the like. Used as a storage or charging cradle for BODY-CASE L when it is not in use. For example, inductive charging electronics can be fitted inside. Guides in the top allow the enclosure to be easily located into position. An accessory seal (B1706003) is available for IP 54 protection class. Download the drawing for the mounting cut-out details.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply 1 top part

Close

B1706807

Station L (Mountable)
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
2.44″x1.97″x0.67″
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Close

B9100063

Carrying strap, textile lanyard
product added to your basket
black
33.86″

Customizing options for Body-Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
