B2824107

CONNECT S

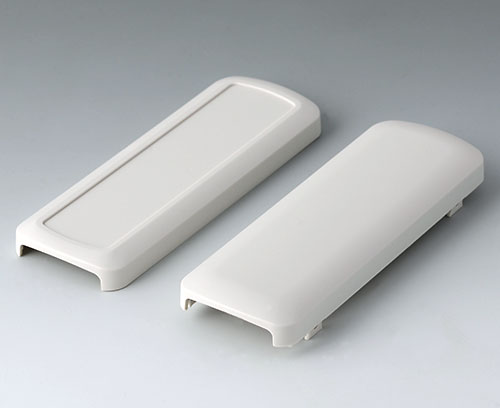

Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply

1 shell convex and 1 flattened shell with recessed surface

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B2824107

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory to complete

B2911308 Cable gland kit, 0.134" - 0.165"

B2911308

Cable gland kit, 0.134" - 0.165" For round cable diameter 0.134" - 0.165". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911308

Cable gland kit, 0.134" - 0.165"
product added to your basket
TPE
volcano
B2911309 Cable gland kit, 0.134" - 0.165"

B2911309

Cable gland kit, 0.134" - 0.165" For round cable diameter 0.134" - 0.165". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911309

Cable gland kit, 0.134" - 0.165"
product added to your basket
TPE
black RAL 9005
B2911318 Cable gland kit, 0.165" - 0.197"

B2911318

Cable gland kit, 0.165" - 0.197" For round cable diameter 0.165" - 0.197". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911318

Cable gland kit, 0.165" - 0.197"
product added to your basket
TPE
volcano
B2911319 Cable gland kit, 0.165" - 0.197"

B2911319

Cable gland kit, 0.165" - 0.197" For round cable diameter 0.165" - 0.197". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911319

Cable gland kit, 0.165" - 0.197"
product added to your basket
TPE
black RAL 9005
B2911328 Cable gland kit, 0.197" - 0.232"

B2911328

Cable gland kit, 0.197" - 0.232" For round cable diameter 0.197" - 0.232". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911328

Cable gland kit, 0.197" - 0.232"
product added to your basket
TPE
volcano
B2911329 Cable gland kit, 0.197" - 0.232"

B2911329

Cable gland kit, 0.197" - 0.232" For round cable diameter 0.197" - 0.232". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911329

Cable gland kit, 0.197" - 0.232"
product added to your basket
TPE
black RAL 9005

Accessory "wall/holder"

A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 1.260" and corresponding suspensions. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Close

A9167027

Holding clamp
product added to your basket
PA 6 (UL 94 HB)
off-white RAL 9002
B2921507 Holder S

B2921507

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 0.217" to 0.276".

Supply 1 holder

Close

B2921507

Holder S
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002

Accessory "screws"

A0304031 Self-tapping screws 0.087" x 0.197" (PZ1)

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1)
product added to your basket

Customizing options for B2824107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Application Examples
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Length
4.724″
120 mm
Width
1.654″
42 mm
Height
0.866″
22 mm
PCB length, base
3.976″
101 mm
PCB width, base
1.339″
34 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
42 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
