The optimum connection

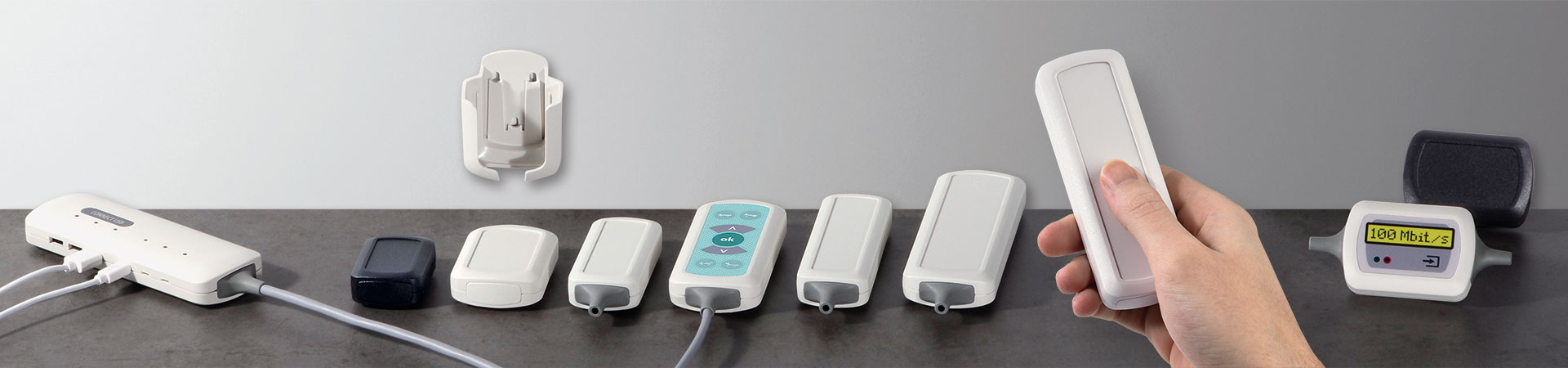

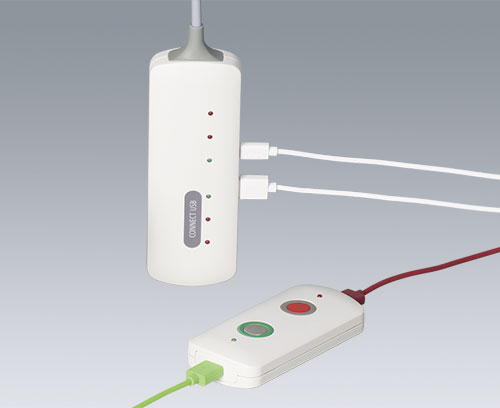

The CONNECT enclosures range is ideal for wired and battery-powered mobile applications.

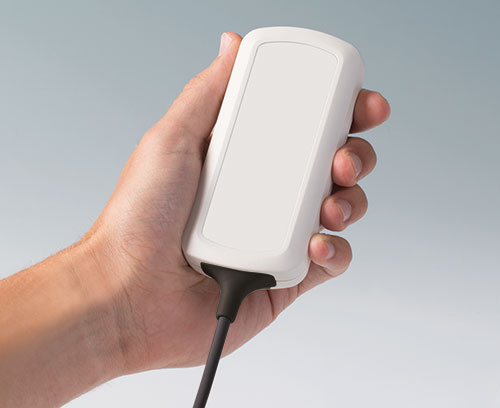

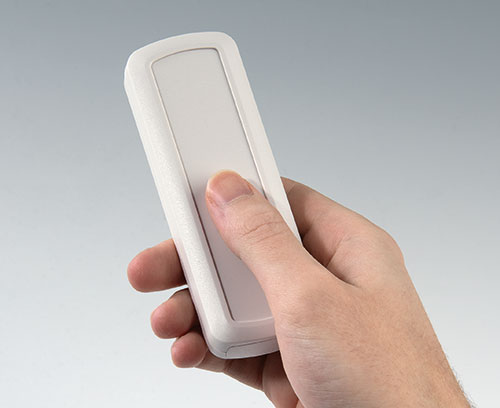

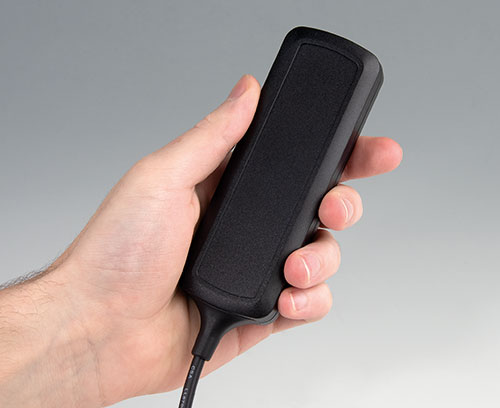

  • New: CONNECT S with a width of only 1.65" is particularly easy to grip. It is ideal for remote controls, measuring instruments, test instruments etc. or as an interface enclosure with/without a cable connection

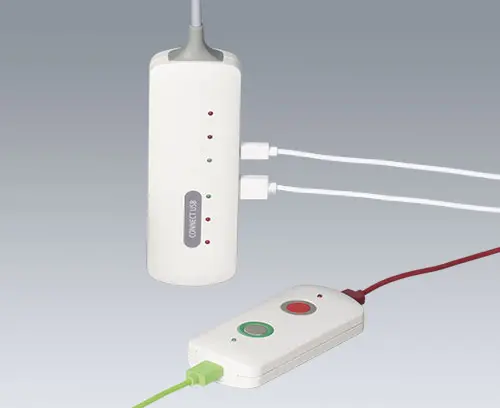

  • two enclosure shells, convex and flattened with a recessed panel
  • the two shells snap into each other, no screws required, this saves time during assembly, and you can also choose the front side of the device

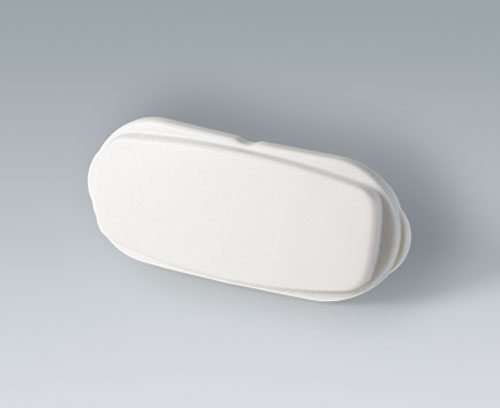

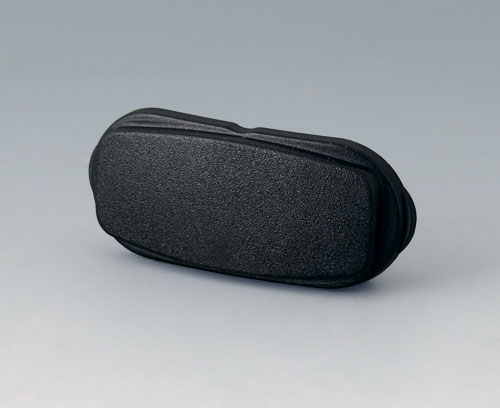

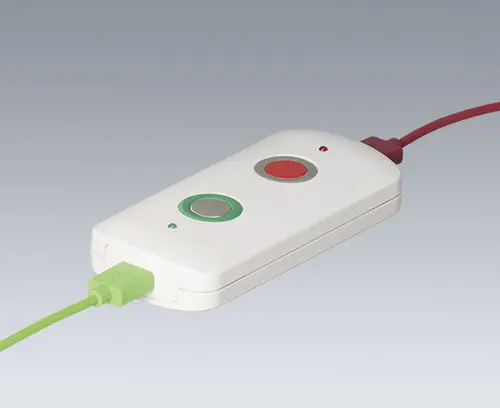

  • cutouts at both ends; to complete the enclosure, end parts and/or cable glands can be fitted

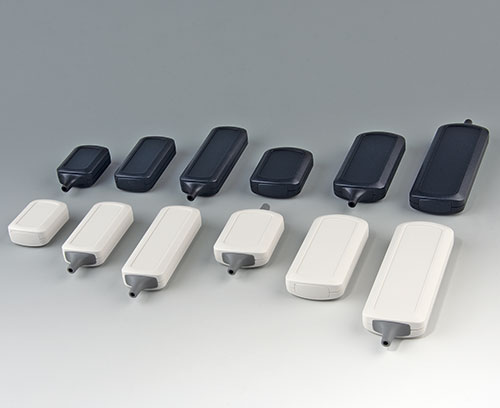

  • CONNECT S & M in three enclosure lengths each to match the application exactly
  • the enclosure shells and the end parts are made of UV-stabilised V-0 material
  • protection class IP 40 (with end parts)

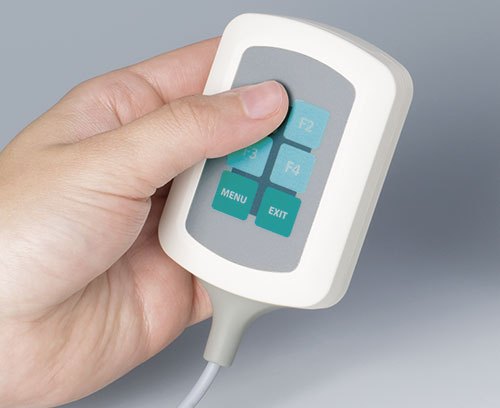

  • integrated strain relief with the cable gland kit

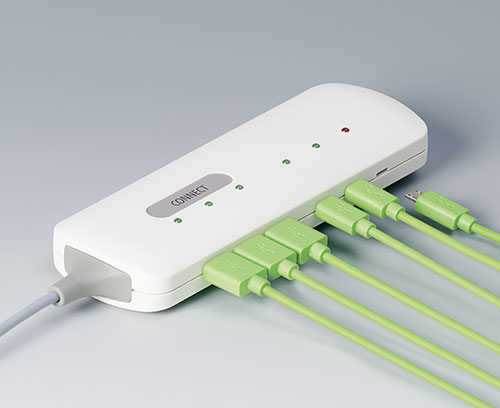

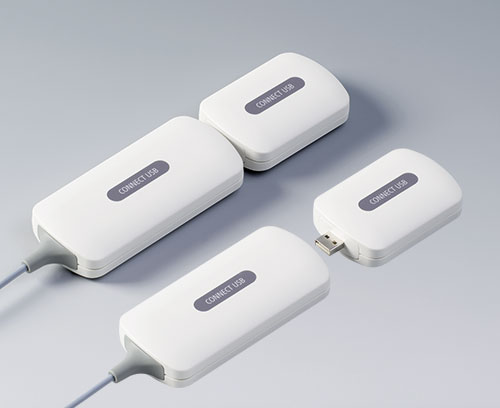

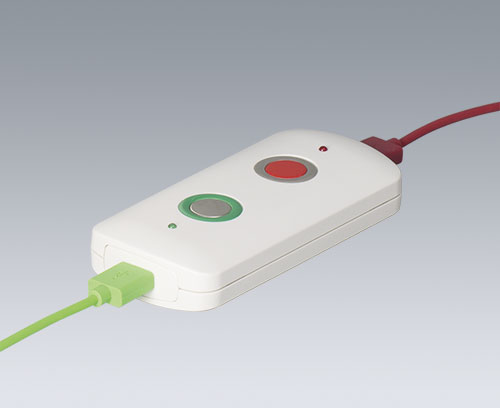

  • enough room for the installation of compact displays, LEDs and USB connectors and measuring sensors

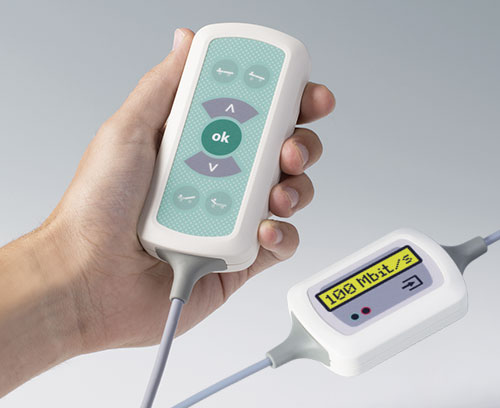

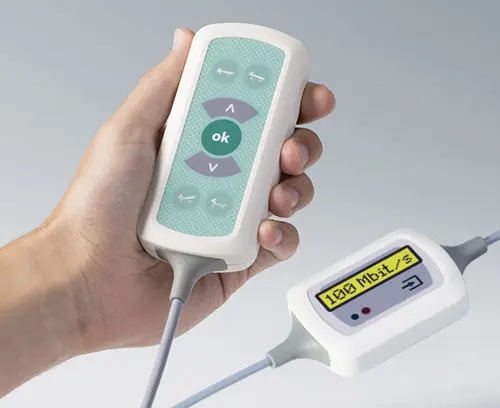

  • recessed surface to protect the membrane keyboard, decor foil or label

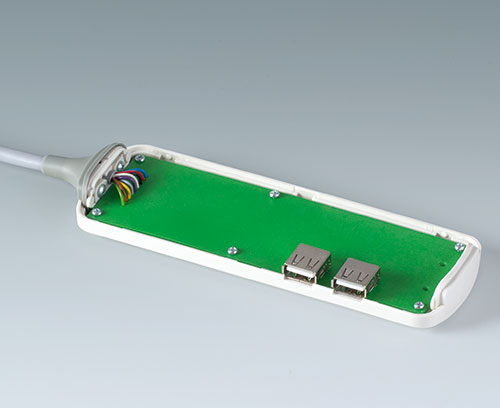

  • attachment pillars for PCBs and components in the flat enclosure shell

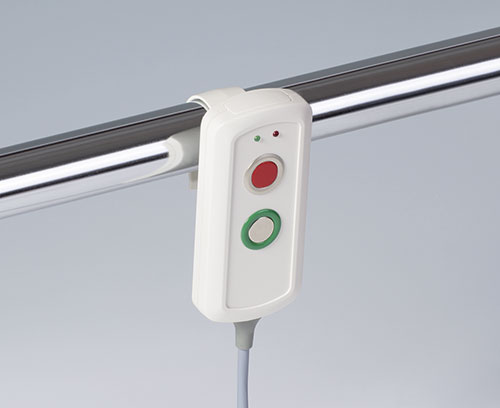

  • holding clamps for round tubes up to ø 1.26" (32 mm) available as accessories (CONNECT S: 3.54"/4.72" long, CONNECT M: 4.57"/6.14" long)

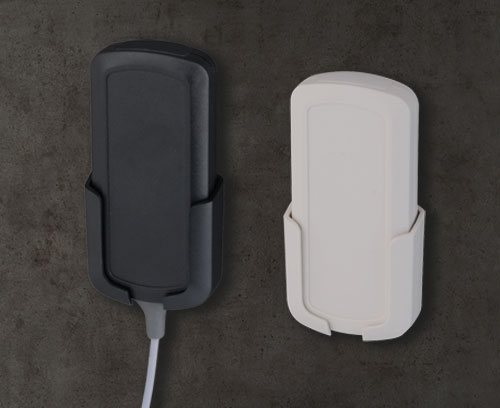

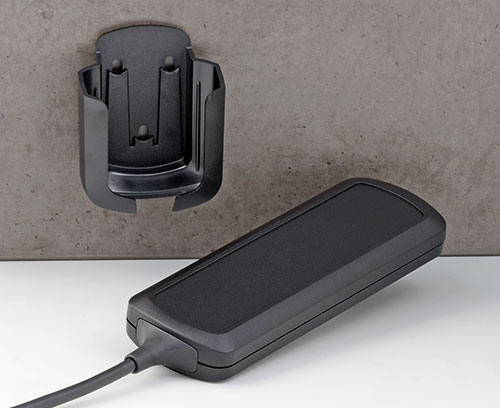

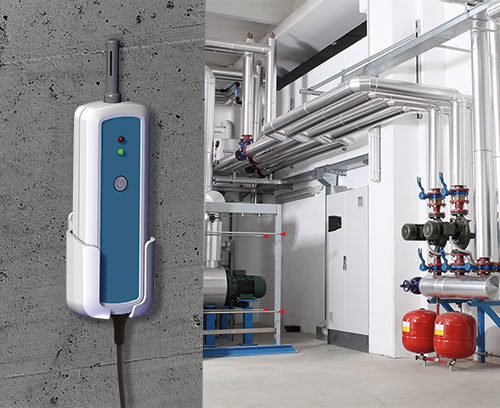

  • holder for secure storage on the wall or similar as an accessory
Generate PDF
  • Video
  • Application Examples

Application fields

  • Data systems engineering
  • Network technology
  • Building services systems
  • Safety engineering
  • IoT/ IIoT

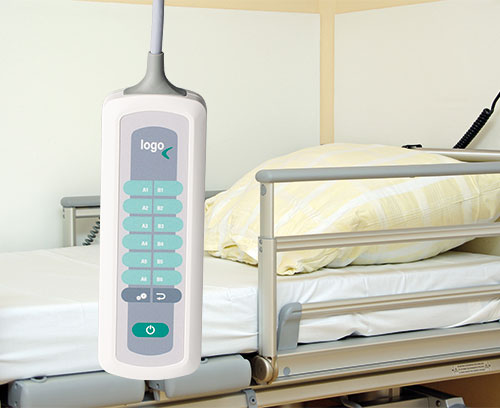

  • Medical and therapeutic applications
  • Analytical instruments in the laboratory

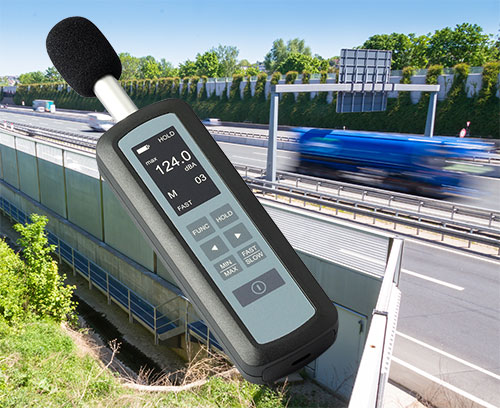

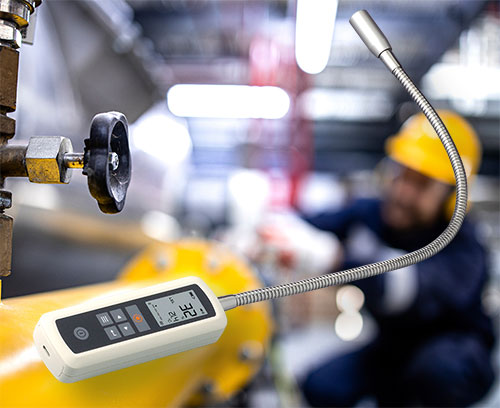

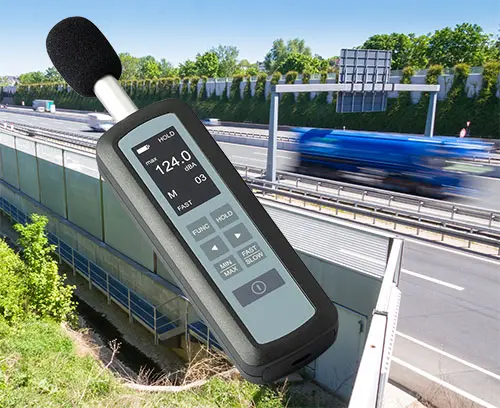

  • Measuring technology, including detectors with measuring sensors, test systems/instruments
  • Data loggers in environmental technology
  • Sensor systems
  • Browse Full List
  • Accessories
  • View Customizing Options

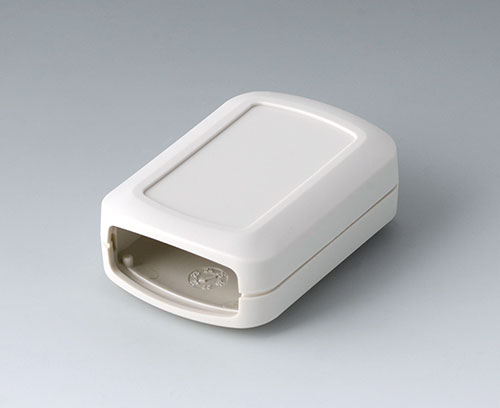

B2822107 CONNECT S

B2822107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2822107

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
2.36″x1.65″x0.87″

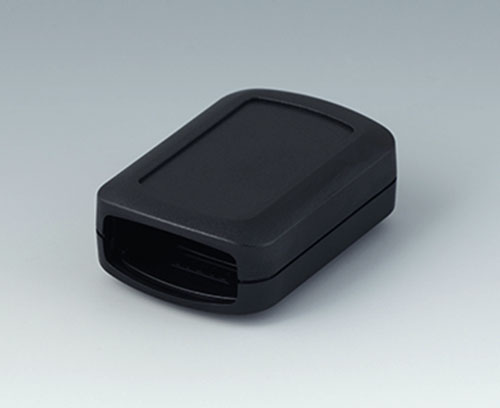

B2822109 CONNECT S

B2822109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2822109

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
2.36″x1.65″x0.87″

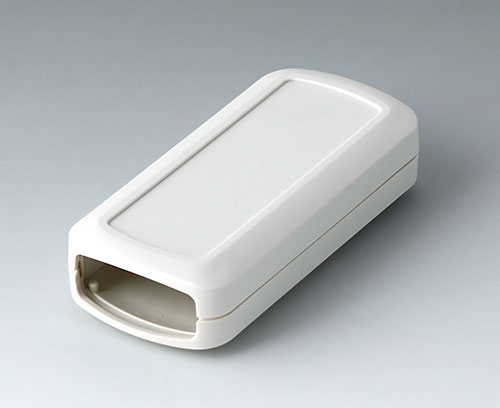

B2823107 CONNECT S

B2823107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2823107

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
3.54″x1.65″x0.87″

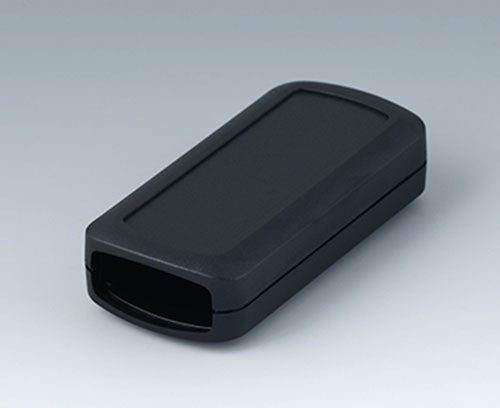

B2823109 CONNECT S

B2823109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2823109

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
3.54″x1.65″x0.87″

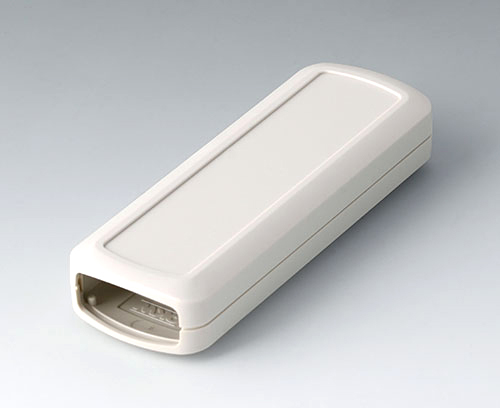

B2824107 CONNECT S

B2824107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2824107

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
4.72″x1.65″x0.87″

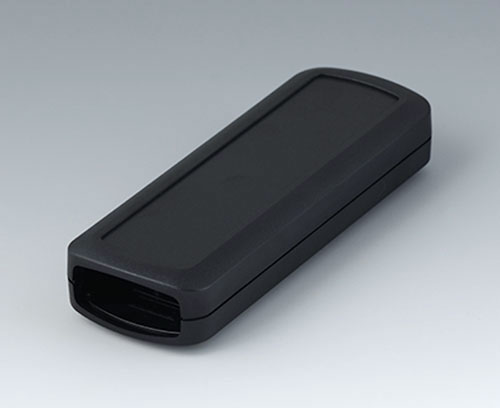

B2824109 CONNECT S

B2824109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2824109

CONNECT S
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
4.72″x1.65″x0.87″

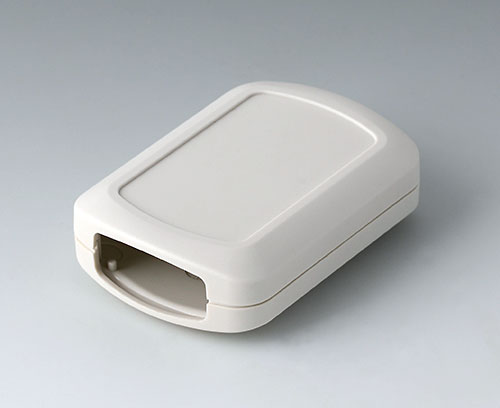

B2832107 CONNECT M

B2832107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2832107

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
2.99″x2.13″x0.87″

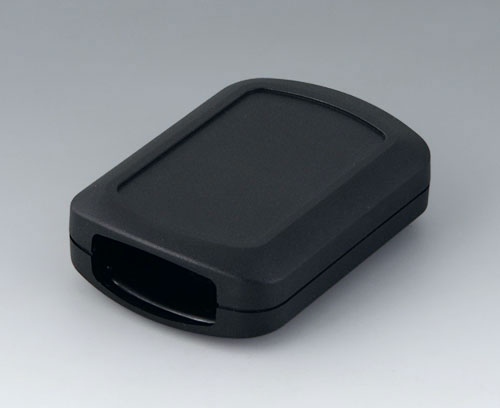

B2832109 CONNECT M

B2832109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2832109

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
2.99″x2.13″x0.87″

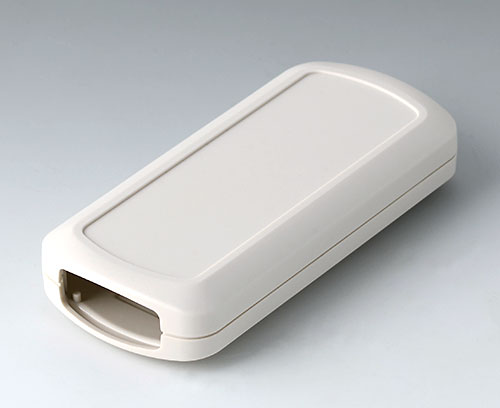

B2833107 CONNECT M

B2833107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2833107

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
4.57″x2.13″x0.87″

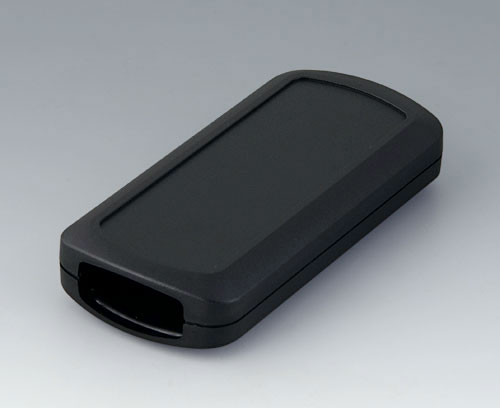

B2833109 CONNECT M

B2833109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2833109

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
4.57″x2.13″x0.87″

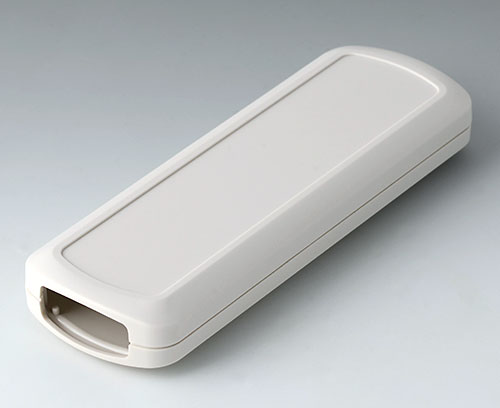

B2834107 CONNECT M

B2834107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2834107

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
6.14″x2.13″x0.87″

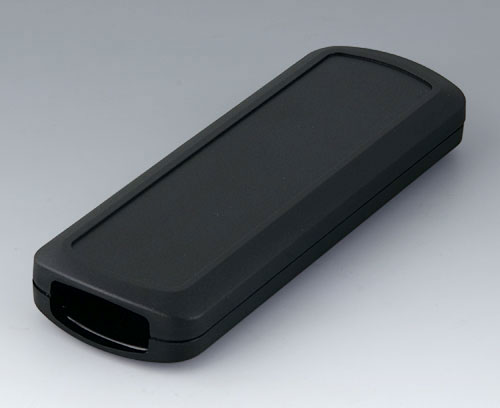

B2834109 CONNECT M

B2834109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Close

B2834109

CONNECT M
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005
6.14″x2.13″x0.87″
A0304031 Self-tapping screws 0.087" x 0.197" (PZ1)

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 0.087" x 0.197" (PZ1)
product added to your basket
A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 1.260" and corresponding suspensions. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Close

A9167027

Holding clamp
product added to your basket
PA 6 (UL 94 HB)
off-white RAL 9002
A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 1.260" and corresponding suspensions. For fixing the preshaped centers in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Close

A9167029

Holding clamp
product added to your basket
PA 6 (UL 94 HB)
black RAL 9005

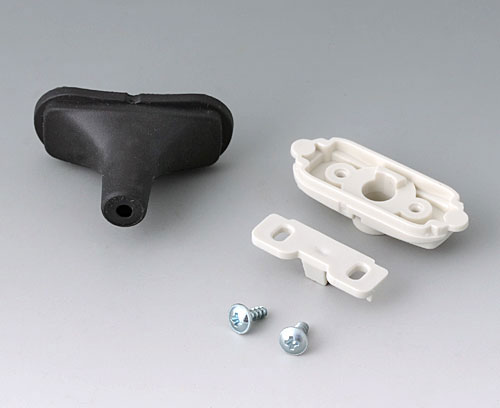

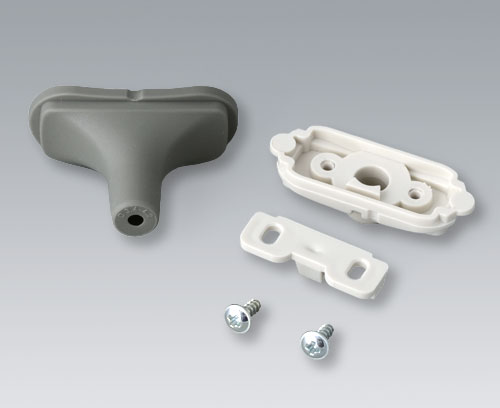

B2911308 Cable gland kit, 0.134" - 0.165"

B2911308

Cable gland kit, 0.134" - 0.165" For round cable diameter 0.134" - 0.165". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911308

Cable gland kit, 0.134" - 0.165"
product added to your basket
TPE
volcano

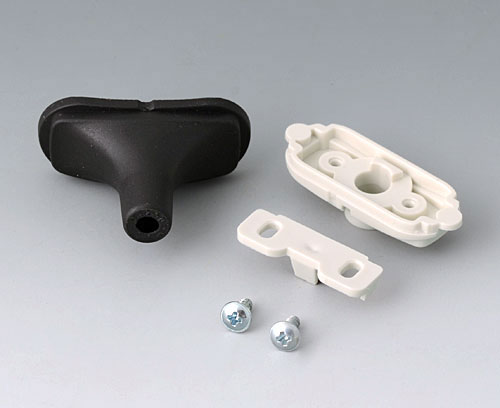

B2911309 Cable gland kit, 0.134" - 0.165"

B2911309

Cable gland kit, 0.134" - 0.165" For round cable diameter 0.134" - 0.165". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911309

Cable gland kit, 0.134" - 0.165"
product added to your basket
TPE
black RAL 9005

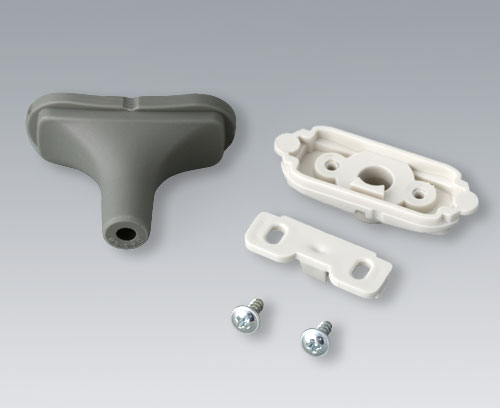

B2911318 Cable gland kit, 0.165" - 0.197"

B2911318

Cable gland kit, 0.165" - 0.197" For round cable diameter 0.165" - 0.197". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911318

Cable gland kit, 0.165" - 0.197"
product added to your basket
TPE
volcano

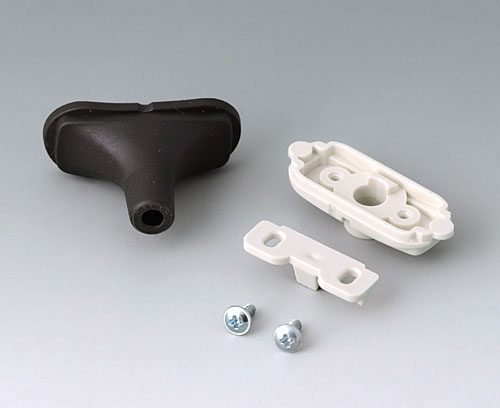

B2911319 Cable gland kit, 0.165" - 0.197"

B2911319

Cable gland kit, 0.165" - 0.197" For round cable diameter 0.165" - 0.197". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911319

Cable gland kit, 0.165" - 0.197"
product added to your basket
TPE
black RAL 9005

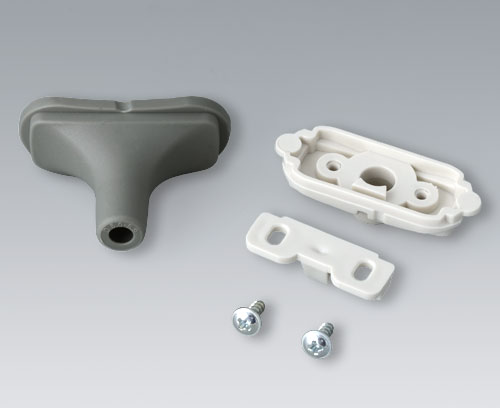

B2911328 Cable gland kit, 0.197" - 0.232"

B2911328

Cable gland kit, 0.197" - 0.232" For round cable diameter 0.197" - 0.232". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911328

Cable gland kit, 0.197" - 0.232"
product added to your basket
TPE
volcano
B2911329 Cable gland kit, 0.197" - 0.232"

B2911329

Cable gland kit, 0.197" - 0.232" For round cable diameter 0.197" - 0.232". The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping bracket, 2 selftapping screws

Close

B2911329

Cable gland kit, 0.197" - 0.232"
product added to your basket
TPE
black RAL 9005

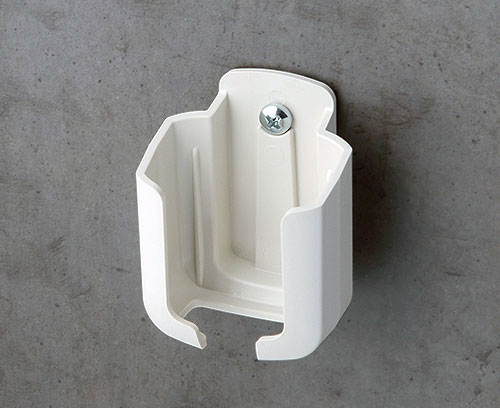

B2921507 Holder S

B2921507

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 0.217" to 0.276".

Supply 1 holder

Close

B2921507

Holder S
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002

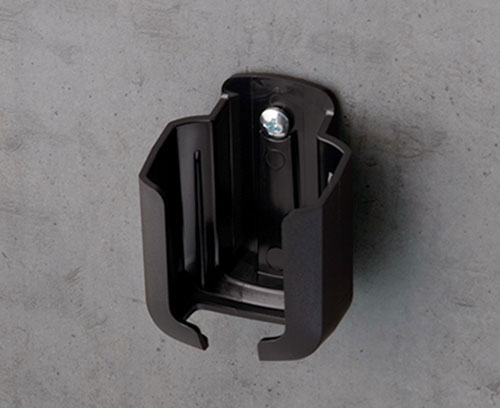

B2921509 Holder S

B2921509

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 0.217" to 0.276".

Supply 1 holder

Close

B2921509

Holder S
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005

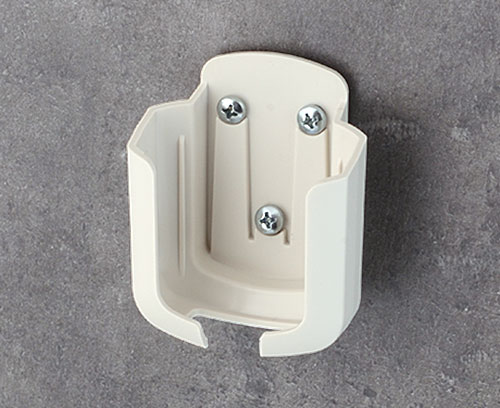

B2931507 Holder M

B2931507

Holder M Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 0.217" to 0.276".

Supply 1 holder

Close

B2931507

Holder M
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002

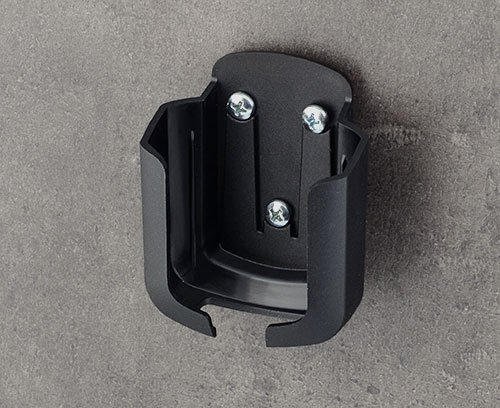

B2931509 Holder M

B2931509

Holder M Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 0.217" to 0.276".

Supply 1 holder

Close

B2931509

Holder M
product added to your basket
ASA+PC (UL 94 V-0)
black RAL 9005

Customizing options for Connect

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
