B4144005 Sealing M (bottom part - front design)
Scroll

B4144005

Sealing M (bottom part - front design)

For a higher protection class. Suitable between bottom part and front design (cover / aluminum front panel / ABS front panel or glass panel).

Supply

1 sealing

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B4144005

Please select the product details you would like to include in the PDF.

Close
  • To be used for
B4044407 Cover M

B4044407

Cover M Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply 1 cover, assembly kit

Close

B4044407

Cover M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
8.86″x6.50″x0.55″
B4044707 Bottom part M flat, version I

B4044707

Bottom part M flat, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminum front panel (sep. article)

Supply 1 bottom part flat

Close

B4044707

Bottom part M flat, version I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
8.86″x6.50″x1.00″
IP 54 opt.
B4044717 Bottom part M flat, version II

B4044717

Bottom part M flat, version II Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part flat

Close

B4044717

Bottom part M flat, version II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
8.86″x6.50″x1.00″
IP 54 opt.
B4044757 Bottom part M high, version I

B4044757

Bottom part M high, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminum front panel (sep. article)

Supply 1 bottom part high

Close

B4044757

Bottom part M high, version I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
8.86″x6.50″x1.40″
IP 54 opt.
B4044767 Bottom part M high, version II

B4044767

Bottom part M high, version II Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part high

Close

B4044767

Bottom part M high, version II
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
8.86″x6.50″x1.40″
IP 54 opt.
B4044827 Base M - desk-top -

B4044827

Base M - desk-top - Assembly unit: for case combinations with open bottom part vers. I or II. Case screwed to base. Assembly screws hidden from view. Ergonomically designed for operating and reading off. Assembly of the operating panel vertically or horizontally, depending on the application, see assembly instruction.

Supply 1 base, 2 covers, assembly kit

Close

B4044827

Base M - desk-top -
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
6.02″x6.02″x2.48″

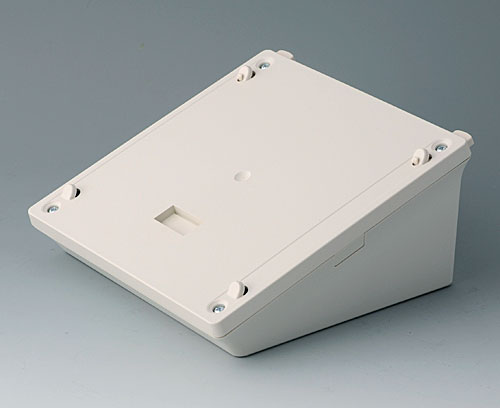

B4044837 Base M - charging station, case deposit mobile

B4044837

Base M - charging station, case deposit mobile Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.

Supply 1 base, 1 base cover, 2 covers, assembly kit

Close

B4044837

Base M - charging station, case deposit mobile
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
6.02″x6.02″x2.76″

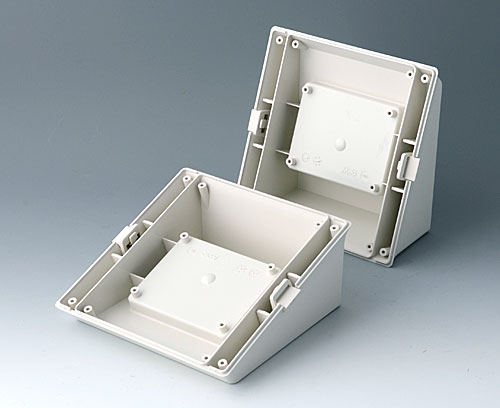

B4044847 Base M - desk-top/wall -

B4044847

Base M - desk-top/wall - Assembly unit: for case combinations with bottom panel and snap-in strips. Case snaps into the base in vertical or horizontal position, depending on the application - see assembly instruction. If required, unit can be secured by latch lock. Ergonomically designed for operating and reading off. Direct wall mounting.

Supply 1 base, 2 clips, assembly kit

Close

B4044847

Base M - desk-top/wall -
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
6.02″x6.02″x2.48″

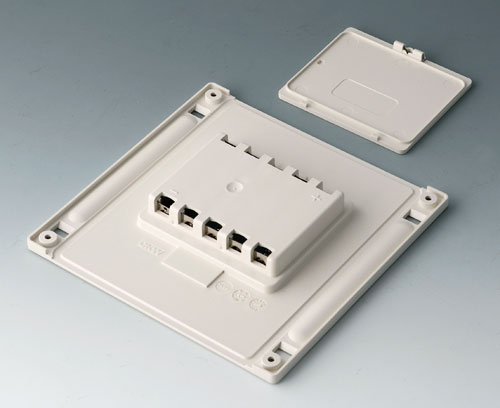

B4144047 Battery compartment and lid M, 5 x AA

B4144047

Battery compartment and lid M, 5 x AA Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.

Supply 1 battery compartment and lid, assembly kit

Close

B4144047

Battery compartment and lid M, 5 x AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B4144106 Front panel M

B4144106

Front panel M Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Close

B4144106

Front panel M
product added to your basket
Aluminum
matt anodized
8.72″x6.36″x0.08″
B4144107 Front panel M

B4144107

Front panel M Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Close

B4144107

Front panel M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
8.88″x6.52″x0.61″

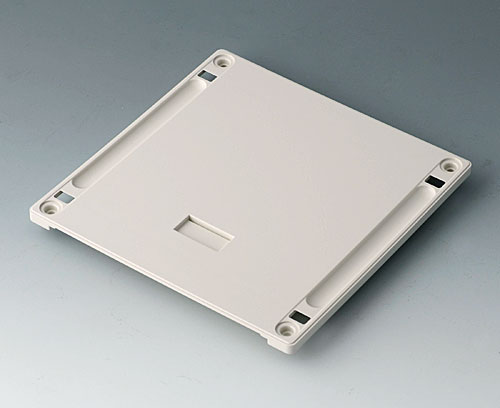

B4144167 Bottom panel with handle recess M

B4144167

Bottom panel with handle recess M Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, assembly kit

Close

B4144167

Bottom panel with handle recess M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B4144203 Glass panel M

B4144203

Glass panel M Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.

Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean

Supply 1 glass panel incl. mounting frame and adhesive foil

Close

B4144203

Glass panel M
product added to your basket
Glass
clear
8.88″x6.52″x0.70″

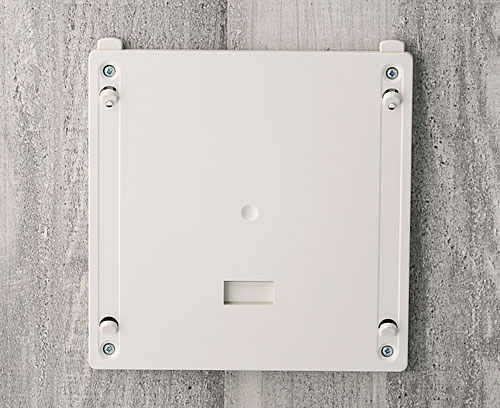

B4144247 Wall suspension element M

B4144247

Wall suspension element M Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.

Supply 1 wall suspension element with snap-in mechanism

Close

B4144247

Wall suspension element M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

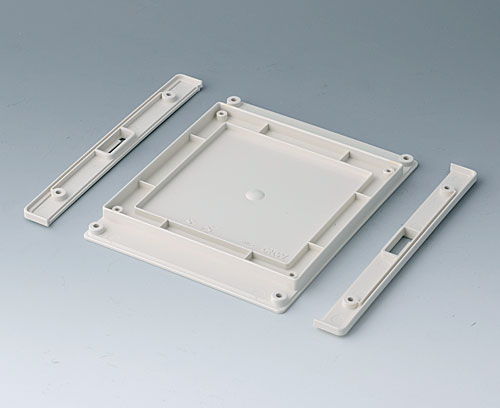

B4144257 Bottom panel with snap-in strips M

B4144257

Bottom panel with snap-in strips M Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, 2 snap-in strips, assembly kit

Close

B4144257

Bottom panel with snap-in strips M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

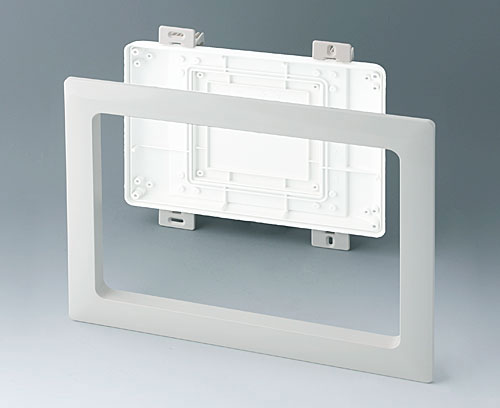

B4144587 Installation assembly kit M, flat

B4144587

Installation assembly kit M, flat For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.

Version Holders matches bottom part, flat

Supply 4 holders, assembly kit, design frame

Close

B4144587

Installation assembly kit M, flat
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
10.71″x8.58″

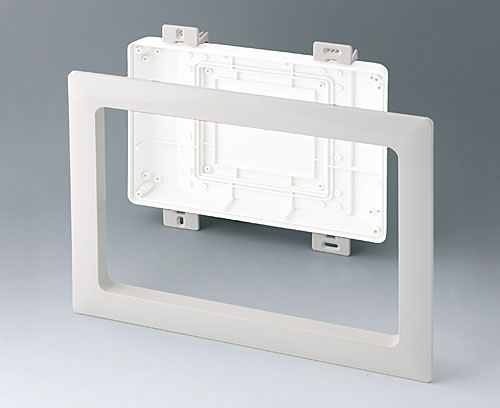

B4144597 Installation assembly kit M, high

B4144597

Installation assembly kit M, high For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.

Version Holders matches bottom part, high

Supply 4 holders, assembly kit, design frame

Close

B4144597

Installation assembly kit M, high
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
10.71″x8.58″
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
SEBS (TPE)
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Weight/1 part
10 g
Customs tariff number
(OKW product)
40169300
Country of manufacture
Germany
