Comtec

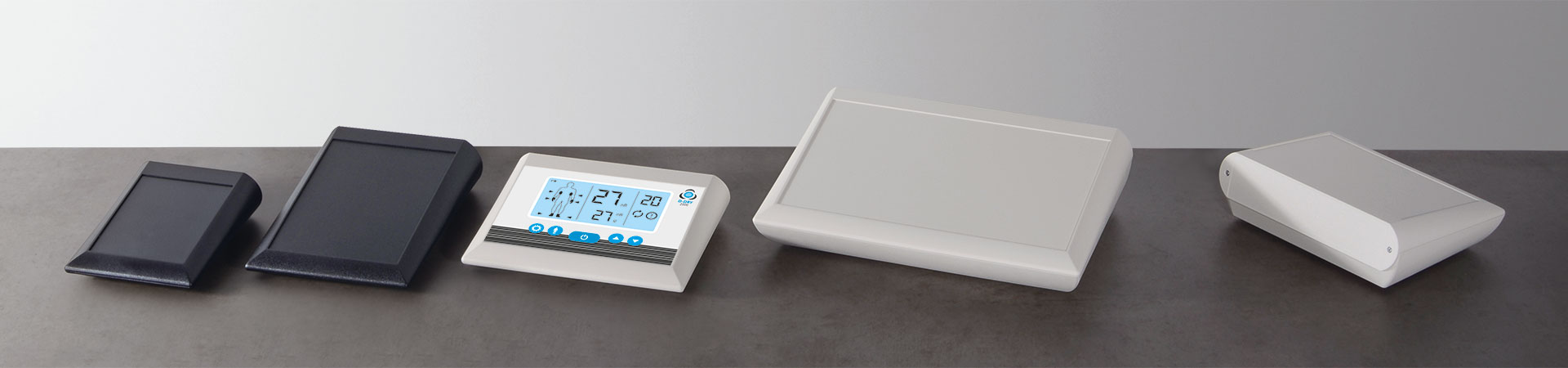

Ergonomic sloping front plastic enclosures

Modern, flat styling characterizes the COMTEC family of plastic enclosures. Rounded surfaces give the users a soft feeling and emphasize the ease of use.

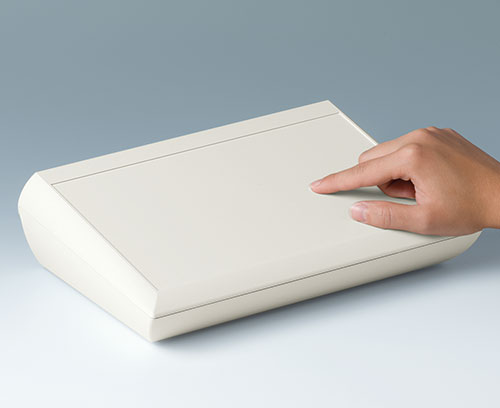

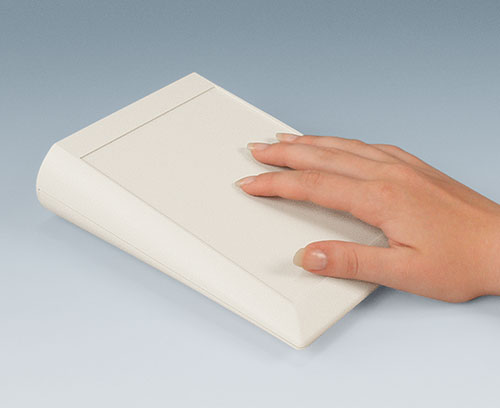

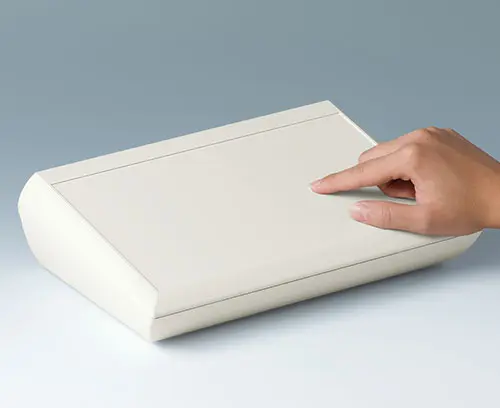

  • ergonomic keypad enclosures with operating face inclined at 10°, a real asset when operating and reading

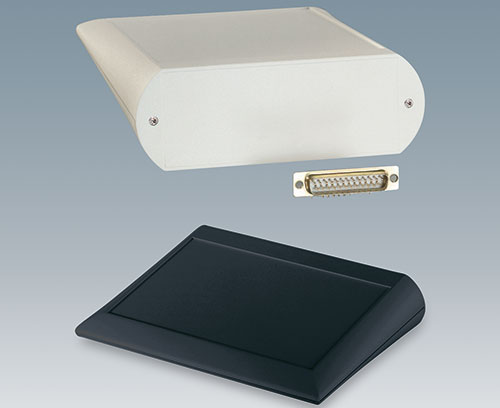

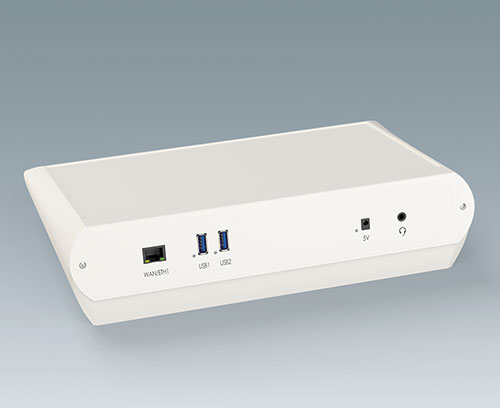

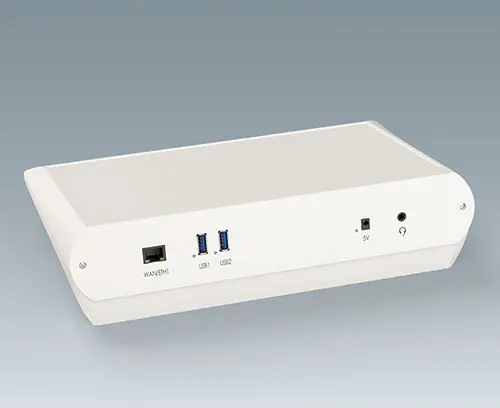

  • large area for interfaces at the top, ideal for D-sub-plug connectors, round connectors etc.
  • ideal for desktop or wall mounted electronics

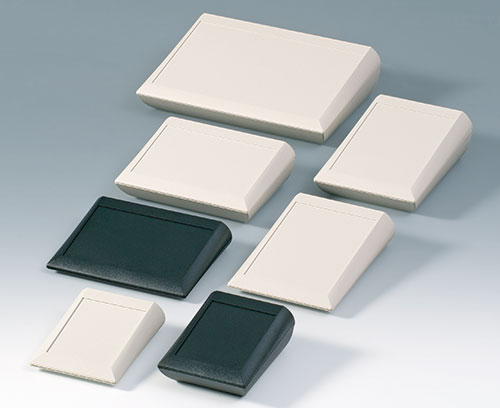

  • seven sizes, two colors

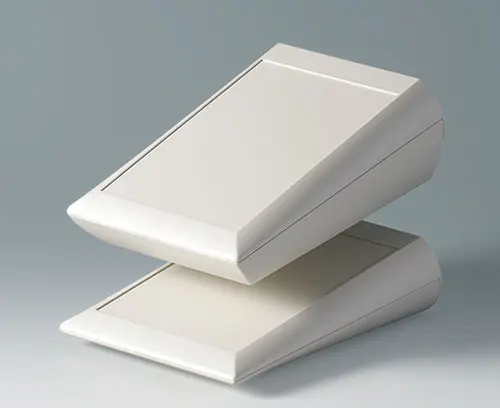

  • flat or raised bottom part for large-volume components

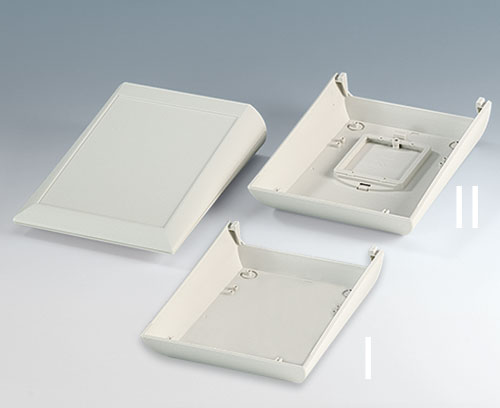

  • version I without battery compartment lid

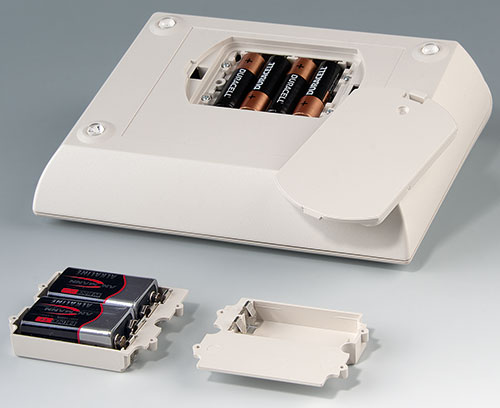

  • version II with battery compartment lid
  • screw-in battery cradles 4 x AA, 1 x 9 V or 2 x 9 V cells are ordered separately for version II cases

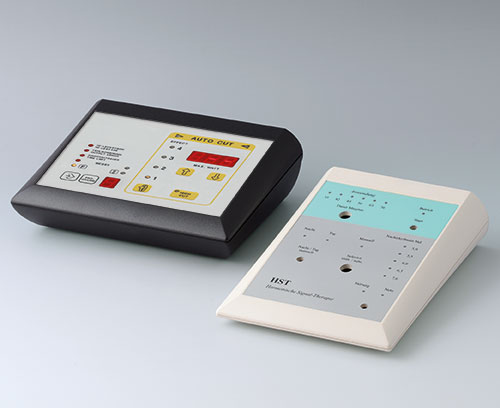

  • recess in top for a membrane keypad or label
  • protection class IP 40
  • self-adhesive case feet ensure reliable desk-top positioning

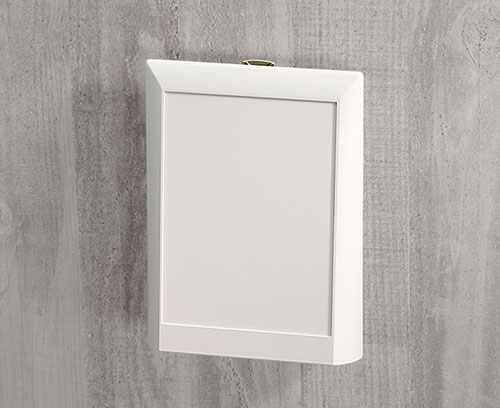

  • wall suspension element as accessory

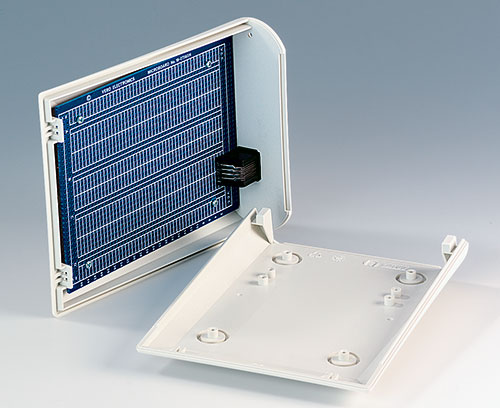

  • internal fastening pillars for PCBs and components
Generate PDF

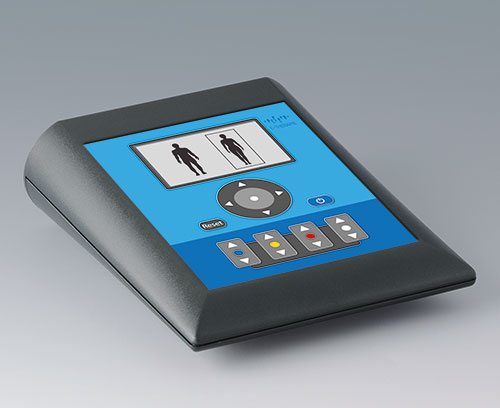

  • Application Examples

Application fields

  • Data collection terminals
  • Communications devices
  • Access control, security

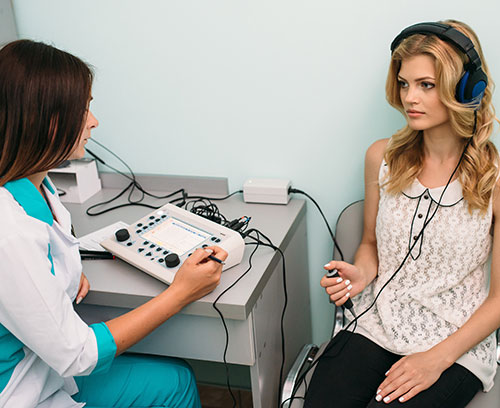

  • Medical, laboratory, wellness
  • Health care
  • Point-of-sale systems
  • Measuring and controlling
  • Industrial regulation
  • Select Versions
  • Accessories
  • View Customizing Options

Select which version/size you want below or browse full product list

A9160003 Plug-in contact, 1 x 9 V

A9160003

Plug-in contact, 1 x 9 V Version: Lateral cable exit. Cable length approx. 3.937". Diameter of contacts = 0.224"/0.209".
Application: for a 9 V flat battery.

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V
product added to your basket
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Close

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
product added to your basket
Steel
tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries.

Supply 1 battery compartment, assembly kit

Close

A9174002

Battery compartment, 2 x 9 V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery.

Supply 1 battery compartment, assembly kit

Close

A9174003

Battery compartment, 1 x 9 V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Close

A9174006

Set of battery clips, 1 x 9 V
product added to your basket
Steel
tin-plated
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 0.098" x 0.236", type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
product added to your basket
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Close

A9345217

Set of battery compartment, 4 x AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Close

B1350048

Wall suspension elements
product added to your basket
ABS (UL 94 HB)
pebble gray RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Close

B1360048

Wall suspension elements
product added to your basket
ABS (UL 94 HB)
pebble gray RAL 7032

Customizing options for Comtec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
