Unitec

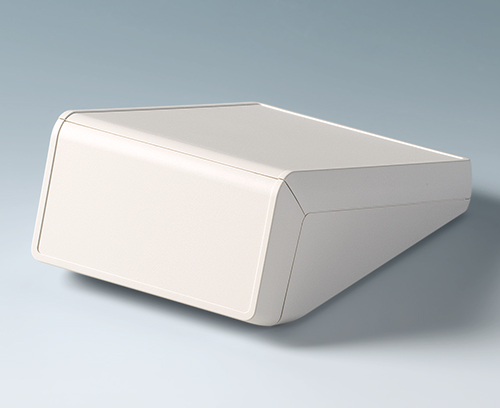

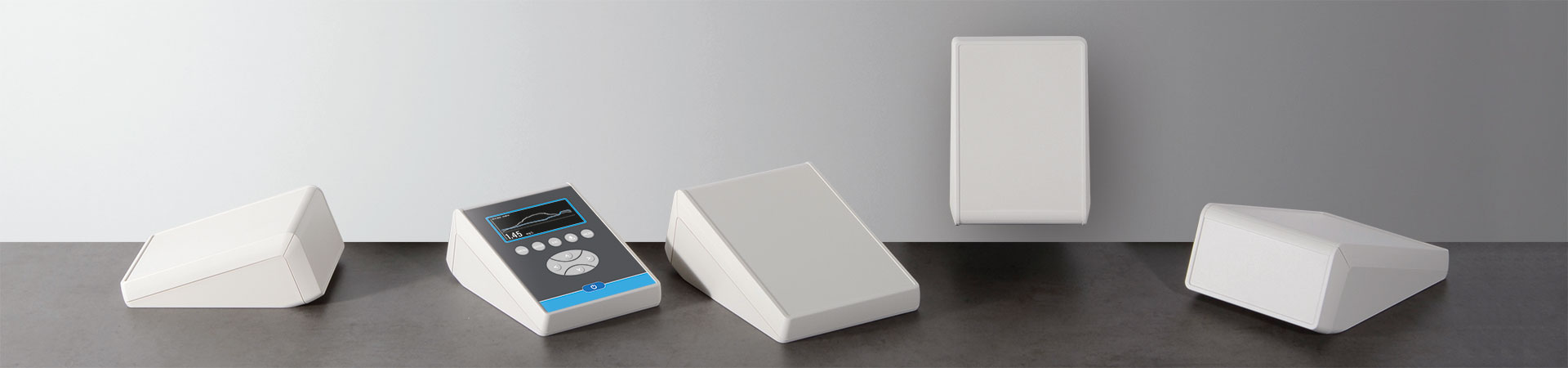

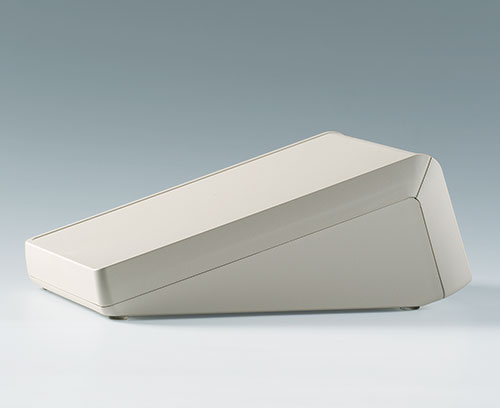

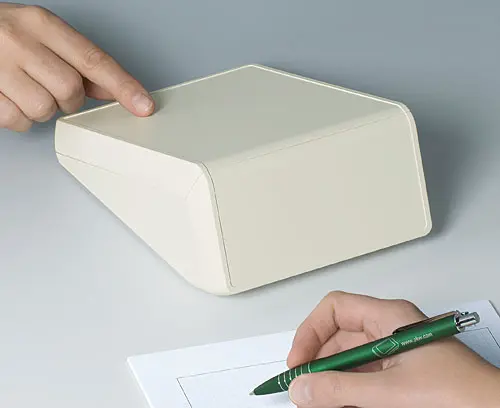

Dual face sloping front plastic enclosures

Our innovative UNITEC enclosures provide users with two operating panels at different inclinations, for face to face applications.

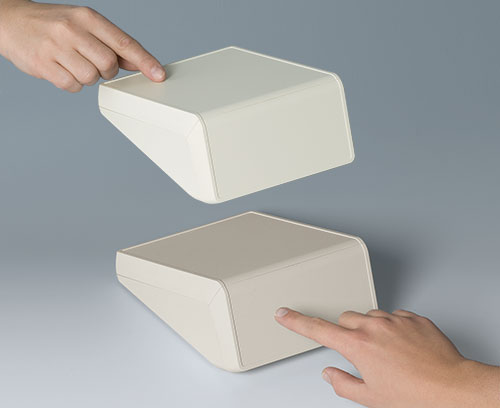

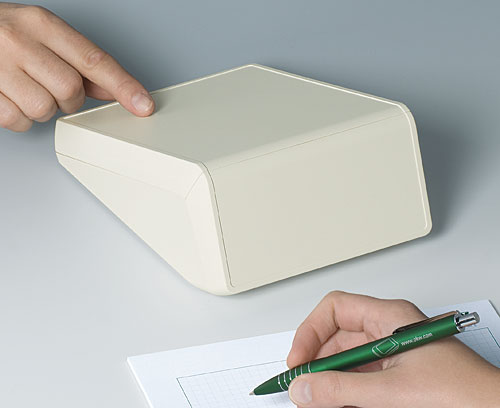

  • generously dimensioned dialog areas inclined by 72° and 18° for face to face electronic devices; for example, user inputs data on the top and another person reads the displays/printouts on the front face

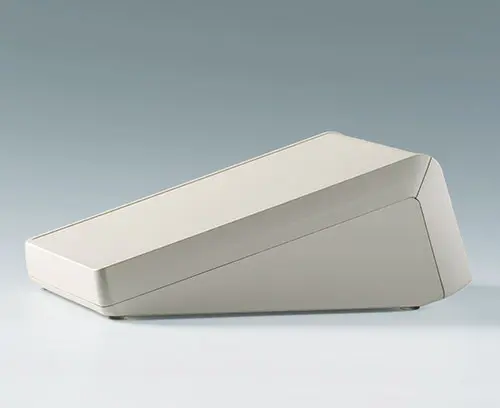

  • highly attractive contoured design suitable for desktop and wall mounted applications

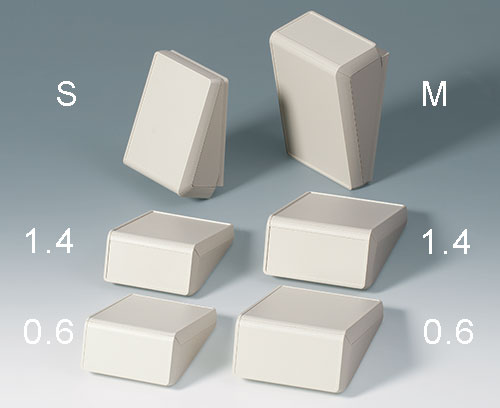

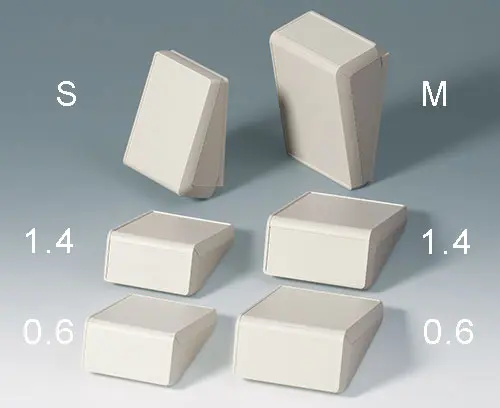

  • two sizes, each with twelve versions

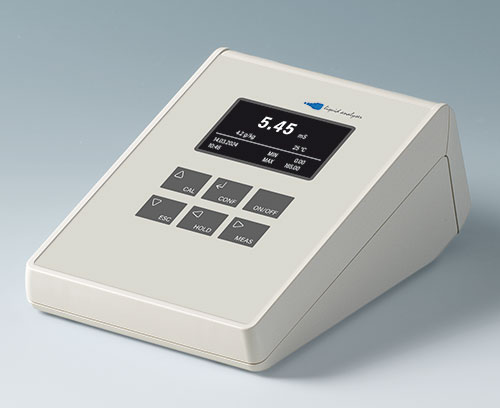

  • recessed areas 0.024" (labels) or 0.055" (membrane keypads) deep on the front part and on the top part

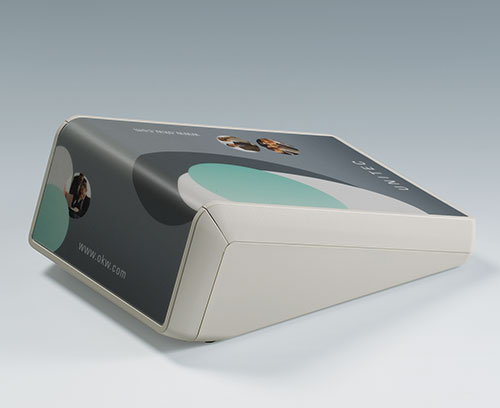

  • uniquely, it is possible to have an all over product label

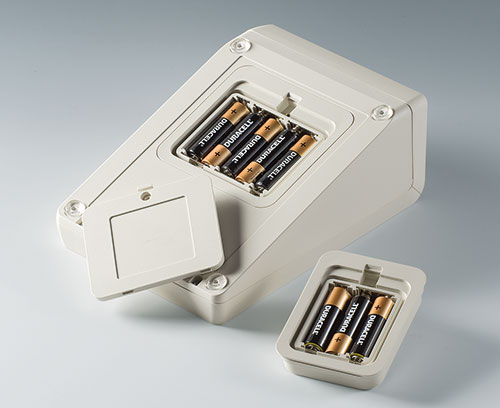

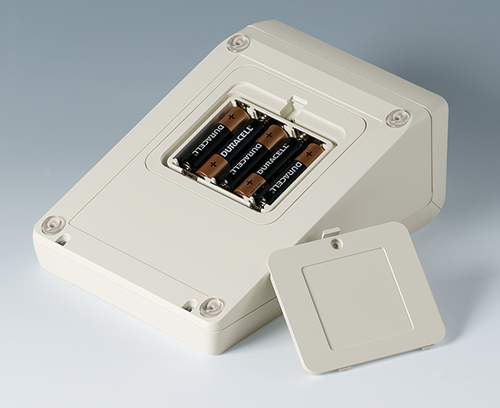

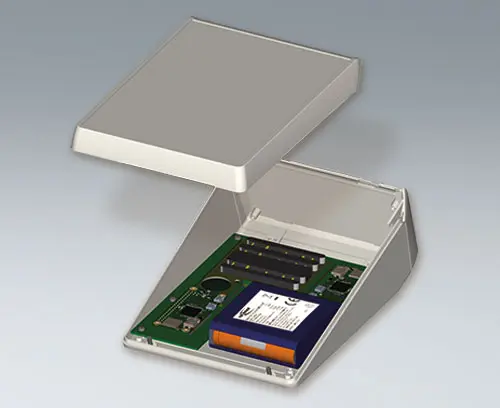

  • versions with battery compartment for 3 or 5 x AA cells

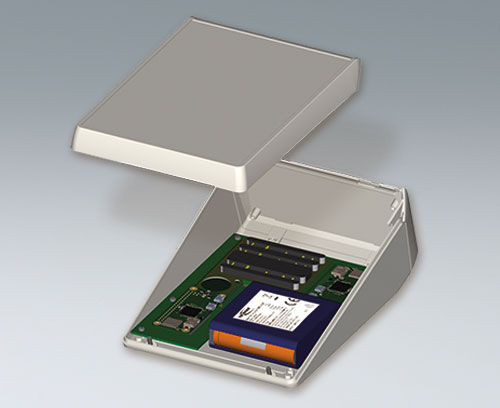

  • flexible component mounting; PCBs can be positioned in the bottom, top and front parts; screw pillars integrated

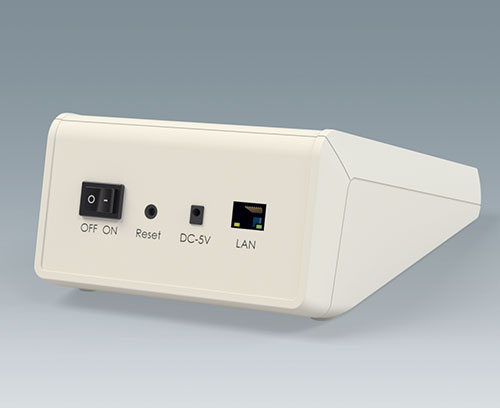

  • electronics and interfaces can be installed as complete packages, top and front part are at right angles to each other
  • protection class IP 40

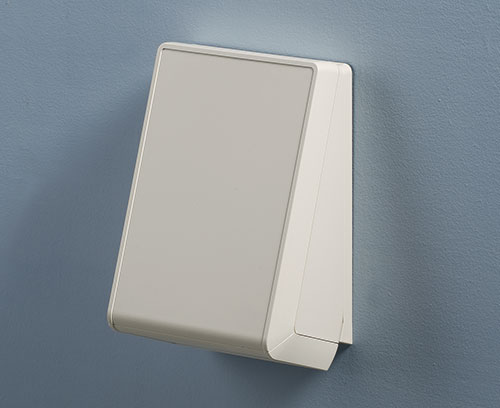

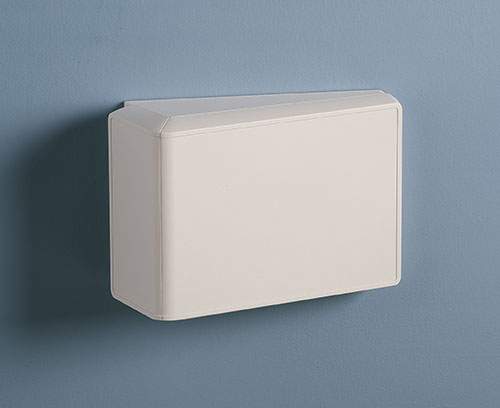

  • hidden wall mounting in different orientations, separate wall suspension element (accessory)
Generate PDF
  • Application Examples

Application fields

  • Data acquisition systems

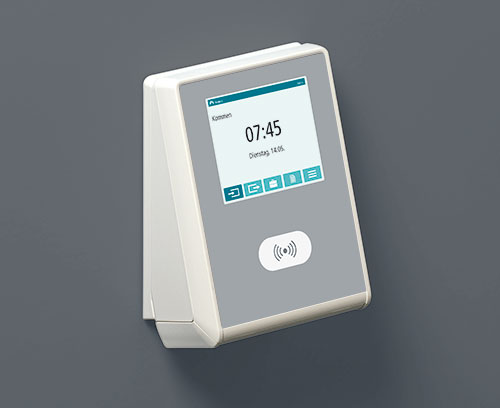

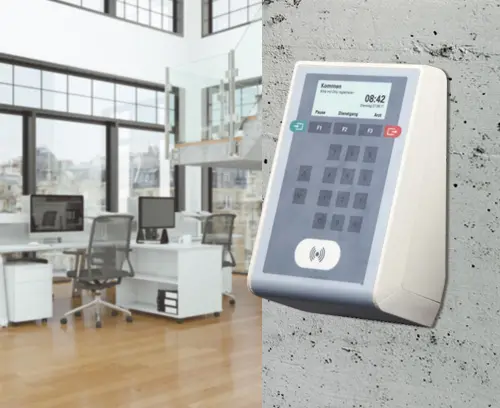

  • Access and information terminals
  • Point-of-sales devices
  • Building installations
  • Data systems engineering
  • Communication
  • Analysis diagnostics and therapy applications

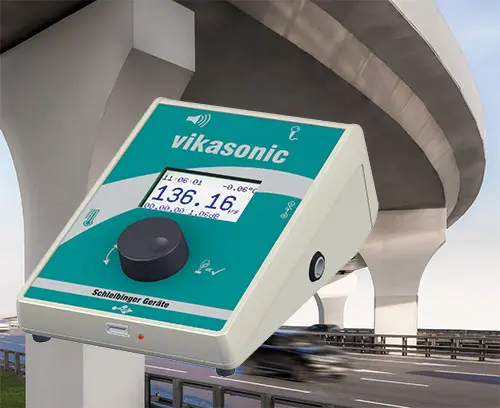

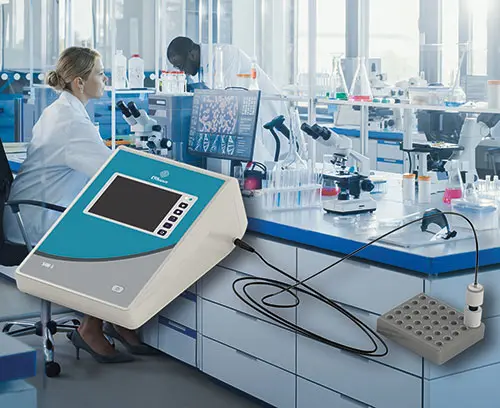

  • Measuring and control
  • Industrial regulation
  • Select Versions
  • Accessories
  • View Customizing Options

Select which version/size you want below or browse full product list

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket
A9212330 Anti-slide feet 0.472" x 0.138"

A9212330

Anti-slide feet 0.472" x 0.138" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9212330

Anti-slide feet 0.472" x 0.138"
product added to your basket
transparent
B4154307 Wall suspension element S

B4154307

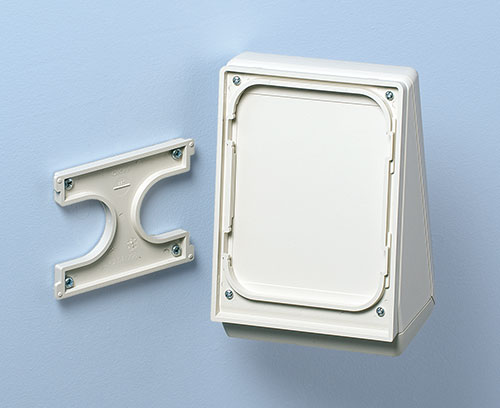

Wall suspension element S Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.

Supply 1 wall suspension element, 1 adapter with assembly kit

Close

B4154307

Wall suspension element S
product added to your basket
off-white RAL 9002
B4156307 Wall suspension element M

B4156307

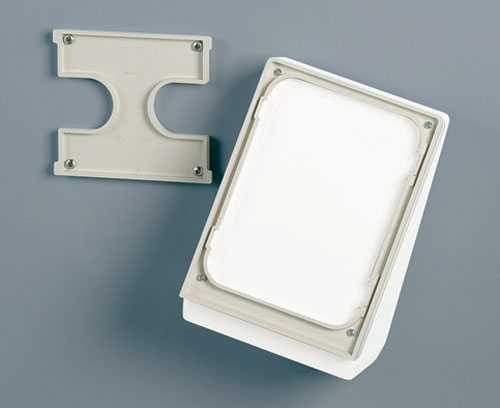

Wall suspension element M Covered wall-fixing. Having a functional and an optically elegant design, the wall-suspension kit offers a sophisticated appearance. Two part construction. The adapter will be fixed to the case and then locked onto the wall-holder.

Supply 1 wall suspension element, 1 adapter with assembly kit

Close

B4156307

Wall suspension element M
product added to your basket
off-white RAL 9002

Customizing options for Unitec

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
