Top-Knobs

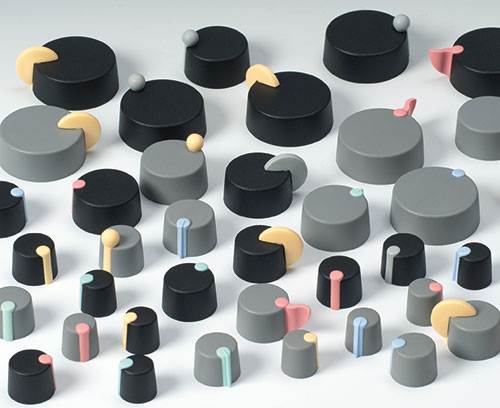

Uniquely modern tuning knobs

Our TOP-KNOBS are unique in design and are thus the ideal solution for users looking for that special something. Individual marking element define the function of the tuning knob and give your equipment a modern, contemporary appearance.

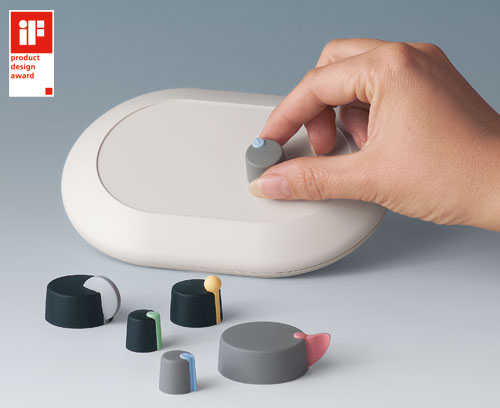

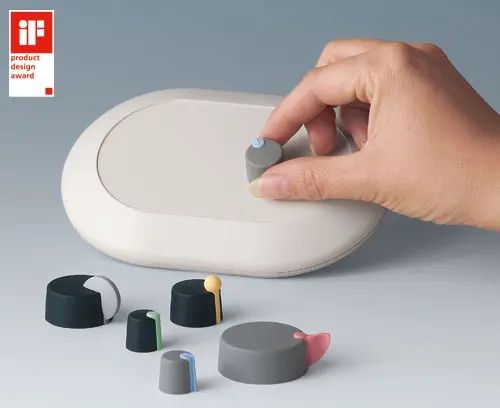

  • aesthetically pleasing knob design *** iF product design award ***

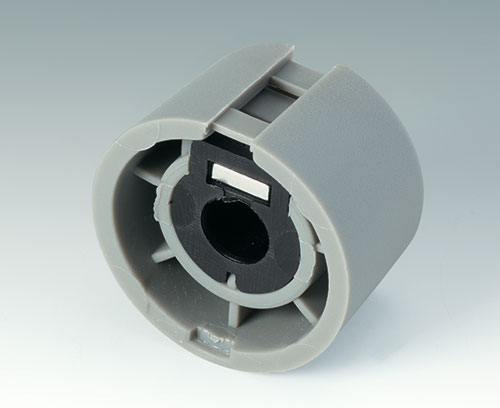

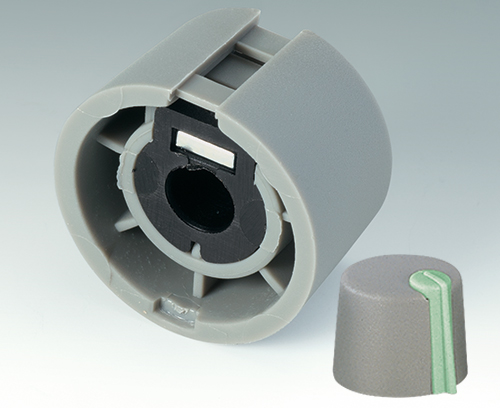

  • lateral fixing screw  for axis corresponding to DIN 41591 or for flattened ends

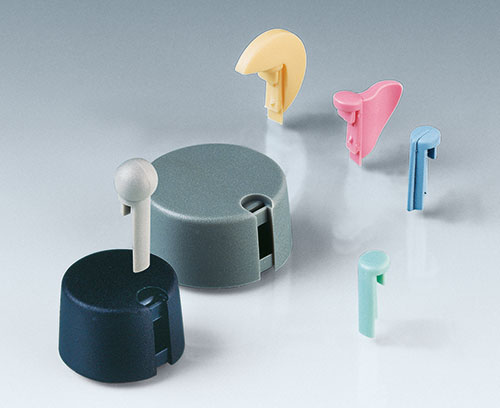

  • individual, functional marking elements, e.g. for fine calibration, clip into the sides and hide the lateral fixing screw
  • the fixing technique rules out any possibility of contact with live parts

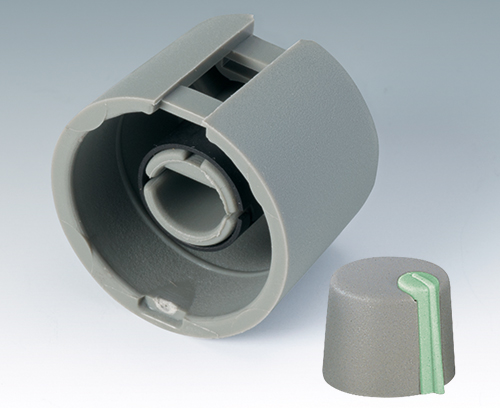

  • recessed underside to allow for external potentiometer fixing nuts
  • modern color combinations

knob sizes  boreholes
ø 16 mm  4 mm, 6 mm, 6/4.6 mm
ø 20, 24, 31, 40 mm  4 mm, 6 mm, 1/4", 6/4.6 mm

Designer Statement

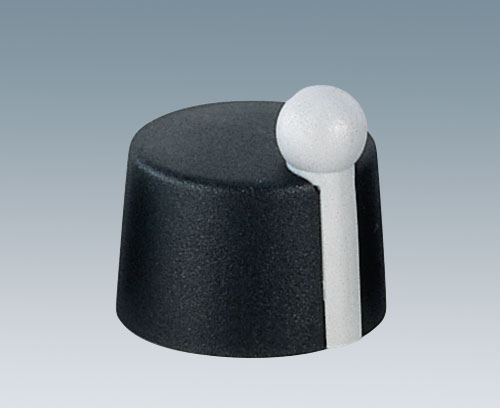

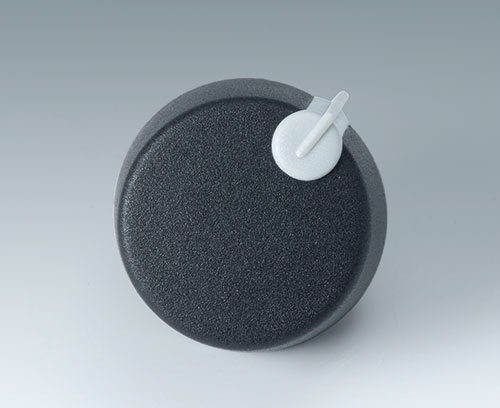

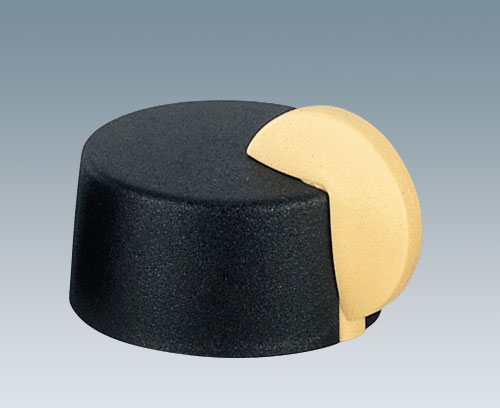

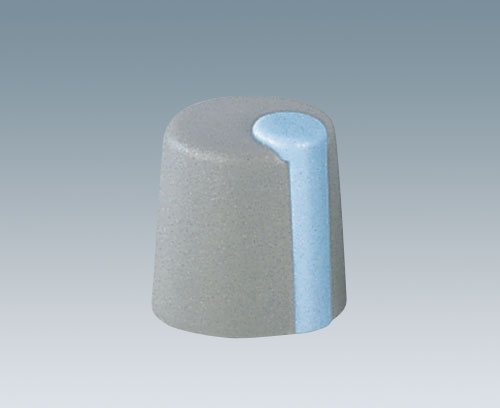

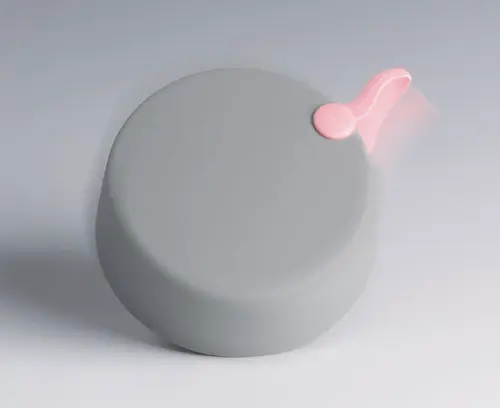

"What looks like a play on shapes and colors in TOP-KNOBS is the result of an extraordinary design idea: The colored pins in the design variations Wing, Arrow, Disk, Globe and Pin cover the side screw in the knob body, with which the knobs are secured on the shaft. In addition to the attractive appearance, hygiene and labelling, a higher electrical safety level is also achieved. The many applications in which the award-winning knobs are used show that these design options are in demand. When do you want to fly the flag?"
Martin Nußberger, polyform Industrie Design

Generate PDF
  • Video
  • Application Examples

Application fields

For rotary potentiometers with shaft ends corresponding to DIN 41591 or with flattened ends ø 6/4.6 mm.

  • Measuring and control technology
  • Medical and wellness devices
  • Laboratory equipment
  • Heating and air conditioning
  • Communication equipment
  • Building management
  • Select Versions
  • Accessories
  • View Customizing Options

Select which version/size you want below or browse full product list

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6207009

Round nut M7 x 0.75
product added to your basket
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6210009

Round nut M10 x 0.75
product added to your basket
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6295009

Round nut 3/8"-32G
product added to your basket

Customizing options for Top-Knobs

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
