A9109121 Front / rear panel V, O 155
Scroll

A9109121

Front / rear panel V, O 155

Front panel for SHELL-TYPE CASE V and O. For case A940834.

Supply

1 front panel

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9109121

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customizing Options

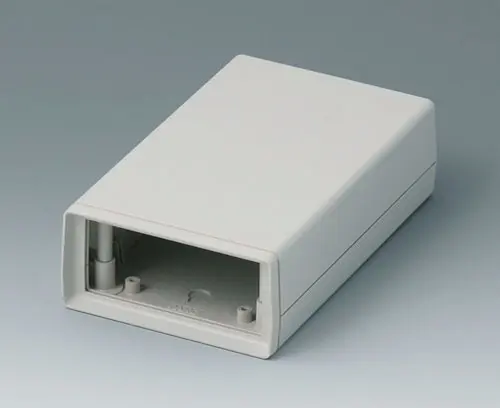

A9408340 SHELL-TYPE CASES O 155, Vers. I

A9408340

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408340

SHELL-TYPE CASES O 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.77″
A9408343 SHELL-TYPE CASES V 155, Vers. I

A9408343

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408343

SHELL-TYPE CASES V 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.77″
A9408346 SHELL-TYPE CASES V 155, Vers. IV

A9408346

SHELL-TYPE CASES V 155, Vers. IV Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408346

SHELL-TYPE CASES V 155, Vers. IV
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.77″
A9408648 SHELL-TYPE CASES V 155, Vers. V

A9408648

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Close

A9408648

SHELL-TYPE CASES V 155, Vers. V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.74″x6.22″x1.77″

Customizing options for A9109121

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminum
Color
matt anodized
Standards
RoHS compliant
REACH compliant
Width
3.224″
81.9 mm
Height
1.402″
35.6 mm
Thickness
0.039″
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7.7 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
