A9408648 SHELL-TYPE CASES V 155, Vers. V
Scroll

A9408648

SHELL-TYPE CASES V 155, Vers. V

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply

1 top and base part, battery compartment lid, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9408648

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory to complete

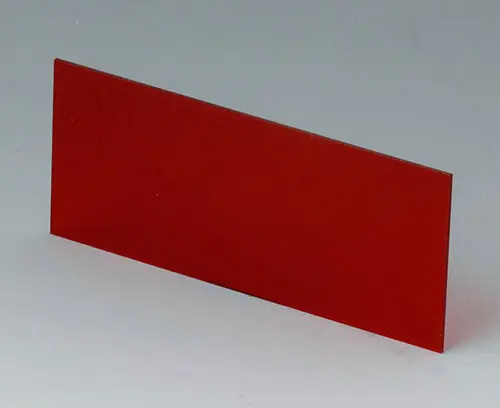

A9108123 Front / rear panel V, O 155

A9108123

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940834.

Supply 1 front panel

Close

A9108123

Front / rear panel V, O 155
product added to your basket
Acrylic glass
red transparent
3.22″x1.40″x0.04″

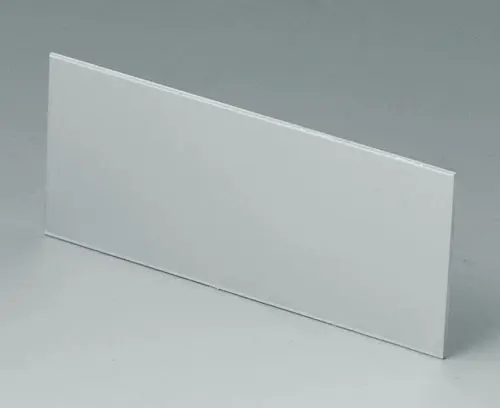

A9109121 Front / rear panel V, O 155

A9109121

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940834.

Supply 1 front panel

Close

A9109121

Front / rear panel V, O 155
product added to your basket
Aluminum
matt anodized
3.22″x1.40″x0.04″

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V

A9160003

Plug-in contact, 1 x 9 V Version: Lateral cable exit. Cable length approx. 3.937". Diameter of contacts = 0.224"/0.209".
Application: for a 9 V flat battery.

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V
product added to your basket
A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Close

A9190013

Set of battery clips, 4 x AA
product added to your basket
Steel
nickel-plated

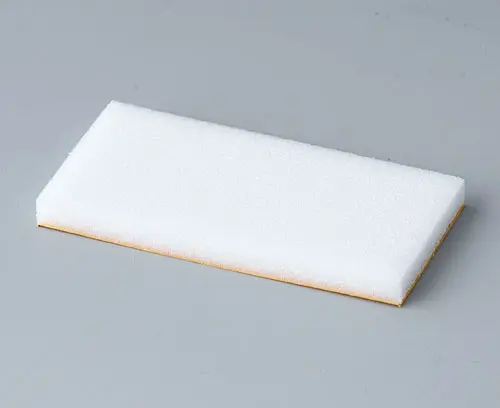

A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Close

A9250250

Battery spacer
product added to your basket
PE foam
1.97″x0.98″x0.16″

Accessory "protection"

A9108120 Contact-strips V, O, G 155

A9108120

Contact-strips V, O, G 155 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Close

A9108120

Contact-strips V, O, G 155
product added to your basket
Aluminum

Accessory "carrying"

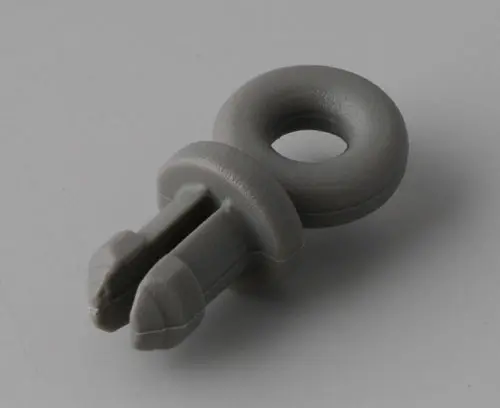

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 0.098", max. wall thickness 0.157", location hole ø 0.197" required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your basket
PA 6
volcano

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket

Accessory

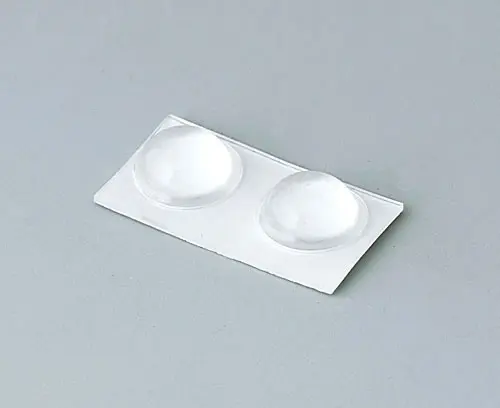

A9210290 Anti-slide feet 0.374" x 0.150"

A9210290

Anti-slide feet 0.374" x 0.150" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9210290

Anti-slide feet 0.374" x 0.150"
product added to your basket
transparent

Customizing options for A9408648

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
3.740″
95 mm
Depth
6.220″
158 mm
Height
1.772″
45 mm
PCB length, base
3.268″
83 mm
PCB width, base
3.031″
77 mm
PCB length, top
5.591″
142 mm
PCB width, top
3.031″
77 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
159 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
