C6013221 SMART-BOX WIDTH 5.118
Scroll

C6013221

SMART-BOX WIDTH 5.118"

Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply

1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for C6013221

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customizing Options

Accessory "protection"

C2306917 Pressure equalization element M6x0.030"

C2306917

Pressure equalization element M6x0.030" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2306917

Pressure equalization element M6x0.030"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2310917 Pressure equalization element M10x0.039"

C2310917

Pressure equalization element M10x0.039" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2310917

Pressure equalization element M10x0.039"
product added to your basket
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2316147

C2316147

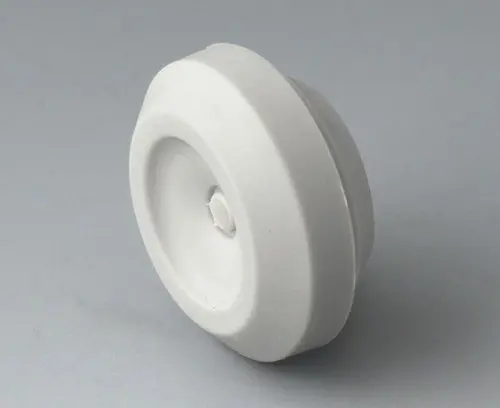

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.020" - 0.118" and for cable diameters from 0.197" - 0.394". Operating temperatures from -40°C to +100°C. Borehole ø 0.650".

Supply 1 cable grommet

Close

C2316147

Cable grommet
product added to your basket
TPE
light gray RAL 7035
IP 67
C2320137 Cable grommet

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.039" - 0.157" and for cable diameters from 0.315" - 0.512". Operating temperatures from -40°C to +100°C. Borehole ø 0.807".

Supply 1 cable grommet

Close

C2320137

Cable grommet
product added to your basket
EPDM
light gray RAL 7035
IP 67
C2320147

C2320147

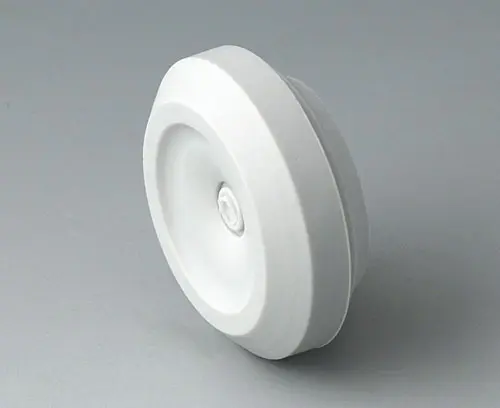

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.020" - 0.118" and for cable diameters from 0.236" - 0.512". Operating temperatures from -40°C to +100°C. Borehole ø 0.807".

Supply 1 cable grommet

Close

C2320147

Cable grommet
product added to your basket
TPE
light gray RAL 7035
IP 67
C6100006 Security plug

C6100006

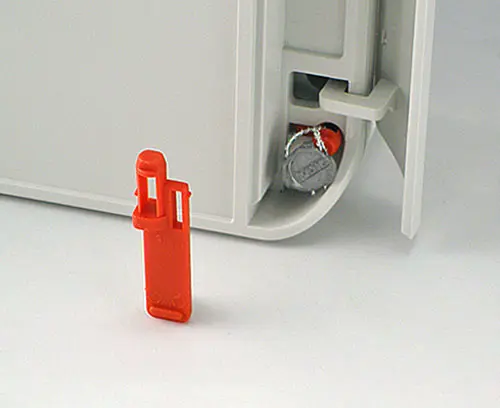

Security plug For use with lead tags.

Supply 1 plug

Close

C6100006

Security plug
product added to your basket
PA 6
red
C6100016 Set of security

C6100016

Set of security For use with lead tags.

Supply 2 plugs

Close

C6100016

Set of security
product added to your basket
PA 6
red

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your basket
A0308031 Self-tapping screws 0.118" x 0.315" (PZ1)

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1)
product added to your basket
A0308132 Self-tapping screw 0.118" x 0.315" (T10)

A0308132

Self-tapping screw 0.118" x 0.315" (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 0.118" x 0.315" (T10)
product added to your basket
Stainless steel

Accessory

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Close

C2299018

Case feet
product added to your basket
TPE (UL 94 HB)

Customizing options for C6013221

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 66
Color
light gray RAL 7035
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
8.661″
220 mm
Width
5.118″
130 mm
Height
2.362″
60 mm
PCB length, base
7.126″
181 mm
PCB width, base
4.705″
119.5 mm
PCB length, top
7.008″
178 mm
PCB width, top
4.685″
119 mm
Keypad length
6.882″
174.8 mm
Keypad width
4.787″
121.6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
370 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
